TE Connectivity 2-1734248-2

mpn2-1734248-2
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

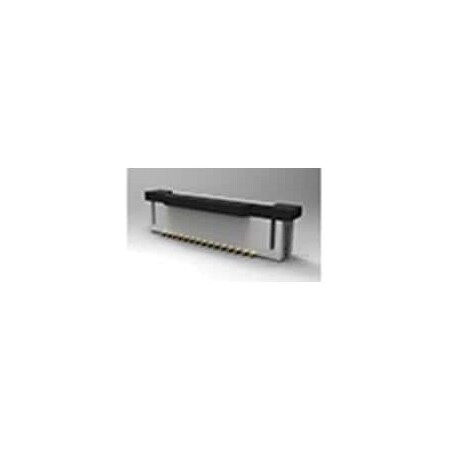

T-E Connectivity 2-1734248-2 (1000 pcs) 1.0 FPC, ZIP V/T, SMT, 22P

T-E Connectivity 2-1734248-2 (1000 pcs) 1.0 FPC, ZIP V/T, SMT, 22P

zoom

Brand: TE Connectivity
PartNumber: 2-1734248-2
Manufacturer: T-E Connectivity
Label: T-E Connectivity

Attributes

Key	Value
Actuator Color	Black
Actuator Material	Polyamide (PA9T), Nylon.
Application	Signal
Base Product Number	1734248
Cable End Type	Tapered
Category	Connectors, Interconnec.
Color	Black
Connection Material	Phosphor Bronze
Connector Terminates To	Flexible Printed Circui.
Connector Type	Receptacle
Connector/Contact Type	Contacts, Vertical - 1 .
Contact Finish	Gold Plated, Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Contact Plating Thickne.	0.025 ?m
Contact Type	Socket
Current Rating	1 A
Current Rating (Amps)	1A
Description	CONN FPC VERT 22POS 1MM.
Detailed Description	22 Position FPC Connect.
Digi-Key Part Number	A101419TR-ND - Tape & R.
Features	Zero Insertion Force (Z.
FFC, FCB Thickness	0.30mm
Flat Flex Type	FPC
Height	7.7 mm
Height Above Board	0.217" (5.50mm)
Hole Center to Center	1 mm
Housing Color	Black
Housing Material	Polyamide (PA9T), Nylon.
Item	Connector
Length	29.4 mm
Locking Feature	Slide Lock
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	2-1734248-2
Manufacturer Standard L.	15 Weeks
Material	Polyamide
Material Flammability R.	UL94 V-0
Mating Cycles	20
Max. Temp.	85?C
Max. Voltage	125V DC
Mfr	TE Connectivity AMP Con.
Mounting Type	Surface Mount
Number of Contacts	22
Number of Positions	22
Number of Rows	1
Operating Temperature	-20?C ~ 85?C
Package	Tape & Reel (TR)
Package Quantity	1
Pitch	0.039" (1.00mm)
Product Status	Active
Series	-, FPC
Terminal Finish	Gold Plated
Terminal Type	Surface Mount
Termination	Solder
Voltage Rating	125V
Width	0.181 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	95Y9576	1.57	1000	63		AMP - TE CONNECTIVITY		1.57 @ 1000
	Onlinecomponents.com	2-1734248-2	3.57	1	30000		TE Connectivity / AMP Brand		3.57 @ 1
	Digi-Key	2272381	14.916	1	5005		TE Connectivity AMP Connectors		14.916 @ 1
	AmazonTP	B07KWGZ7KR	48.66	1	63	1	TE Connectivity / AMP Brand		48.66 @ 1
	AmazonSC	B07KWGZ7KR	52.87	1	63		TE Connectivity / AMP		52.87 @ 1
	Zoro	G101041381	1250.0	1	63		Te Connectivity		1250.0 @ 1
