- mpnDJ2C2P18M
- brandname: US Motors
- manufacturername: US Motors

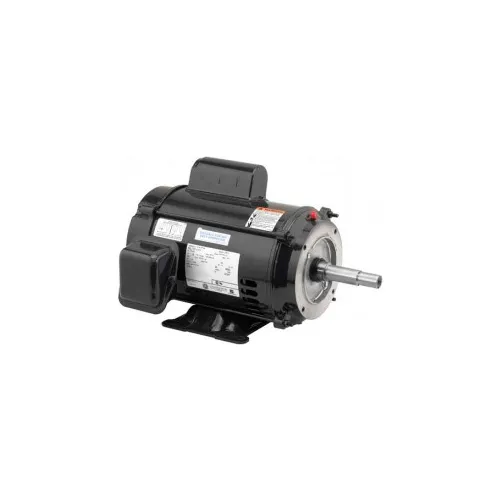

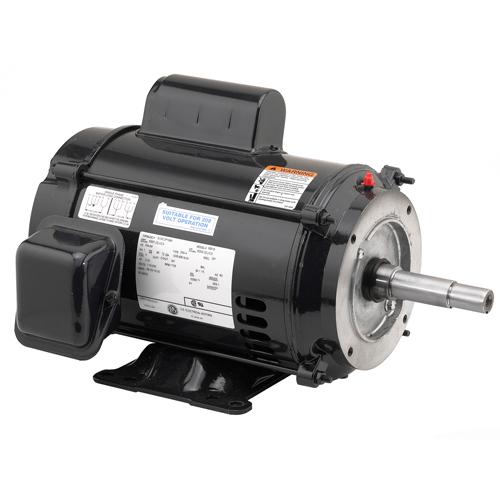

U.S. Motors US Motors Pump, 2 HP, 1-Phase, 1730 RPM Motor, DJ2C2P18M
- Brand: U.S. Motors
- PartNumber: DJ2C2P18M
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 23.2/11.6 |
| Bearings | Ball |
| Catalog Page | N/A |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 77.00 |
| Family Series | US Motors Motors |
| Finish | Unfinished |
| FL Amps | 23.2/11.6 |
| Frame | 182JM |
| Frequency | 60 Hz |
| Full Load Amps | 23.2/11.6 |
| Gross Weight | 70 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| Inverter Rated | No |
| Item | Close-Coupled Pump Motor |
| Item Number | DJ2C2P18M |
| Item? | 55MM59 |
| Kilowatts | 1.5 kW |
| Length Less Shaft | 13-1/4 in, 13 1/4 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | BB14 |
| Manufacturer Part Number | DJ2C2P18M |
| Max. Ambient Temp. | 40 Degrees C, 40 ?C |
| Maximum Ambient Tempera. | 40? C |
| Mfr. Model? | DJ2C2P18M |
| Model Number | BB14 |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | None |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount |
| Nameplate RPM | 1,800 |
| NEMA Frame | 182JM |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 17 1/2 in, 17-1/2 in |
| Part Number | DJ2C2P18M |
| Phase | 1, Single |
| Product Type | Pump, Capacitor Run |
| RPM | 1730, 1,730 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 4 1/4 in, 4-1/4 in |
| Ship Weight | 70 lbs. |
| Speed (RPM) | 1730 |
| Standards | CSA (191252); UL (E5148. |
| UNSPSC | 26101602 |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 110-120V, 230V, 115/230. |
| Voltage (AC) | 115 VAC, 230 VAC |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115, 230 |
| Weight | 70 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1938370 | 606.0 | 1 | In Stock | | U.S. Motors | 70.0 | 606.0 @ 1 |
 | Global Industrial | WBB465503 | 607.0 | 1 | In Stock | | US Motors | | 607.0 @ 1 |
| Applied Industrial | 101939830 | 617.24 | 1 | In Stock | | U.S. Motors | | 617.24 @ 1 |
 | emotorpro.com | DJ2C2P18M | 627.06 | 1 | In Stock | | U.S. Motors | 70.0 | 627.06 @ 1 |
 | motorsandcontrol.com | DJ2C2P18M | 639.9 | 1 | In Stock | | US Motors (Nidec) | 77.0 | 639.9 @ 1 |
 | National Supply Network | B465503 | 676.59 | 1 | In Stock | | US MOTORS | | 676.59 @ 1 |
 | Galco | DJ2C2P18M-USM | 724.12 | 1 | In Stock | | US Motors | 70.0 | 724.12 @ 1 |
| Grainger | 55MM59 | 910.3 | 1 | In Stock | | U.S. MOTORS | 70.0 | 910.3 @ 1 |
| motionindustries.com | 04385005 | 924.57 | 1 | In Stock | | US Motors (Nidec) | | 924.57 @ 1 |
