- mpnEE607
- brandname: US Motors
- manufacturername: US Motors

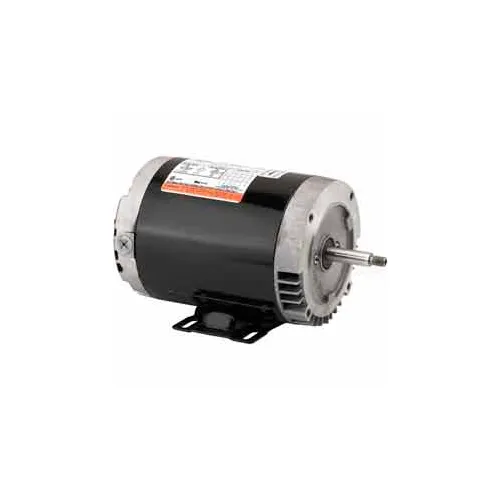

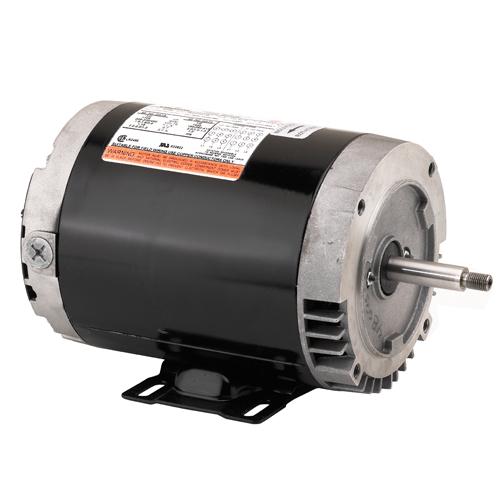

U.S. Motors US Motors Pump, 1 1/2 HP, 3-Phase, 3450 RPM Motor, EE607
- Brand: US Motors
- PartNumber: EE607
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 5.0-5.0/2.5 |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 18.70 |
| Family Series | US Motors Motors |
| FL Amps | 5.0-5.0/2.5 |
| Frame | 56J |
| Frequency | 60 Hz |
| Gross Weight | 27.5 lbs |
| Hertz | 50, 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 50/60 |
| Insulation Class | B |
| Item | Motor,1-1/2HP,3450,2850. |
| Item Number | EE607 |
| Kilowatts | 1.1 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063TLH4853013J |
| Manufacturer Part Number | EE607 |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P063TLH4853013J |
| Mounting | Face, Footless |
| Mounting Type | C-Face |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | EE607 |
| Phase | 3 |
| Product Type | Pump, Three Phase |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| Service Factor | 1.30 |
| Ship Weight | 17 lbs. |
| Speed (RPM) | 3450 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
