- mpnEJM302B
- brandname: US Motors
- manufacturername: US Motors

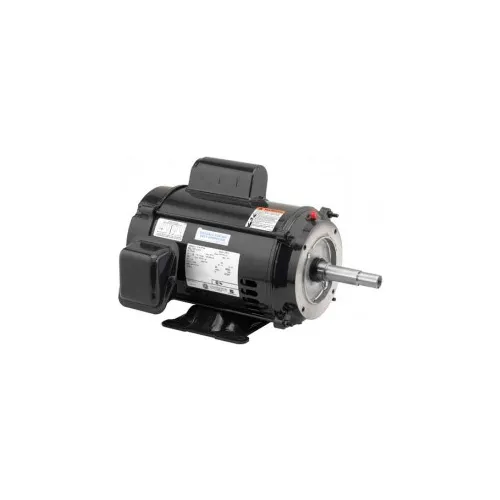

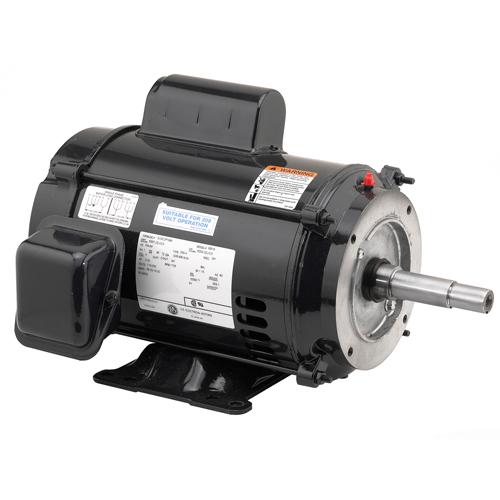

U.S. Motors US Motors Pump, 3 HP, 1-Phase, 3450 RPM Motor, EJM302B
- Brand: US Motors
- PartNumber: EJM302B
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| AMP | 13.2, 14 |
| Amps | 14.0-13.2 |
| Bearing Protection | Locked Shaft |
| Bearings | Ball |
| Body Dia. | 6.5 in |
| Bolt Circle Dia. | 5 7/8 in |
| Capacitor | 35MFD/370VAC |
| CE Approved | No |
| Coating | Painted |
| Color Finish | Grey |
| Composition | Rolled Steel |
| Condensing | No |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| CSA Certified | Yes |
| Diameter | 10 in |
| Drive End Flange Type | C-Face |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 44.00 |
| Family Series | US Motors Motors |
| Fan Speeds | 1 |
| FL Amps | 14.0-13.2 |
| Frame | 182JM |
| Frequency | 60 Hz |
| Gross Weight | 32 lbs |
| Height | 12 in, 9 1/2 in |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60 |
| Indoor Outdoor | Indoor/Outdoor |
| Ins. Class | B |
| Insulation Class | B |
| Item | Motor |
| Item Number | EJM302B |
| Kilowatts | 2.2 kW |
| Length | 20-1/2 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063CRD1468014J |
| Manufacturer Part Number | EJM302B |
| Material | Steel |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063CRD1468014J |
| Motor Bearings | Ball |
| Motor Enclosure | Open Drip Proof (ODP) |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face, Rigid |
| NEMA Frame | 182JM |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Origin | Global |
| Overall Box Size | 20-1/2 in x 11-1/2 in x. |
| Overload Protection | None |
| Part Number | EJM302B |
| Phase | 1, Single Phase |
| Power Source | Electric |
| Product Type | Pump, Motor, Capacitor . |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| RPM Range | 1400 and Above |
| Service Factor | 1.15 |
| Shaft Length | 4-1/4 in |
| Shaft Size | 7/8 in |
| Ship Weight | 40 lbs. |
| Speed (RPM) | 3450 |
| Temperature Range | -29 to 40 Deg C |
| Temperature Rating | 40 |
| Type | USMEJM302B |
| UL Listed | No |
| Usable @ 208V | Yes |
| Voltage | 208V, 230V |
| Voltage (AC) | 208-230 VAC |
| Volts | 208, 230, 208-230V |
| Weight | 32 lb, 40 |
| Width | 11-1/2 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G6010655 | 473.99 | 1 | In Stock | | U.S. Motors | 40.0 | 473.99 @ 1 |
 | Global Industrial | WBB466654 | 603.0 | 1 | In Stock | | US Motors | | 603.0 @ 1 |
 | emotorpro.com | EJM302B | 623.54 | 1 | In Stock | | U.S. Motors | 40.0 | 623.54 @ 1 |
 | motorsandcontrol.com | EJM302B | 636.3 | 1 | In Stock | | US Motors (Nidec) | 44.0 | 636.3 @ 1 |
 | National Supply Network | B466654 | 673.29 | 1 | In Stock | | US MOTORS | | 673.29 @ 1 |
 | Galco | EJM302B-USM | 720.05 | 1 | In Stock | | US Motors | 32.0 | 720.05 @ 1 |
| motionindustries.com | 04385444 | 919.37 | 1 | In Stock | | US Motors (Nidec) | | 919.37 @ 1 |
| ferguson.com | 9585275 | 1115.22 | 1 | In Stock | | US Motors | | 1115.22 @ 1 |
