- mpnEJM502B
- brandname: US Motors
- manufacturername: US Motors

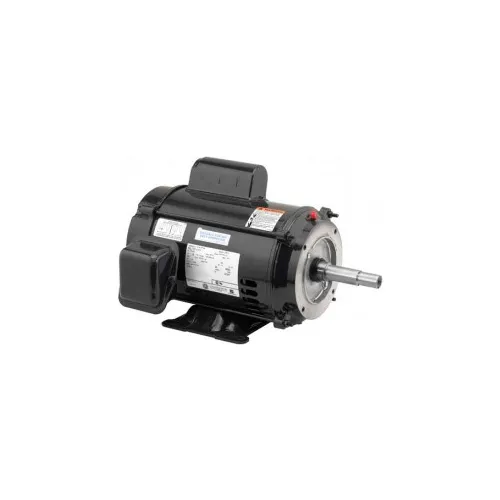

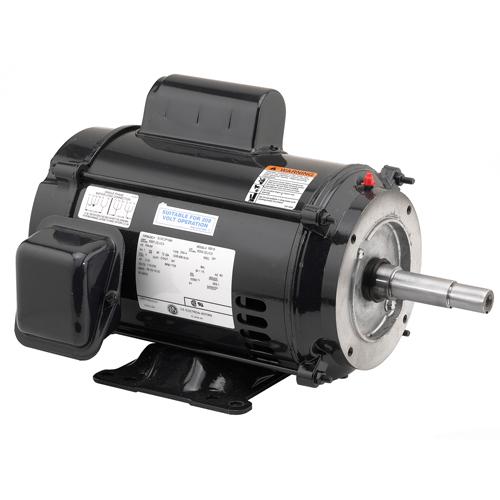

U.S. Motors US Motors Pump, 5 HP, 1-Phase, 3450 RPM Motor, EJM502B
- Brand: US Motors
- PartNumber: EJM502B
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 24.0-23.7 |
| Bearings | Ball |
| Capacitor | 50MFD/370VAC |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 49.50 |
| Family Series | US Motors Motors |
| FL Amps | 24.0-23.7 |
| Frame | 184JM |
| Frequency | 60 Hz |
| Gross Weight | 56.33 lbs |
| Hertz | 60 |
| Horsepower | 5 hp |
| HP | 5 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,5HP,3450RPM,208-2. |
| Item Number | EJM502B |
| Kilowatts | 3.7 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063CSF1492014J |
| Manufacturer Part Number | EJM502B |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063CSF1492014J |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face, Rigid |
| NEMA Frame | 184JM |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | EJM502B |
| Phase | 1 |
| Product Type | Pump, Capacitor Start |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| Service Factor | 1.15 |
| Ship Weight | 45 lbs. |
| Speed (RPM) | 3450 |
| Voltage | 208V, 230V |
| Voltage (AC) | 208-230 VAC |
| Volts | 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G6010883 | 540.84 | 1 | In Stock | | U.S. Motors | 45.0 | 540.84 @ 1 |
 | emotorpro.com | EJM502B | 658.81 | 1 | In Stock | | U.S. Motors | 45.0 | 658.81 @ 1 |
 | motorsandcontrol.com | EJM502B | 672.3 | 1 | In Stock | | US Motors (Nidec) | 49.5 | 672.3 @ 1 |
 | Global Industrial | WBB466655 | 709.0 | 1 | In Stock | | US Motors | | 709.0 @ 1 |
 | National Supply Network | B466655 | 739.37 | 1 | In Stock | | US MOTORS | | 739.37 @ 1 |
 | Galco | EJM502B-USM | 760.78 | 1 | In Stock | | US Motors | 56.33 | 760.78 @ 1 |
| motionindustries.com | 04385445 | 971.38 | 1 | In Stock | | US Motors (Nidec) | | 971.38 @ 1 |
