- mpnEU01
- brandname: US Motors
- manufacturername: US Motors

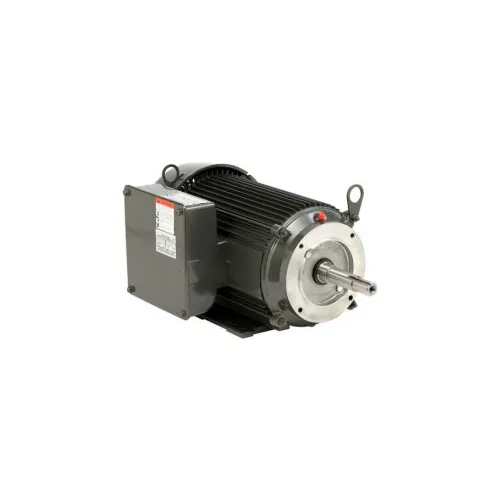

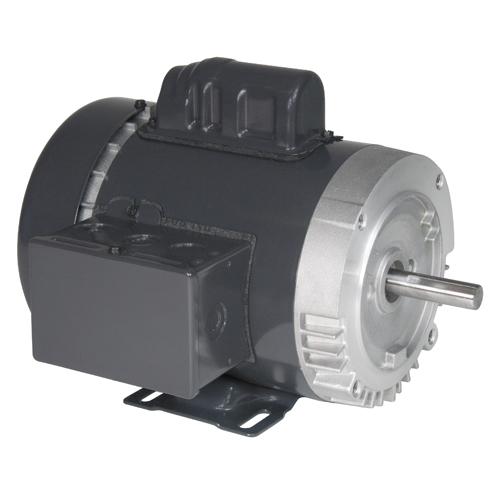

US Motors/Emerson EU01 Eu01 1/3hp 1ph Tefc Motor
- PartNumber: EU01
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 6.6/3.2-3.3 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 25.30 |
| Family Series | US Motors Motors |
| FL Amps | 6.6/3.2-3.3 |
| Frame | 56J |
| Frequency | 60 Hz |
| Gross Weight | 17 lbs |
| Hertz | 50, 60 |
| Horsepower | 1/3 hp |
| HP | 1/3, 0.33 |
| Hz | 50/60 |
| Insulation Class | B |
| Item | Motor,1/3HP,3450,2850RP. |
| Item Number | EU01 |
| Kilowatts | 0.3 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063HMP5043013J |
| Manufacturer Part Number | EU01 |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C063HMP5043013J |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | J-Face, Removable Base |
| NEMA Frame | 56J |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | EU01 |
| Phase | 1 |
| Product Type | Pump, Capacitor Start |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| Ship Weight | 23 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| Voltage | 110-120V, 208V, 220V, 2. |
| Voltage (AC) | 110 VAC, 115 VAC, 208-2. |
| Volts | 115, 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0916305 | 284.9 | 1 | In Stock | | U.S. Motors | 23.0 | 284.9 @ 1 |
 | bscsource.com | EU01 | 297.69 | 1 | In Stock | | US Motors | | 297.69 @ 1 |
 | Guardian | 53655742 | 318.17 | 1 | In Stock | | US Motors | | 318.17 @ 1 |
 | motorsandcontrol.com | EU01 | 330.84 | 1 | In Stock | | US Motors (Nidec) | 25.3 | 330.84 @ 1 |
 | emotorpro.com | EU01 | 334.54 | 1 | In Stock | | U.S. Motors | 23.0 | 334.54 @ 1 |
 | Global Industrial | WBB466656 | 335.95 | 1 | In Stock | | US Motors | | 335.95 @ 1 |
 | Galco | EU01-USM | 338.38 | 1 | In Stock | | US Motors | 17.0 | 338.38 @ 1 |
 | National Supply Network | B466656 | 366.1 | 1 | In Stock | | US MOTORS | | 366.1 @ 1 |
| motionindustries.com | 04377214 | 497.67 | 1 | In Stock | | US Motors (Nidec) | | 497.67 @ 1 |
