- mpnFD12AA4P
- brandname: US Motors
- manufacturername: US Motors

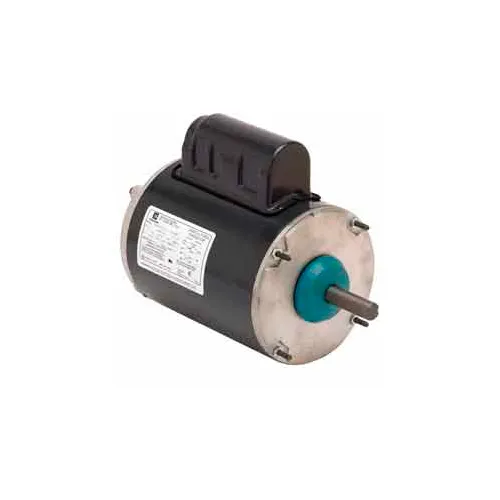

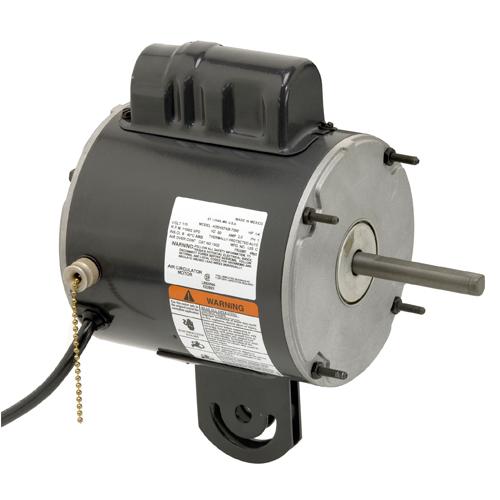

U.S. Motors US Motors Farm Duty, 1/2 HP, 1-Phase, 825 RPM Motor, FD12AA4P
- Brand: U.S. Motors
- PartNumber: FD12AA4P
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 6.4/3.2 |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor | 20MFD/370VAC |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 67% |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 38.50 |
| Family Series | US Motors Motors |
| FL Amps | 6.4/3.2 |
| FL Efficiency | 67 |
| Frame | 56Z |
| Frequency | 60 Hz |
| Gross Weight | 35 lbs |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| Hz | 60 |
| Insulation Class | B |
| Item | Motor,1/2HP,825RPM,115/. |
| Item Number | FD12AA4P |
| Kilowatts | 0.4 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | K063EHT4642025B |
| Manufacturer Part Number | FD12AA4P |
| Maximum Ambient Tempera. | 40? C |
| Model Number | K063EHT4642025B |
| Mounting | Foot Mount, Base |
| Mounting Type | Rigid |
| NEMA Frame | 56Z |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 8 |
| Number of Speeds | 1 |
| Overload Protection | Automatic |
| Part Number | FD12AA4P |
| Phase | 1 |
| Product Type | General Purpose, PSC (P. |
| Rotation | Reversible |
| RPM | 825, 825 RPM |
| Service Factor | 1.00 |
| Ship Weight | 35 lbs. |
| Speed (RPM) | 825 |
| Thermal Protection | Automatic |
| Voltage | 110-120V, 230V |
| Voltage (AC) | 115 VAC, 230 VAC |
| Volts | 115, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0915081 | 394.4 | 1 | In Stock | | U.S. Motors | 35.0 | 394.4 @ 1 |
 | Global Industrial | WBB467327 | 463.95 | 1 | In Stock | | US Motors | | 463.95 @ 1 |
 | emotorpro.com | FD12AA4P | 501.43 | 1 | In Stock | | U.S. Motors | 35.0 | 501.43 @ 1 |
 | National Supply Network | B467327 | 545.83 | 1 | In Stock | | US MOTORS | | 545.83 @ 1 |
 | motorsandcontrol.com | FD12AA4P | 568.93 | 1 | In Stock | | US Motors (Nidec) | 38.5 | 568.93 @ 1 |
 | Galco | FD12AA4P-USM | 582.49 | 1 | In Stock | | US Motors | 35.0 | 582.49 @ 1 |
| motionindustries.com | 02898702 | 856.7 | 1 | In Stock | | US Motors (Nidec) | | 856.7 @ 1 |
