- mpnU7P2G
- brandname: US Motors
- manufacturername: US Motors

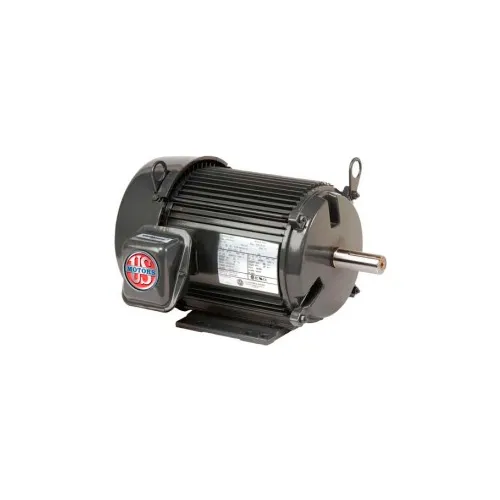

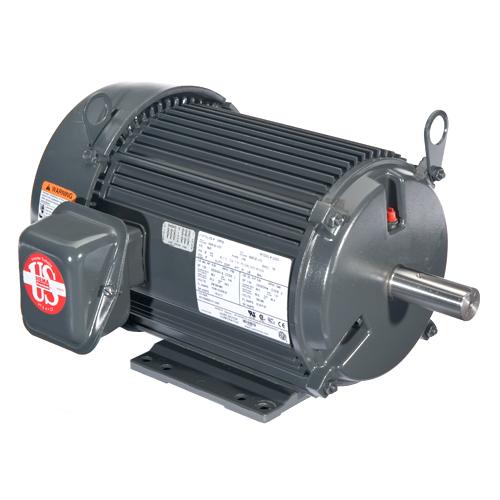

U.S. Motors US Motors Unimount TEFC, 7.5 HP, 3-Phase, 1765 RPM Motor, U7P2G
- Brand: U.S. Motors
- PartNumber: U7P2G
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 7.2 |
| Bearings | Ball |
| Composition | Aluminum |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 91.7% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 126.38 |
| Family Series | US Motors Motors |
| FL Amps | 7.2 |
| FL Efficiency | 91.7 |
| Frame | 213T |
| Frequency | 60 Hz |
| Gross Weight | 114.89 lbs |
| Hertz | 60 |
| Horsepower | 7-1/2 hp |
| HP | 7-1/2, 7.5 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,7 1/2HP,1765rpm,2. |
| Item Number | U7P2G |
| Kilowatts | 5.6 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | AT31 |
| Manufacturer Part Number | U7P2G |
| Maximum Ambient Tempera. | 40? C |
| Model Number | AT31 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Frame | 213T |
| Net Weight | 0 lbs |
| Nominal Voltage | 575 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | U7P2G |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,765 RPM, 1765 |
| Service Factor | 1.25 |
| Ship Weight | 115 lbs. |
| Speed (RPM) | 1765 |
| Voltage | 575V |
| Voltage (AC) | 575 VAC |
| Volts | 575 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G7724513 | 728.0 | 1 | In Stock | | U.S. Motors | 114.89 | 728.0 @ 1 |
 | Global Industrial | WBB467686 | 782.0 | 1 | In Stock | 17 | US Motors | | 782.0 @ 1 |
 | emotorpro.com | U7P2G | 849.6 | 1 | In Stock | | U.S. Motors | 115.0 | 849.6 @ 1 |
 | National Supply Network | B467686 | 870.19 | 1 | In Stock | | US MOTORS | | 870.19 @ 1 |
 | motorsandcontrol.com | U7P2G | 895.56 | 1 | In Stock | | US Motors (Nidec) | 126.38 | 895.56 @ 1 |
 | Galco | U7P2G-USM | 895.57 | 1 | In Stock | | US Motors | 114.89 | 895.57 @ 1 |
| motionindustries.com | 02899386 | 1461.69 | 1 | In Stock | | US Motors (Nidec) | | 1461.69 @ 1 |
