- mpnUJ3C1P18M
- brandname: US Motors
- manufacturername: US Motors

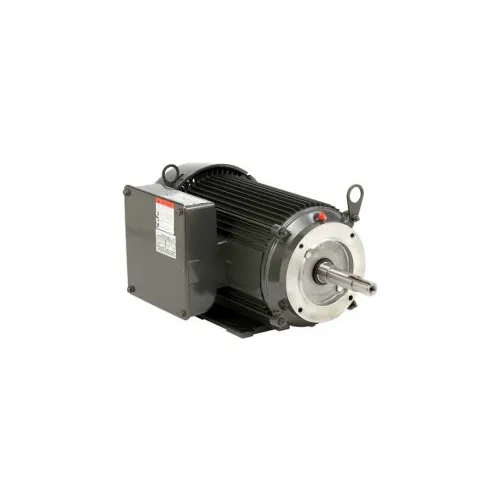

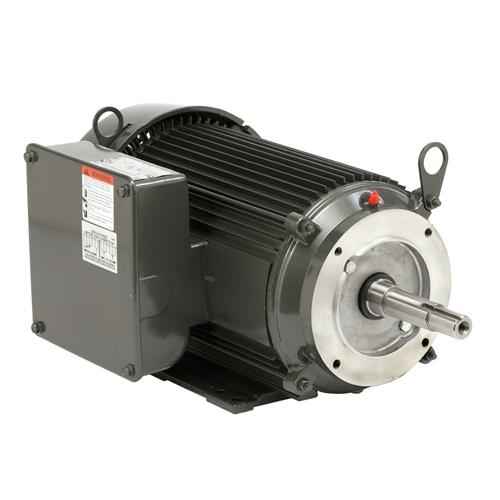

U.S. Motors US Motors Pump, 3 HP, 1-Phase, 3500 RPM Motor, UJ3C1P18M
- Brand: U.S. Motors
- PartNumber: UJ3C1P18M
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| AMP | 16.0, 32 |
| Amps | 32.0/16.0 |
| Bearings | Ball |
| CE Approved | No |
| Coating | Painted |
| Color Finish | Grey |
| Composition | Aluminum |
| Condensing | No |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| CSA Certified | Yes |
| Diameter | 10 in |
| Drive End Flange Type | C-Face |
| Efficiency | 71.3% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 90.20 |
| Family Series | US Motors Motors |
| Fan Speeds | 1 |
| FL Amps | 32.0/16.0 |
| FL Efficiency | 71.3 |
| Frame | 184JM |
| Frequency | 60 Hz |
| Gross Weight | 82 lbs |
| Height | 15 in |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60 |
| Indoor Outdoor | Indoor/Outdoor |
| Insulation Class | F |
| Item | Motor,1PH,3HP,3600,115/. |
| Item Number | UJ3C1P18M |
| Length | 26-1/2 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | G68802 |
| Manufacturer Part Number | UJ3C1P18M |
| Material | Cast Aluminum |
| Maximum Ambient Tempera. | 40? C |
| Model Number | G68802 |
| Motor Enclosure | Totally Enclosed |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount |
| NEMA Frame | 184JM |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Origin | Global |
| Overall Box Size | 26-1/2 in x 16-1/2 in x. |
| Part Number | UJ3C1P18M |
| Phase | 1, Single Phase |
| Power Source | Electric |
| Product Type | Pump, Motor, Capacitor . |
| RPM | 3500, 3,500 RPM |
| RPM Range | 1400 and Above |
| Service Factor | 1.15 |
| Shaft Length | 4-1/4 in |
| Shaft Size | 7/8 in |
| Ship Weight | 82 lbs. |
| Speed (RPM) | 3500 |
| Temperature Range | -29 to 40 Deg C |
| Temperature Rating | 40 |
| Type | USMUJ3C1P18M |
| UL Listed | No |
| Voltage | 110-120V, 230V |
| Voltage (AC) | 115 VAC, 230 VAC |
| Volts | 115, 230, 115/230V |
| Weight | 82 |
| Width | 16-1/2 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0399750 | 652.0 | 1 | In Stock | | U.S. Motors | 82.0 | 652.0 @ 1 |
 | emotorpro.com | UJ3C1P18M | 783.33 | 1 | In Stock | | U.S. Motors | 82.0 | 783.33 @ 1 |
 | Global Industrial | WBB466741 | 805.0 | 1 | In Stock | | US Motors | | 805.0 @ 1 |
 | National Supply Network | B466741 | 859.19 | 1 | In Stock | | US MOTORS | | 859.19 @ 1 |
 | Galco | UJ3C1P18M-USM | 865.66 | 1 | In Stock | | US Motors | 82.0 | 865.66 @ 1 |
 | motorsandcontrol.com | UJ3C1P18M | 865.66 | 1 | In Stock | | US Motors (Nidec) | 90.2 | 865.66 @ 1 |
| motionindustries.com | 02899416 | 1404.98 | 1 | In Stock | | US Motors (Nidec) | | 1404.98 @ 1 |
| ferguson.com | 9583870 | 1571.55 | 1 | In Stock | | US Motors | | 1571.55 @ 1 |
