TE Connectivity MPG106D

mpnMPG-106D
brandname: ALCOSWITCH - TE CONNECTIVITY
manufacturername: ALCOSWITCH - TE CONNECTIVITY

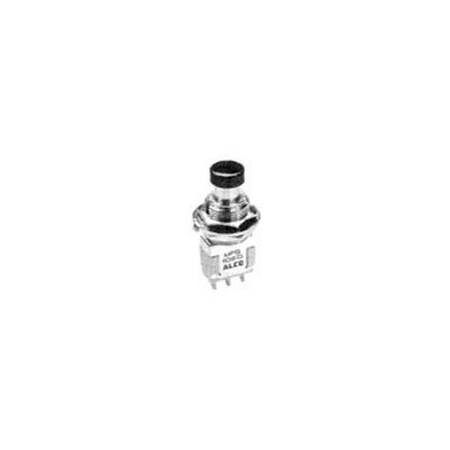

TE CONNECTIVITY / ALCOSWITCH MPG-106D PUSHBUTTON SWITCH

Brand: TE Connectivity
PartNumber: MPG106D
Model: MPG-106D
PackageQuantity: 1
Binding: Electronics
Manufacturer: T-E Connectivity
Label: T-E Connectivity

Attributes

Key	Value
Actuator Color	Black
Actuator Length	8 mm [ .315 in ]
Actuator Material	Phenol Resin
Actuator Profile	Extended
Actuator Style	Cap - Supplied
Actuator Type	Round, Button, Round
Alternate Mfr Part Numb.	4-1437567-9
Alternate Part No.	506-MPG106D
Brand	TE Connectivity / Alcos.
Bushing Style	Threaded
Bushing Thread Size	15/32
Cap Diameter	8.99 mm [ .354 in ]
Cap Height	3.5 mm [ .138 in ]
Case Material	Thermoset
Circuit	SPDT
Color - Actuator/Cap	Black
Configuration (Pole-Thr.	Single Pole - Double Th.
Contact Base Material	Silver Clad Copper
Contact Current Rating	6
Contact Form	SPDT
Contact Plating	Silver Clad with Gold F.
Current Rating	6 A
Current Rating (Amps)	6A (AC), 4A (DC)
Dielectric Strength	1000 VAC
Dimensions, Cutout, Inc.	11.8 Dia. mm
Dust Proof	No
Electrical Life	50,000 Cycles
Features	-
Housing Material	Thermoset
Illuminated	No
Illumination Type, Color	-
Illumination Voltage (N.	-
Ingress Protection	-
Low Profile	No
Manufacturer	TE Connectivity
Manufacturer Part No.	MPG106D
Mechanical Life	-
Mfr	TE Connectivity ALCOSWI.
Mounting Hole Size	0.468 in
Mounting Style	Panel
Mounting Type	Panel Mount, Panel Moun.
Number of Actuators	Single
Number of Poles	1
Number of Positions	2
Operating Function	Push-On/Push-Off
Operating Temperature	-20?C ~ 80?C
Operation	On On
Panel Cutout Dimensions	Circular - 11.80mm Dia
Part # Aliases	4-1437567-9
Part Status	Active
Process Sealed	No
Product Category	Pushbutton Switches
Product Type	Switch
Screw	15/32-32 UNS-2A
Series	MPG, MP Series
Snap Action	Without
Support Bracket	Without
Switch Contact Plating .	Silver Clad with Gold F.
Switch Function	ON - OFF, On-On
Switch Type	Pushbutton
Tactile	No
Temperature Rating	Standard
Terminal Seal	Molded
Termination	Solder Lugs
Termination Style	Solder Lug
Termination Type	Wire Lugs
Thread Size	15/32-32 UNS-2A
Type	Push Button, Standard
Voltage Rating	125, 250, 28, 125 V
Voltage Rating (VAC)	125, 250
Voltage Rating (VDC)	28
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V
Voltage Rating AC	250 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Mouser	506-MPG106D	15.34	1	174		TE Connectivity	15.34 @ 1
Waldom	TE CONNECTIVITY ALCOSWITCH MPG106D	15.69	4	31		TE CONNECTIVITY / ALCOSWITCH	15.69 @ 4
Digi-Key	450-1126-ND	16.4	1	In Stock		TE Connectivity ALCOSWITCH Switches	16.4 @ 1
Onlinecomponents.com	4-1437567-9	18.15	2	438		TE Connectivity	18.15 @ 2
Newark	41AJ9562	18.45	5	In Stock		ALCOSWITCH - TE CONNECTIVITY	18.45 @ 1
swatee.com	MPG106D	18.94	1	15		TE Connectivity	18.94 @ 1
AmazonTP	B00HKI7062	20.18	1	In Stock	2	T-E Connectivity	20.18 @ 1
RS Delivers	783-1066	20.304	1	57		TE Connectivity	20.304 @ 1
TE Connectivity	4-1437567-9	21.749	1	1884		TE Connectivity (TE)	21.749 @ 1
us.rs-online.com	70156056	23.48	1	58		TE Connectivity	23.48 @ 1
Zoro	G000967997	66.75	1	In Stock		Alcoswitch	66.75 @ 1
