Dwyer TE-IBG-F0644-14

B007ICXS6Q

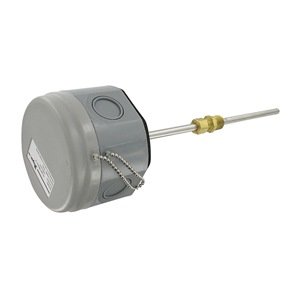

Immersion Temp Probe, 20K Ohm, 6 in L

Immersion Temp Probe, 20K Ohm, 6 in Lzoom

Attributes

Key Value
Accuracy+/-0.28 Degrees F at 32.
Cable Length4 ft
Connector TypeCustom
Country of Origin (subj.China
Fitting TypeCompression
For AirYes
For ApplicationAHU Monitoring, Buildin.
For GasesYes
For Liquids and GelsYes
For SolidsNo
For SurfacesNo
Head Connection0.875 Conduit Knock Out
Head Material304 Stainless Steel
IncludesHousing
Includes Signal Convert.No
ItemImmersion Temperature P.
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Maximum Temperature ?C150 Degrees C
Maximum Temperature ?F302 Degrees F
Maximum Temperature C150 Degrees C
Maximum Temperature F302 Degrees F
Minimum Temperature ?C-40 Degrees C
Minimum Temperature ?F-40 Degrees F
Minimum Temperature C-40 Degrees C
Minimum Temperature F-40 Degrees F
Primary Measuring Eleme.Thermistor
Probe BendStraight
Probe Connection TypeCustom
Probe ConnectorCustom
Probe Contact Material304 Stainless Steel
Probe Dia.1/4 in
Probe Diameter0.25 in
Probe Length6 in
Probe Material304 Stainless Steel
Probe Sheath Material304 Stainless Steel
Probe Size1/4 in x 6 in
Probe Temp. Measuring E.20K Ohm Thermistor
Probe Wire Length4 in
Process Connection1/4 in NPT, Compression.
Process Mounting1/2 in NPT, 1/4 in NPT .
Resistance20,000 ohm
Sensor TypeThermistor
Temp. Range (C)-40 Degrees to 150 Deg.
Temp. Range (F)-40 Degrees to 302 Deg.
Temperature Measuring E.20K Ohm Thermistor
Temperature Range-40 Degrees to 302 Deg.
Thermistor Type2-Wire
UseAir or Liquids
Wire Length4"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG567853121.01In Stock26Dwyer Instruments0.421.0 @ 1
thumbzoomsustainablesupply.comC173011229.091In StockDwyer Instruments0.429.09 @ 1
