Fasco D917

B007VJKPLC

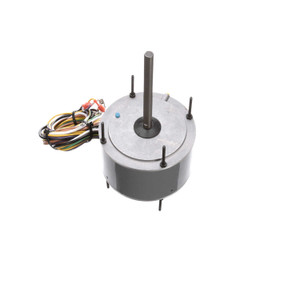

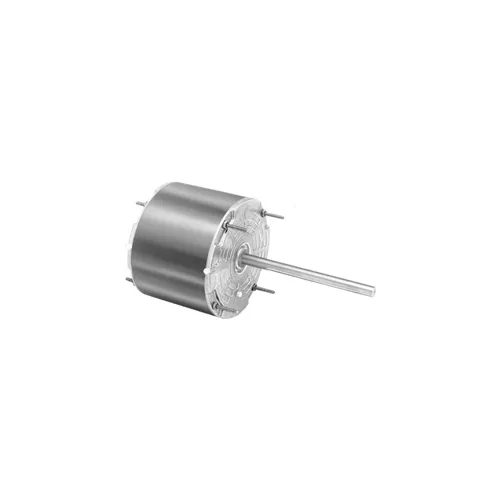

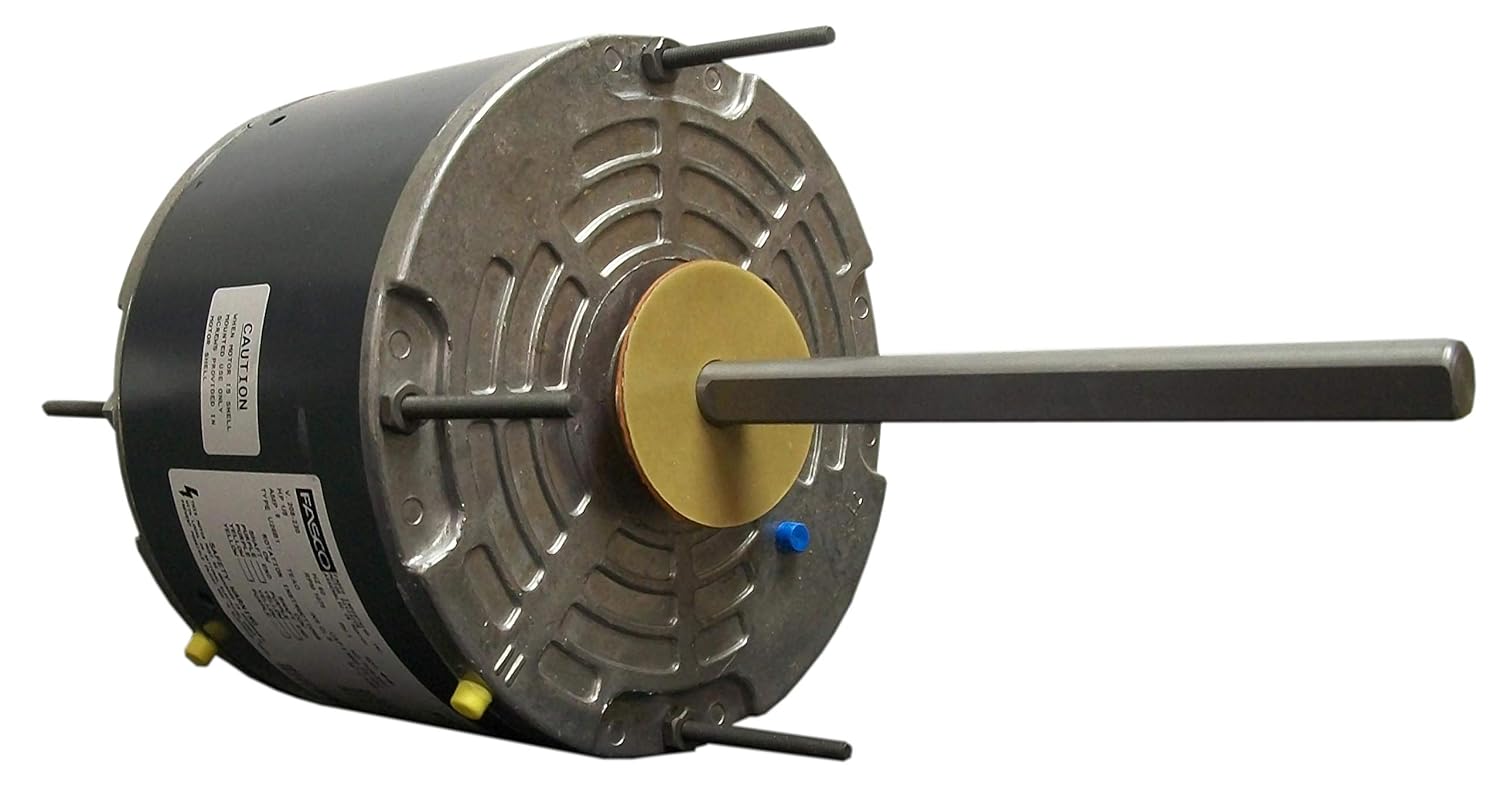

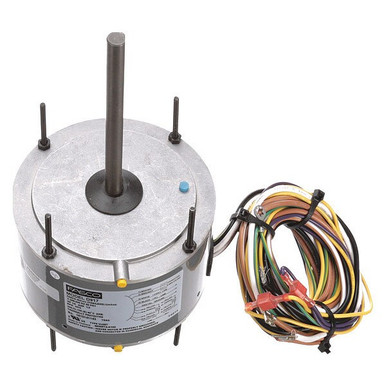

Fasco D917 5.6-Inch Condenser Fan Motor, 1/6 HP, 208-230 Volts, 1075 RPM, 1 Speed, 1 Amps, Totally Enclosed, Reversible Rotation, Sleeve Bearing

Fasco D917 5.6-Inch Condenser Fan Motor, 1/6 HP, 208-230 Volts, 1075 RPM, 1 Speed, 1 Amps, Totally Enclosed, Reversible Rotation, Sleeve Bearingzoom

Attributes

Key Value
Ambient temperature (?C)40
AMP1
Amps1, 1.0
Batteries Included?No
Batteries Required?No
BearingsSlv, Sleeve
Best Sellers Rank#714,859 in Tools & Hom.
Blower Type1 Speed
Body Dia.5 5/8 in
Bolt Circle Dia.5 1/4 in
BrandFasco
C-Dimension-
Capacitor5MFD/370VAC
Catalog NumberD917
CEN
Country of originThailand
CSAY
Current1.0 A
Current Stock22
Customer Reviews4.3 out of 5 stars23 ra.
Date First AvailableJuly 5, 2012
DE Bearing TypeSleeve
DEM ReferenceFA#D917
Diameter5.6?, 5-3/5 in
Drive end bearingSleeve
DutyContinuous
Electrical typePermanent Split Capacit.
Electrical TypePermanent Split Capacit.
EnclosureTotally Enclosed, Total.
Enclosure TypeTE (Totally Enclosed)
Fan Speeds1
Frame5.6", 48
Frame length3.74 in
Frame MaterialRolled Steel
Frame materialRolled Steel
Frame Size5.6
Frame Type48
Frequency60, 60 Hz
Horsepower1/6 hp
HP1/6
Hz60
Ins. ClassB
Insulation classB
Insulation ClassB
International ShippingNo
IP Code-
Is Discontinued By Manu.No
Item model numberD917
Item Package Quantity1
Item Weight10.8 pounds
KVA Code-
Lead Length55 in
Lead TimeExpected to ship in 1-2.
Length6 in
Length Less Shaft4 13/16 in
ManufacturerFasco
Manufacturers Warranty .1 yr
Max Ambient40?C
Maximum Ambient Tempera.60? C
Motor ApplicationHVAC/R
Motor DesignPermanent Split Capacit.
Motor Diameter5.6"
Motor EnclosureTotally Enclosed
Motor Mounting TypeStud
Motor Orientation-
Motor Shell Length3-3/4"
Motor Thermal ProtectionAuto
Motor Wt.12 lbs
MountingExtended Studs, Stud
Mounting OrientationAll Angle
Mounting Stud Pattern3 11/16 in x 3 11/16 in
Mounting TypeExtended Studs
MpnD917
No. of Speeds1
Number of speeds1
Number of Speeds1
ODE Bearing TypeSleeve
OEMN/A
Opp drive end bearingSleeve
Output HP1/6 hp
Output KW0.13 kW
Overall Length11 5/16 in
Package Dimensions13.7 x 5.9 x 5.8 inches
Packaged height5.63 in
Packaged length15 in
Packaged width5.63 in
Part NumberD917
Phase1, Single Phase
Poles6
Power SourceElectric
Product CategoryHVAC/R Motors > Conden.
Product Dimensions14 x 7 x 7 inches; 10.8.
Product TypePSC (Permanent Split Ca.
Product with faster shi.true
RotationReversible, Rev
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
RPM Range1,001-1,100, 900-1150
Service Factor1
Service factor1
Shaft Dia.1/2 in
Shaft Diameter1/2 (in.), 1/2", 0.500 .
Shaft Dimension1/2? x 6 1/2?
Shaft Extension6.0 (in.)
Shaft extension6.0 in
Shaft Length6 1/2 in, 6-1/2"
Shaft typeDouble Flat
Shaft TypeDouble Flat
Ship Weight13 lbs.
Shippingundefined (Fixed Shippi.
SKUZO-G6422845
Speed1075 RPM
Speeds1
StandardsCSA Certified, UL Recog.
Starting methodAcross the line
Stud Size#8-32
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Thermal protectionAutomatic
TypePSC
Type of Overload Protec.Automatic
ULRecognized
UL ListedYes
UPC818508020570
Voltage208-230 V, 208-230V AC
Voltage Compatibility115/208-230V AC, 200-23.
Volts208-230, 230, 208/230V,.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.netD917104.751In StockFasco104.75 @ 1
ferguson.com7347266107.371In StockFasco Industries107.37 @ 1
thumbzoomZoroG6422845107.99118Fasco10.61107.99 @ 1
thumbzoomcshincorporated.comD917111.961In StockFasco12.0111.96 @ 1
thumbzoomasapelectricmotors.comFASD917116.361In StockFASCO116.36 @ 1
thumbzoomemotorpro.comD917121.621In StockFasco13.0121.62 @ 1
thumbzoomDreisilkerFA-RBC-D917131.11In StockFasco131.1 @ 1
thumbzoomsimsupply.comZO-G6422845133.82122Fasco133.82 @ 1
thumbzoomfurnacepartsource.comD917134.212Fasco134.2 @ 1
thumbzoomsustainablesupply.comC2092090134.691In StockFasco15.0134.69 @ 1
thumbzoomVoomi SupplyD917135.291In StockFASCO135.29 @ 1
thumbzoomindustrialstores.comD917136.3612Fasco136.36 @ 1
thumbzoomhomeessentialsdirect.comD917137.91In StockFasco10.8137.9 @ 1
thumbzoomNational Supply NetworkB186130145.821In StockFASCO145.82 @ 1
thumbzoomGlobal IndustrialWBB186130145.951In StockFasco145.95 @ 1
thumbzoomblackhawksupply.comD917147.611In StockFasco Motors147.61 @ 1
thumbzoomAmazonB004134WWO150.31In StockFasco150.3 @ 1
thumbzoomwaterpumpsnow.comD917159.51In StockFasco2.0159.5 @ 1
thumbzoommidwestapplianceparts.comD917-FA-P159.581In StockFasco159.58 @ 1
thumbzoomMRO Supply5763124164.331In StockFasco164.33 @ 1
uri.comD917286.31In StockFasco12.0286.3 @ 1
