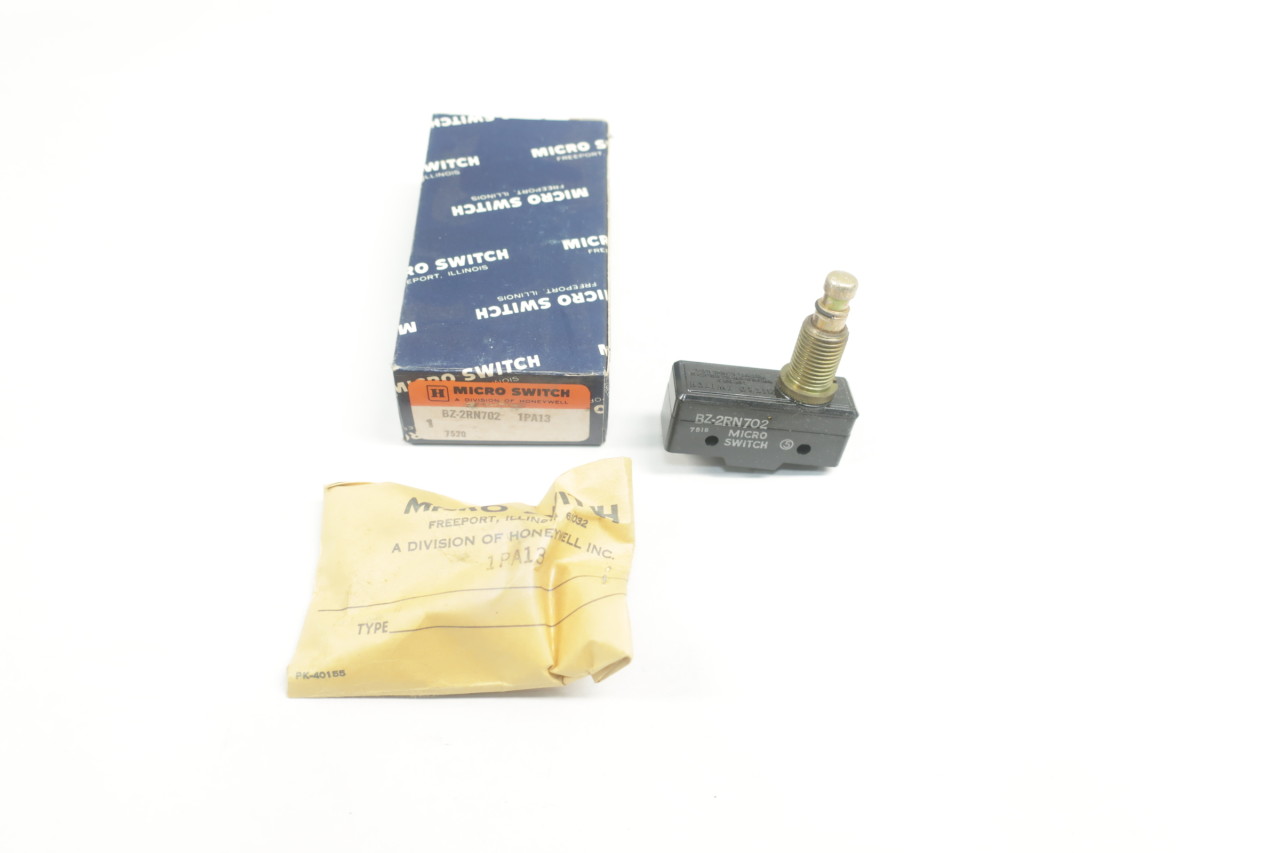

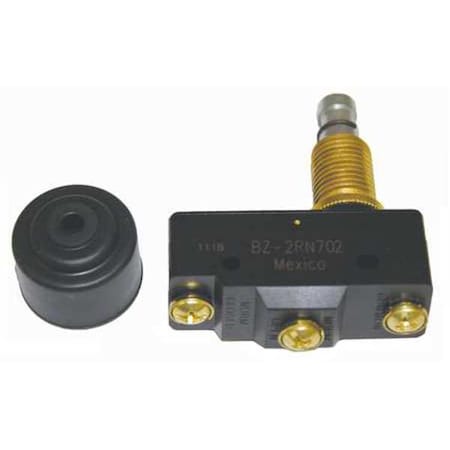

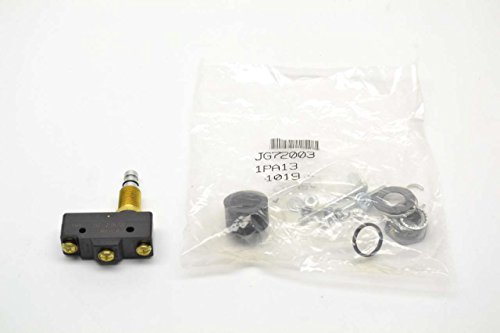

Honeywell BZ-2RN702

B00MEJPNOI

Lg Basic Snap Swch, 15A, SPDT, PNL Mt Plngr

Lg Basic Snap Swch, 15A, SPDT, PNL Mt Plngrzoom

Attributes

Key Value
AC Contact Rating - Sna.15 A @ 120 V, 15 A @ 12.
Actuator Length2.00"
Actuator TypeOvertravel Plunger, Rol.
Actuator Type - Snap Ac.Panel Mount, Plunger
Base Product NumberBZ-2
Basic Actuator Type - S.Plunger
BrandHoneywell
Catalog NumberBZ-2RN702
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating15 A
Current Rating (Amps)15A (AC), 500mA (DC)
Current Stock22
DC Contact Rating - Sna.15 A @ 240 V, 15 A @ 24.
Depth0.7"
Depth - Snap Action Swi.0.70 in, 0.7 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Panel Mount
Differential Travel0.0004 to 0.0020 in, 0..
Digi-Key Part Number480-3211-ND
Dimensions1.0 H x 0.7 W x 2.0 L in
Electrical Connection -.Screw
Electrical Life-
Family NameMICRO SWITCH B Series P.
FeaturesSteel Plunger
For Use WithReplacement part for BZ.
Head TypePlunger
Height1.0"
Height - Snap Action Sw.1 in, 1.00 in
Housing MaterialGeneral Purpose Phenolic
Ingress Protection-
International ShippingNo
ItemLarge Basic Snap Switch.
Item TypeBasic Switches
Length2.0"
Lever Actuator Length -.Not Applicable
ManufacturerHoneywell, Honeywell Se.
Manufacturer Product Nu.BZ-2RN702
Manufacturer Standard L.38 Weeks
Max. Pretravel0.015 in
Mechanical Life20,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting TypePanel Mount, Surface Mo.
MpnBZ-2RN702
Number of Circuits - Sn.1
Operating Force9 to 13 Oz., 255 ~ 368g.
Operating Position1.906" (48.4mm)
Operating Temp. Range-67 Degrees to 185 Deg.
Operating Temperature-55?C ~ 85?C
Over Travel0.125 in
Overtravel0.125" (3.2mm)
PackageBulk
Pretravel0.015" (0.4mm)
Product StatusActive
Release Force4.00 oz, 113gf, 4 oz
Screw Size3.53 mm
SeriesBZ/BA/BM/BE/6AS Series,.
SKUZO-G4614784
Snap Action Switch TypeIndustrial Snap Action .
StandardsCE, CSA, UL, UL, CE, CSA
Sub BrandMicroswitch
SubCategoryElectrical
Switch FunctionOn-Mom
Terminal TypeScrew
TerminationScrew
Termination StyleScrew Terminal
Type of ActuatorPanel Mount Plunger
UPC78454916590
Voltage Rating125VAC
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Watertight - Snap Actio.No
Width - Snap Action Swi.2.00 in, 2 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comBZ-2RN70218.84194HONEYWELL18.84 @ 1
thumbzoomCarlton Bates Company7845491659024.481237HONEYWELL24.48 @ 1
thumbzoomAmazonSCB00DK88JTI27.591In StockHoneywell27.59 @ 1
thumbzoomTMEBZ-2RN70228.49113HONEYWELL28.49 @ 1
thumbzoomsustainablesupply.comC117454635.061In StockHoneywell0.1535.06 @ 1
thumbzoomNRI IndustrialD66391736.051In StockHONEYWELL36.05 @ 1
AmazonTPB00MEJPNOI39.971In Stock3HONEYWELL39.97 @ 1
thumbzoomZoroG461478441.791134Honeywell0.1541.79 @ 1
us.rs-online.com7011913844.571702Honeywell44.57 @ 1
thumbzoomDigi-Key188779544.64555200In StockHoneywell Sensing and Productivity Solutions44.64555 @ 200
grainger.caWWG24A04246.175777721In StockHONEYWELL0.1546.17577772 @ 1
thumbzoomNewark04M838648.4200In StockHONEYWELL48.4 @ 200
RS Delivers842-661148.81619Honeywell48.816 @ 1
thumbzoomcrescentelectric.com17847950.721In StockHoneywell50.72 @ 1
thumbzoomsimsupply.comZO-G461478457.91122Honeywell57.91 @ 1
thumbzoomgalesburgelectric.comBZ-2RN70258.361In StockHoneywell58.36 @ 1
Grainger24A04258.371165HONEYWELL58.37 @ 1
alliedcontrols.comBZ-2RN70284.481In StockHoneywell84.48 @ 1
thumbzoommidwestapplianceparts.comBZ-2RN702-HM-P93.2611Honeywell93.26 @ 1
thumbzoomRaptor SuppliesAB7TGL93.7903591In StockHONEYWELL93.790359 @ 1
standardelectricsupply.com267259260.01In StockHoneywell9260.0 @ 1
thumbzoomkempstoncontrols.co.ukBZ-2RN70211785.80781In StockHoneywell11785.8078 @ 1
