IDEC RTE-P1AD24

B005T5HX2O

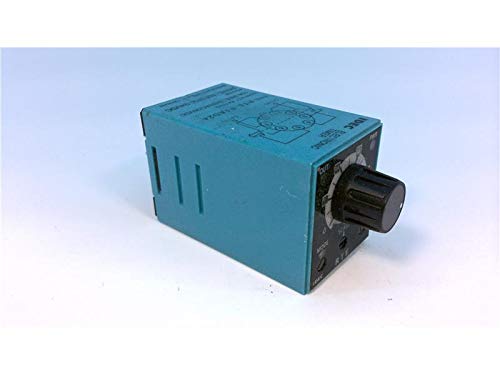

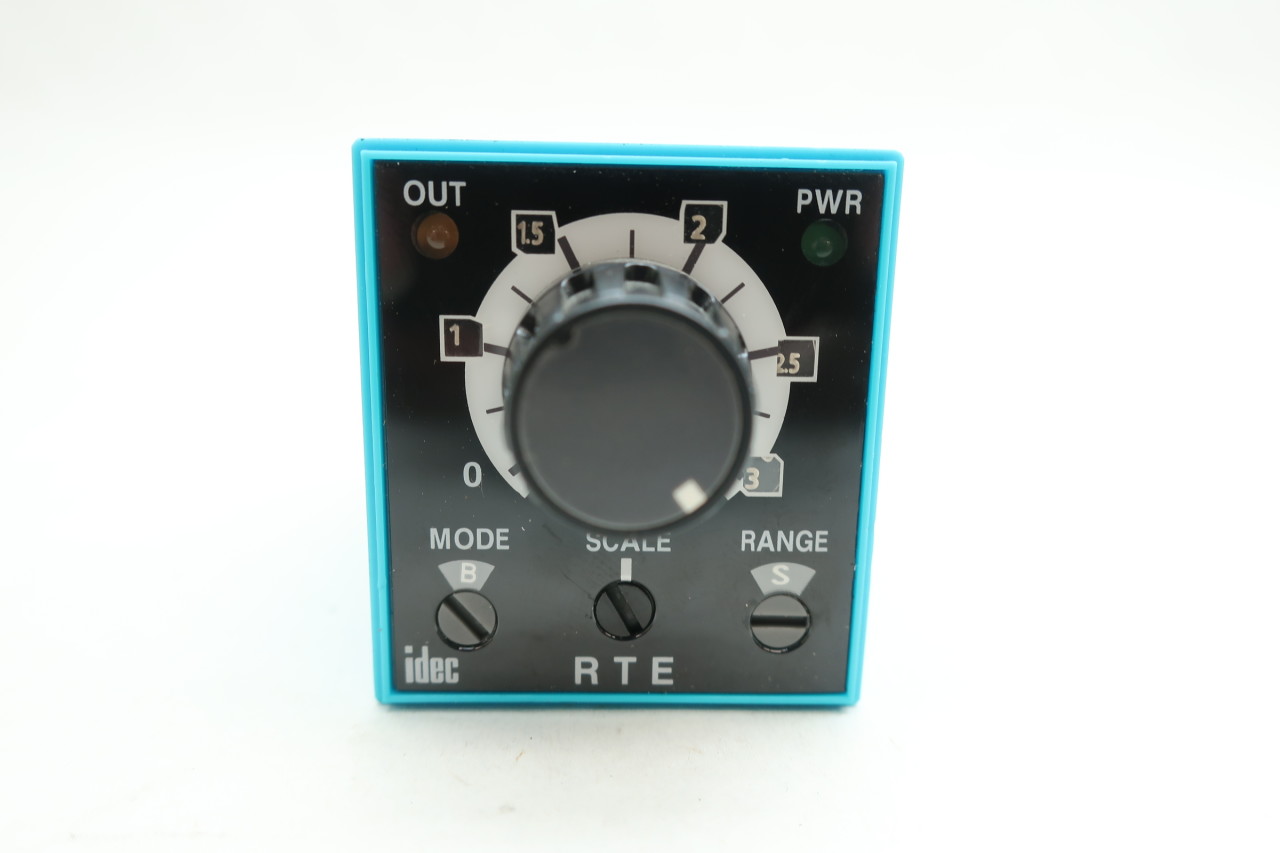

IDEC RTE-P1AD24 Contact Rating 10A 240VAC/30VDC, Multifunction, Power 24VAC 50/60HZ 24VDC, Timing DELAY Relay, Multi Mode, 8 PIN

IDEC RTE-P1AD24 Contact Rating 10A 240VAC/30VDC, Multifunction, Power 24VAC 50/60HZ 24VDC, Timing DELAY Relay, Multi Mode, 8 PINzoom

Attributes

Key Value
Amps10
ApprovalsCE, cUL, UL
Base Product NumberRTE
Best Sellers RankSee Top 100 in Industri.
CategoryIndustrial Automation a.
CircuitDPDT (2 Form C)
Coil Voltage24 VAC, 24 VDC
Coil Voltage Rating24 VAC/DC
CommentsMulti-Function unit. (S.
ComponentMulti-Function Relay
Contact FormDPDT
Contact Rating (A)10 A
Contact Rating @ Voltage10A @ 240VAC/30VDC
ContactsDPDT
Control Voltage24
Current Rating10 A
Date First AvailableJune 23, 2013
Delay Time0.1 Sec ~ 600 Hrs
DescriptionRELAY TIME DELAY 600HRS.
Detailed DescriptionProgrammable (Multi-Fun.
Digi-Key Part Number1885-1066-ND
Family SeriesIDEC Relays, RTE Series
FunctionProgrammable (Multi-Fun.
Gross Weight0.2325 lbs
IP RatingIP40
Is Discontinued By Manu.No
Item model numberRTE-P1AD24
Item NumberRTE-P1AD24
ManufacturerIDEC
Manufacturer Part NumberRTE-P1AD24
Manufacturer Product Nu.RTE-P1AD24
Manufacturer Standard L.14 Weeks
Max Time600 Hrs
Maximum Operating Tempe.65 C
MfrIDEC
Minimum Operating Tempe.-20 C
Mode of OperationInterval, On Delay, Rep.
Mounting TypeSocketable, Panel, Sock.
Multi-FunctionYes
Net Weight0.1919 lbs
Nominal Coil Voltage24 VAC, 24 VDC
Number of Pins8
PackageBulk
Primary TypeTime Delay Relays
Product Dimensions2 x 3 x 4 inches; 3.17 .
Product HeaderRTE Series Analog Timers
Product SeriesRTE
Product StatusActive
Product with faster shi.true
Relay TypeSolid State, Mechanical.
SeriesRTE, RTE Multi-Function.
Shippingundefined (Fixed Shippi.
StandardscULus, CE, TUV
Status IndicatorLED
Termination8 Pin, 8-Pin Octal
Termination StylePlug In, 8 Pin (Octal)
Time Range (10Hours)0-1, 0-5, 0-10, 0-20, 0.
Time Range (Hours)0-1, 0-5, 0-10, 0-24, 0.
Time Range (Minutes)0-1, 0-2, 0-3, 0-5, 0-1.
Time Range (Seconds)0-1, 0-2, 0-3, 0-5, 0-1.
Timing Adjustment MethodHand Dial
Timing Initiate MethodInput Voltage
Timing Range0, 0.1 Sec. to 600 Hrs.
TypeTiming Relay
Voltage - Supply24VAC/DC
Voltage Rating240 ; 30 V
Volts AC24
Volts DC24

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
KeleRTE-P1AD2439.07136IDEC39.07 @ 1
thumbzoomNRI IndustrialD65255741.951In StockIDEC41.95 @ 1
thumbzoomWalker IndustrialRTE-P1AD2444.391In Stock17IDEC44.39 @ 1
thumbzoomGalcoRTE-P1AD24-IDEC44.45120IDEC0.232544.45 @ 1
thumbzoomCarlton Bates Company7804009202944.67135IDEC44.67 @ 1
AmazonB005T5HX2O44.991In StockIDEC44.99 @ 1
Onlinecomponents.comRTE-P1AD2445.73176Idec45.73 @ 1
Mouser199-RTEP1AD2446.8114Idec46.81 @ 1
thumbzoomgalesburgelectric.comRTE-P1AD2450.091In StockIdec50.09 @ 1
hvacdiscountstore.comIDE--RTE-P1AD2452.22110IDEC RELAYS52.22 @ 1
thumbzoomNewark83H414956.36165IDEC56.36 @ 1
us.rs-online.com7017262559.611384IDEC Corporation59.61 @ 1
thumbzoommidwestapplianceparts.comRTE-P1AD24-IR-P60.151In StockIDEC60.15 @ 1
thumbzoomindustrialstores.comRTE-P1AD2460.5918IDEC60.59 @ 1
thumbzoomDigi-Key834433165.028146IDEC65.028 @ 1
thumbzoomhomeessentialsdirect.comRTE-P1AD2466.431In StockIDEC66.43 @ 1
rspsupply.comIDEC RTE-P1AD2482.831In StockIDEC82.83 @ 1
steinerelectric.com14515384.61In StockIDEC84.6 @ 1
