- mpnK16-391-Y-6VDC
- brandname: KACON
- manufacturername: KACON

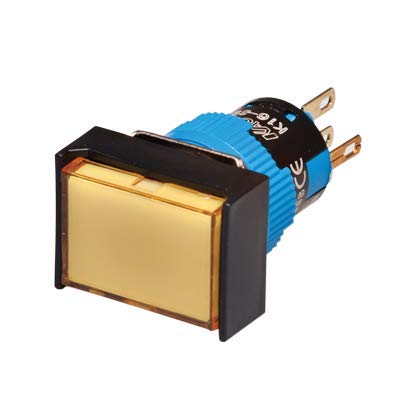

K16-391-Y-6VDC, LED Illuminated Maintained Push Button, 16mm Panel Hole, IP65, Rectangular Head, SPDT, Yellow, 6VDC
- Brand: KACON
- PartNumber: K16-391-Y-6VDC
- Model: K16-391-Y-6VDC
- Manufacturer: KACON
- Label: KACON
Attributes
| Key | Value |
|---|
| Actuator Type | Rectangular, Button |
| Ambient Humidity | 45-85% RH |
| Approvals | UL & CUL Recognized, CE |
| Category | Switches |
| Circuit | SPDT |
| Color - Actuator/Cap | Yellow |
| Contact Arrangement | SPDT (1C) |
| Contact Material | 24K Gold Plated Alloy |
| Contact Resistance | Max. 50 mOhm |
| Current Rating (Amps) | 3A (AC/DC) |
| Degree of Protection | IP 65 |
| Description | 16MM SWITCH PUSH RECT S. |
| Detailed Description | Pushbutton Switch SPDT . |
| Dielectric Strength | 2000 VAC for 1 min |
| Digi-Key Part Number | 2371-K16-391-Y-6VDC-ND |
| Electrical Life | Min. 100,000, 50,000 Cy. |
| Features | - |
| Illumination Type, Color | LED, Yellow |
| Illumination Voltage (N. | 6 VDC |
| Ingress Protection | IP65 - Dust Tight, Wate. |
| Insulation Resistance | 100 MOhm at 500VDC |
| Lens Shape & Color | Rectangle, Yellow |
| Manufacturer | Kacon |
| Manufacturer Product Nu. | K16-391-Y-6VDC |
| Max Applicable Load | 1mA 5VDC |
| Max On/Off Current | 250 VAC, 110 VDC |
| Mechanical Life | Min. 1,000,000, 1,000,0. |
| Mfr | Kacon |
| Mounting Type | Panel Mount, Front |
| Operating Temperature | -25?C ~ 55?C |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Product Status | Active |
| Push Button Type | Maintained |
| Rated Insulation Voltage | 250VAC |
| Rated Load | 1A at 24VDC/120VAC, 0.5. |
| Rated Operating Current | 3A Max. |
| Series | K16 |
| Shock Resistance | Endurance: 500m/s |
| Switch Function | On-On |
| Termination Style | Solder, Quick Connect -. |
| Type | Standard, Illuminated |
| Vibration Resistance | 25-55Hz dual amplitude:. |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 110 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Products For Automation | K16-391-Y-6VDC | 9.59 | 1 | 40 | | Kacon | 0.1 | 9.59 @ 1 |
| Guardian | AMER-K16-391-Y-6VDC | 10.85 | 1 | In Stock | | KACON | | 10.85 @ 1 |
 | Digi-Key | 15998483 | 23.84 | 1 | 40 | | Kacon | | 23.84 @ 1 |
