68514477174

mpn68514477174
brandname: LoveJoy
manufacturername: LoveJoy

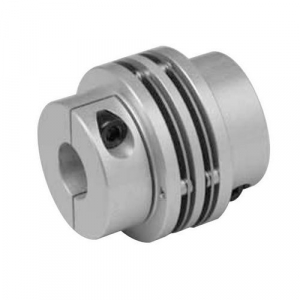

Lovejoy 68514477174 Mds50c 1/2x3/4" Single Mini Disc Clmp Cpl

Lovejoy 68514477174 Mds50c 1/2x3/4" Single Mini Disc Clmp Cpl

zoom

PartNumber: 68514477174
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
# of Set Screws Require.	1
Bore Size	1/2 in
Bore Type	Finished Bore
Color	Gray/Metallic
Coupling	RRU87
Coupling Type	Drop-Out
Cubic inches	11.44627 in
Description:	MDS50C-CP-1/2X3/4;
Dimension BC	2.250 in 57.15 mm
Dimension D	2.750 in 69.85 mm
Dimension FD	2.880 in 73.15 mm
Dimension FL1	0.380 in 9.65 mm
Dimension HD	2.870 in 72.90 mm
Dimension HL	1.380 in 35.05 mm
Dimension S	2.120 in 53.85 mm
Hub Style	RRU Hub
Keyway Size (W x D)	No Keyway
Manufacturer	LOVEJOY INC
Material	Steel
Max. Angular Offset	4.50 ?
Max. Bore (Dimensions I.	1.375 in 34.93 mm
Max. Parallel Offset	0.035 in, 0.89 mm
Max. Recommended End Pl.	0.040 in, 1.02 mm
Max. Speed	10000 rpm
Max. Torque	346.00 in lb, 346 in lb
MFG Part #:	68514477174
Min. Bore (Dimensions I.	0.438 in 11.13 mm
Overall Length	4.840 in 122.94 mm
Pin Location (Dimension.	0.690 in
Pin Size	3/16 in
Rated HP at 100 rpm	0.55 hp
Set Screw Thread Size (.	1/4-20
Supplier:	LOVEJOY INC
UPC:	685144771742
Weight	1.20 lb
Wind-Up Angle at Max. T.	1.68 ?

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	heavydutydepot.com	68514477174	195.7	1	In Stock		Lovejoy		195.7 @ 1
	usmegastore.com	68514477174	204.6	1	In Stock		Lovejoy	1.2	204.6 @ 1
	cbtcompany.com	68514477174	245.97	1	In Stock		Lovejoy		245.97 @ 1
	kscdirect.com	LOV 68514477174	258.38	1	In Stock		LOVEJOY INC		258.38 @ 1
	midwestapplianceparts.com	68514477174-LJ-P	297.08	1	In Stock		Lovejoy		297.08 @ 1
	Airline Hydraulics	LOVEJOY 68514477174	376.26	1	In Stock		LOVEJOY		376.26 @ 1
