Magnecraft / Schneider 725BXXBC3ML-24A

B07SLMKQTJ

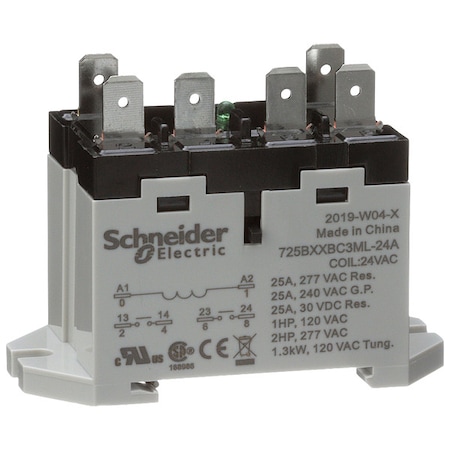

725BXXBC3ML-24A, MagneCraft/Schneider

725BXXBC3ML-24A, MagneCraft/Schneiderzoom

Attributes

Key Value
AC Contact Rating - Rel.25A @ 277V
Body Depth1.3 in
Body Depth - Relay1.3 in
Body Height1.3 in
Body Height - Relay1.94 in
Body Width2.67 in
Body Width - Relay2.67 in
BrandSchneider Electric
Coil Voltage24 VAC
Coil Volts24V AC
Contact Amp Rating (Res.25A @ 277VAC/30VDC
Contact Current Rating25 A
Contact FormDPST-NO
Contact Form - RelayDPST-NO
Contact MaterialSilver Alloy
Control Voltage24
Current Rating25 A
Current Stock47
DC Contact Rating - Rel.25A @ 28V
Dimensions1.94"H, 2.67"W, 1.30"D
Electrical ConnectionQuick-Connect
Electrical Connection -.1/4 in Tab Terminal
Family SeriesSchneider Miscellaneous
Flat Pin Width0.25 in
Gross Weight0.0022 lbs
International ShippingNo
Item - RelayEnclosed Power Relay
Item Number725BXXBC3ML-24A
Lead TimeExpected to ship in 1-2.
ManufacturerSchneider
Manufacturer Part NumberP252063EM
Mounting - RelayBottom Flange, DIN Rail
Mounting TypeDIN Rail Mount ; Panel .
Mpn725BXXBC3ML-24A
Net Weight0.0022 lbs
Number of Pins - Relay6
Number of Poles2
Overall Depth1.94 in
Overall Height - Relay1.94 in
Pins6
Power Consumption - Rel.2.5 VA
Primary TypePower Relays
Relay TypeElectromechanical
Series725 Series
SKUZO-G3354915
Special FeaturesSide Pushbutton
SubCategoryElectrical
TerminationQC Tabs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com725BXXBC3ML-24A13.258155Magnecraft / Schneider Electric13.258 @ 1
Grainger6CVH217.951560SCHNEIDER ELECTRIC17.95 @ 1
Verical725BXXBC3ML-24A18.7330Schneider Electric18.7 @ 3
Mouser528-725BXXBC3ML-24A22.11118Schneider Electric22.11 @ 1
thumbzoomZoroG335491523.991125Schneider Electric2.1223.99 @ 1
thumbzoomsustainablesupply.comC120966524.381In StockSchneider Electric0.224.38 @ 1
thumbzoomGalco725BXXBC3ML-24A-MGCR25.6510In StockSchneider0.002225.65 @ 10
us.rs-online.com7018541532.4110In StockSchneider Electric/Legacy Relays32.41 @ 10
thumbzoomsimsupply.comZO-G335491535.31147Schneider Electric35.31 @ 1
thumbzoomNewark25R437036.4210In StockSCHNEIDER ELECTRIC/LEGACY RELAY36.42 @ 10
