NTN 22207EAW33C3

B01M12ASW2

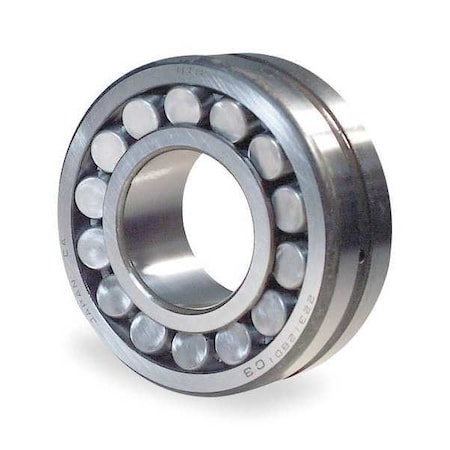

Spherical Roller Bearing, Bore 35 Mm

Spherical Roller Bearing, Bore 35 Mmzoom

Attributes

Key Value
Agency ComplianceISO
Bearing Industry Number22207
bearing material:Through Hardened Steel
Bearing TypeSpherical Roller Bearing
Bore Dia. (In.)1.38 in
Bore Dia. (mm)35 mm
Bore Diameter35 mm
bore type:Round
CageSteel
Cage MaterialSteel
cage material:Steel
cage type:Pressed
closure type:Open
Dynamic Load Capacity (.15,962 lb
dynamic load capacity:22500 lbf
EAN3413520081775
EnclosureOpen
Fillet Radius1.1 mm
fillet radius:1.1 mm
finish/coating:Uncoated
harmonization code:8482.30.0080
inner ring width:23 mm
internal clearance:C3
ItemSpherical Roller Bearing
Load DirectionRadial, Thrust
LubricationNot Lubricated
lubrication hole type:Lubrication Groove & Ho.
Lubrication OpeningsOil Groove
Manufacturer NameNTN
manufacturer upc number:3413520081775
MaterialThrough Hardened Steel
maximum rpm:9400 rpm
Minimum Buy QuantityN/A
operating temperature r.-40
outer ring type:Not Split
outer ring width:23 mm
Outside Dia. (In.)2.8346 in
Outside Dia. (mm)72 mm
Outside Diameter72 mm
Overall Width23 mm
precision rating:Not Rated
Product Group - BDIB04311
Roller Material Grade52100
Series22300
series:222
Static Load Capacity (L.15,962 lb
static load capacity:20700 lbf
Static Radial Load Capa.92 kN
Temp. Range (F)-20 Degrees to 250 Deg.
TypeOpen
UNSPSC31171510
Weight / Kilogram0
weight:0.948 lbs
Width (In.)0.9055 in
Width (mm)23 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomBDI Express1198075107.993838441In StockNTN107.99383844 @ 1
thumbzoomZoroG2316456108.991In Stock13Ntn0.95108.99 @ 1
thumbzoommotionindustries.com03393498125.691In StockNTN125.69 @ 1
thumbzoomMRO Supply829005145.791In StockNTN Bearing145.79 @ 1
thumbzoomsustainablesupply.comC3031738148.381In StockNTN0.95148.38 @ 1
thumbzoomRaptor SuppliesAB4LWG205.82704351In StockNTN205.8270435 @ 1
