Omron D2HW-C201H

B00MEKX7F4

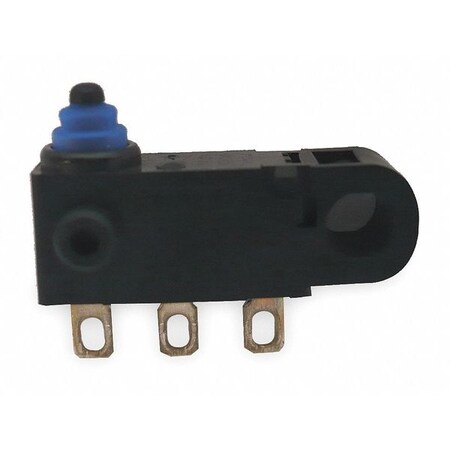

Omron Electronics D2HW-C201H Switch Snap Action

Omron Electronics D2HW-C201H Switch Snap Actionzoom

Attributes

Key Value
AC contacts rating @R0.1A / 125V AC
Actuator TypePin Plunger
Actuator Type - Snap Ac.Pin, Plunger
Body dimensions18.5x5.3x6.5mm
Contact FormSPDT
Contact Form- SwitchesSPDT
Contact platinggold-plated
Contacts configurationSPDT
Country of Origin (subj.Japan
Current Rating2A
DC Contact Rating - Sna.2A @ 12V
DC contacts rating @R2A / 12V DC
Differential Travel0.010"
Electrical Connection -.Solder Lug
Electrical life100000 cycles
IP ratingIP67
ItemMiniature Sealed Snap A.
Leadsfor soldering
ManufacturerOMRON OCB
Manufacturer seriesD2HW-C
Max. contact resistance:100m?
Mechanical durability1000000 cycles
Mounting Dimension0.51" Centers
Mounting Dimension - Sn.0.51 in Centers
Number of positions2
Operating Force2.68 oz., 0.75N
Operating Temp. Range-40 Degrees to 185 Deg.
Operating temperature-40...85?C
Over Travel0.252"
Release Force0.35 oz.
SeriesD2HW Series
Stable positions number1
Switches featureswithout lever
Switching methodON-(ON)
Terminal pitch4.38mm
Terminal TypeSolder
TerminationSolder Lugs
Type of ActuatorPin Plunger
Type of switchmicroswitch SNAP ACTION
Watertight - Snap Actio.Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG10635011.52163Omron1.52 @ 63
thumbzoomTMED2HWC201H1.84163OMRON OCB1.84 @ 63
Onlinecomponents.comD2HW-C201H1.931748OMRON ELECTRONICS1.93 @ 63
thumbzoomNewark18K61542.171614OMRON2.17 @ 63
us.rs-online.com703551762.4650063Omron Electronic Components2.46 @ 500
RS Delivers682-18783.9481177Omron3.948 @ 63
thumbzoomRadwellD2HWC201H8.0163OMRON8.0 @ 63
thumbzoomebay.com_chws2012D2HW-C201H105.69163OMRON105.69 @ 63
