Ruland SPC-23-16-SS

mpnSPC-23-16-SS
brandname: Ruland
manufacturername: Ruland

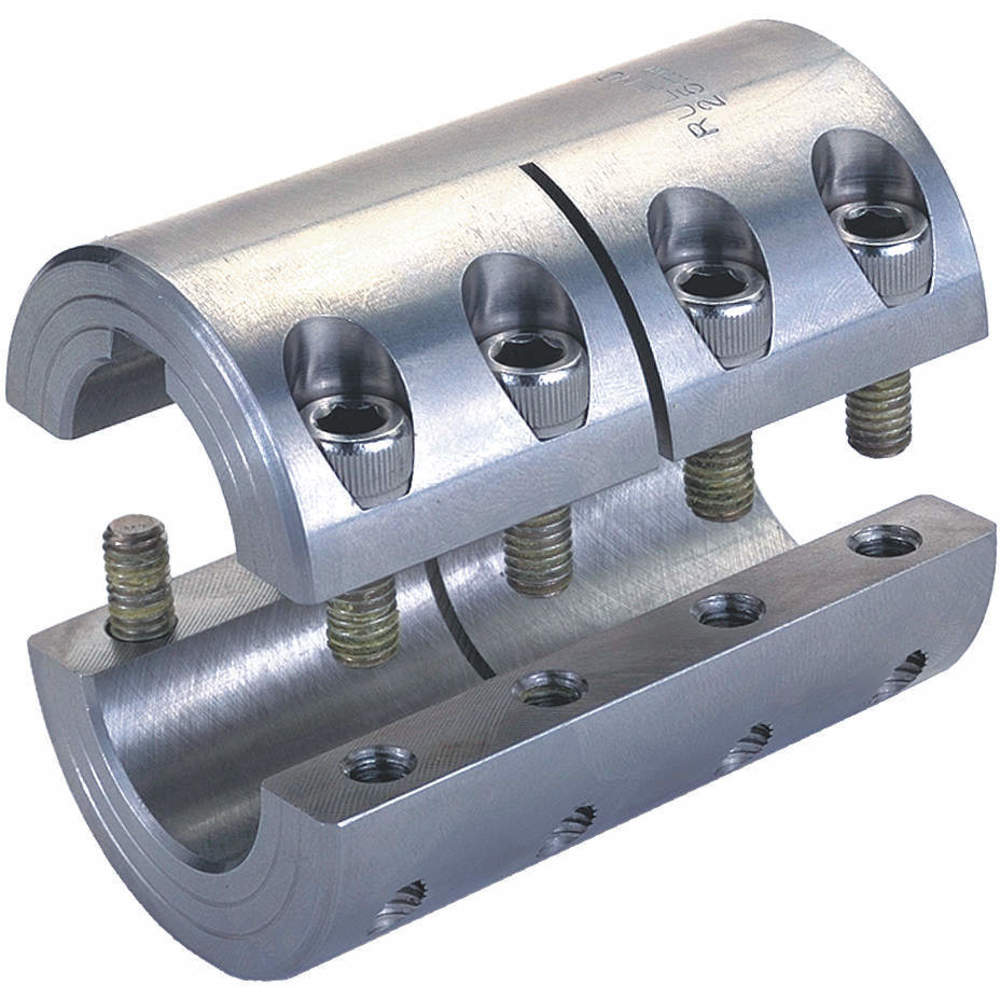

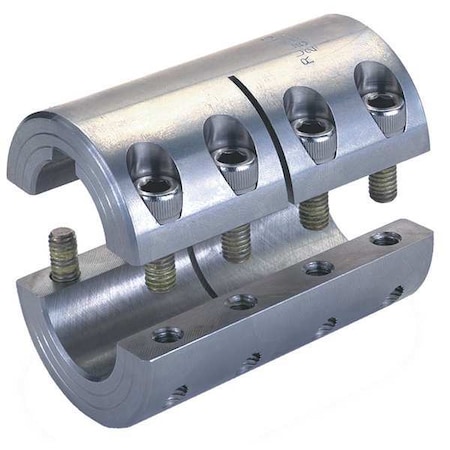

Ruland SPC-23-16-SS 303 Stainless Steel Rigid Coupling, Two Piece with Keyway, 1.438" x 1.000" Bores, 2 5/8" OD, 3/8" x 1/4" Keyway, 3 7/8" Length

Brand: Ruland
PartNumber: SPC-23-16-SS
Model: SPC-23-16-SS
Size: 1.438" x 1.000" Bores
PackageQuantity: 1
Binding: Misc.
Manufacturer: Ruland Manufacturing Co., Inc.
Label: Ruland Manufacturing Co., Inc.

Attributes

Key	Value
Application	Zero Backlash Coupling .
B1 Max Shaft Penetration	1.937 in
B2 Max Shaft Penetration	1.937 in
Balanced Design	Yes
Bore (B1)	1.4375 in
Bore Dia.	1 in x 1-7/16 in
Bore Tolerance	+0.0020 in / +0.0005 in
Category	Hardware, Fasteners, Ac.
Clearance Dia.	2.84 in
Clearance Dia. (In.)	2.840
Clearance Diameter (C) .	2.840 in
Country of Origin	USA
Country of Origin (subj.	United States
Description	1-7/16"X1" STAINLESS RI.
Design	Precision Honed Bores O.
Digi-Key Part Number	3188-SPC-23-16-SS-ND
Finish	Bright
Finish Specification	Bright, No Plating
Forged Clamp Screw	5/16-24
Full Bearing Support Re.	No
Hex Wrench Size	1/4 in
Item	Rigid Shaft Coupling
Item - Rigid Shaft Coup.	Rigid Shaft Coupling
Keyway (K1)	3/8 in
Keyway (K2)	1/4 in
Keyway Width	3/8 in x 1/4 in
Keyway Width (In.)	3/8" x 1/4"
Length (L)	3 7/8 in
Machined From	Bar Stock
Manufacturer	Ruland Manufacturing
Manufacturer Product Nu.	SPC-23-16-SS
Material	303 Stainless Steel
Material - Couplings	303 Stainless Steel
Material Specification	Type 303 Austenitic, No.
Max. RPM	4,000 RPM
Max. Torque	2,900 in-lb
Max. Torque (In.-Lbs.)	2900
Maximum Speed	4,000 RPM
Mfr	Ruland Manufacturing
Moment of Inertia	4.5340 lb-in
Note 1	Performance ratings are.
Number of Screws	8 ea
Nypatch? Anti-Vibration.	Yes
Outer Diameter (OD)	2 5/8 in
Outside Dia.	2 5/8 in
Overall Length	3 7/8 in
Package	Bag
Product Status	Active
Provides	High Torque with No Mis.
Rated Torque	2,900 in-lb
Recommended Gap	0.094 in
Recommended Shaft Toler.	+0.0000 in / -0.0005 in
Screw Finish	Bright
Screw Location (R)	1.050 in
Screw Material	18-8 300 Series Stainle.
Screw Size	5/16"-24
Screw Size (In.)	5/16-24
Seating Torque	190 lb-in
Series	-
Shaft Locking Type - Co.	2 Piece Clamp
Small Bore (B2)	1.0000 in
Specifications	2.625" (66.68mm) Outer .
System of Measurement	Inch
Tariff Code	8483.60.8000
Temperature	-40?F to 350?F (-40?C t.
Type	Rigid Coupling, Two Pie.
UNSPC	31163009
UPC	634529022801
UPC Code	63452902280
Weight (lbs)	4.317300
With Keyway / Without K.	With Keyway
Zero-Backlash?	Yes

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G8032674	530.0	1	In Stock	10	Ruland	4.2	530.0 @ 1
us.rs-online.com	72339383	573.24	1	In Stock		Ruland Manufacturing		573.24 @ 1
cbtcompany.com	SPC-23-16-SS	584.35	1	In Stock		RULAND MANUFACTURING		584.35 @ 1
Ruland	SPC-23-16-SS	670.43	1	In Stock		Ruland	4.3173	670.43 @ 1
sustainablesupply.com	C1645932	785.66	1	In Stock		Ruland Manufacturing	4.2	785.66 @ 1
motionindustries.com	06264310	900.58	1	In Stock		Ruland Manufacturing Co Inc		900.58 @ 1
Digi-Key	13612508	927.12	1	2		Ruland Manufacturing		927.12 @ 1
Raptor Supplies	AF9WZU	1155.630411	1	In Stock		RULAND MANUFACTURING		1155.630411 @ 1
