Schneider GV2LE14

B000WL30NG

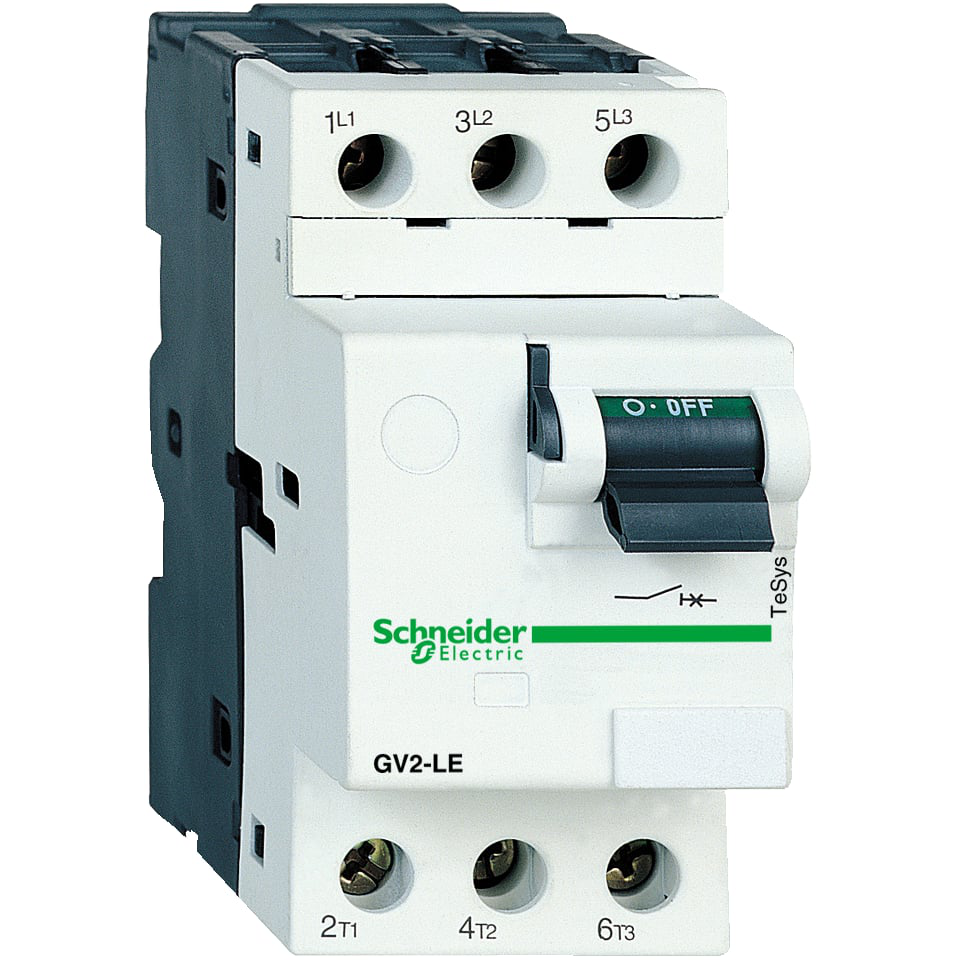

SCHNEIDER ELECTRIC GV2LE14 MANUAL SWITCH 600VAC 10AMP IEC

SCHNEIDER ELECTRIC GV2LE14 MANUAL SWITCH 600VAC 10AMP IECzoom

Attributes

Key Value
[Ics] Rated Service Sho.100 % 230/240 V AC 50/6.
[Ith] Conventional Free.10 A IEC 60947-4-1
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.690 V AC 50/60 Hz IEC 6.
[Uimp] Rated Impulse Wi.6 kV IEC 60947-2
Ambient Air Temperature.-20-60?C, -20-60 ?C
Ambient Air Temperature.-40-80 ?C
Applicationmotor protection
BrandSCHNEIDER ELECTRIC
Breaking Capacity100 kA Icu 230/240 V AC.
California Proposition .Antimony oxide & Antimo.
Catalog NumberGV2LE14
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI121004EN
Climatic WithstandIACS E10
Colordark grey
ComponentIEC Starter
ConnectionSCREW CLAMP TERMINALS 2.
Control Typetoggle
Country of OriginFrance
Depth78.5 mm
Device Applicationmotor protection
Device Short NameGV2LE
Electrical connectionscrew terminals
Electrical Durability100000 cycles AC-3 415 .
Environmental DisclosureENVPEP121004EN
Eu Rohs DirectiveCompliant
Fire Resistance960 ?C IEC 60695-2-11
Fixing Mode35 mm symmetrical DIN r.
Height89 mm
Ik Degree Of ProtectionIK04
Ip Degree Of ProtectionIP20 IEC 60529
IP ratingIP20
ItemManual Switch 600Vac 10.
Item TypeMotor circuit breaker;G.
Line Rated Current10 A
Made in USANo
Magnetic Tripping Curre.138-138 A
ManufacturerSCHNEIDER ELECTRIC
Max motor power3/4kW
Maximum Operating Rate40 cyc/h
Mechanical Durability100000 cycles
Mechanical Robustnessshocks 30 Gn for 11 ms .
Mercury FreeYes
Motor Power Kw3-3 kW 400/415 V AC 50/.
MountingScrew, for DIN rail mou.
Net Weight0.33 kg
Network Frequency50/60 Hz IEC 60947-2
Network TypeAC
Number of Poles3
Operating Altitude6561.68 ft (2000 m)
Operating Positionany position
Operating temperature-20...60?C
Operating voltage230...690V AC
Poles Description3P
Power Dissipation Per P.1.8 W
Product CertificationsIECEE CB Scheme || UL |.
Product NameTeSys GV2
Product Or Component Ty.motor circuit breaker
RangeTeSys Deca
Range of overcurrent re.10A
Range Of ProductTeSys GV2
Rated Dutycontinuous IEC 60947-4-1
Reach RegulationReference contains Subs.
Related itemsLR2K0314,
Rohs Exemption Informat.Yes
Short circuit release138A
Size3.09
Special FeaturesIK04
Standard960 A Degrees C IEC 606.
StandardsEN/IEC 60947-2 || EN/IE.
Starter Amperage10 Amp
Starter PolesThree Pole
Sub BrandTeSys GV2
Sub ComponentTeSys GV2 Manual Starte.
Suitability For Isolati.yes IEC 60947-1 ? 7-1-6
Sustainable Offer StatusGreen Premium product
Tightening Torque1.7 N.m screw clamp ter.
Trip Unit Technologymagnetic
Type of protectionmotor breaker
UPC785901568162
Utilisation Categorycategory A IEC 60947-2 .
Voltage Rating690 V AC 50/60 Hz IEC 6.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB000WL30NG49.351In StockSchneider49.35 @ 1
thumbzoomTMEGV2LE1457.491In StockSCHNEIDER ELECTRIC57.49 @ 1
RS Delivers608-841691.09215Schneider Electric91.092 @ 1
thumbzoomZoroG0847729367.991In StockSchneider Electric0.62367.99 @ 1
thumbzoommayerelectric.comSQDGV2LE14395.931In StockSQUARE D0.726395.93 @ 1
rspsupply.comSCHNEIDER GV2LE14418.471In StockSchneider Electric418.47 @ 1
thumbzoomcrescentelectric.com121460427.011In StockSchneider Electric427.01 @ 1
thumbzoomsustainablesupply.comC3039815446.581In StockSchneider Electric0.62446.58 @ 1
thumbzoomNewark29C1840454.261In StockSCHNEIDER ELECTRIC454.26 @ 1
