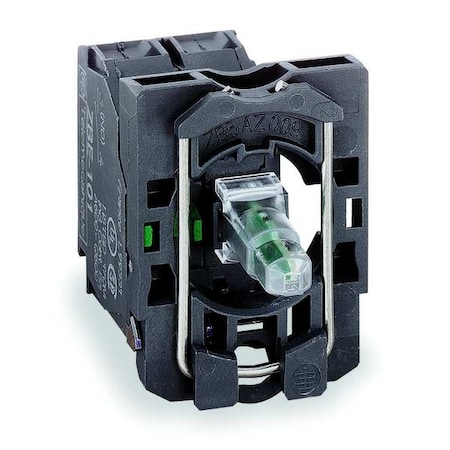

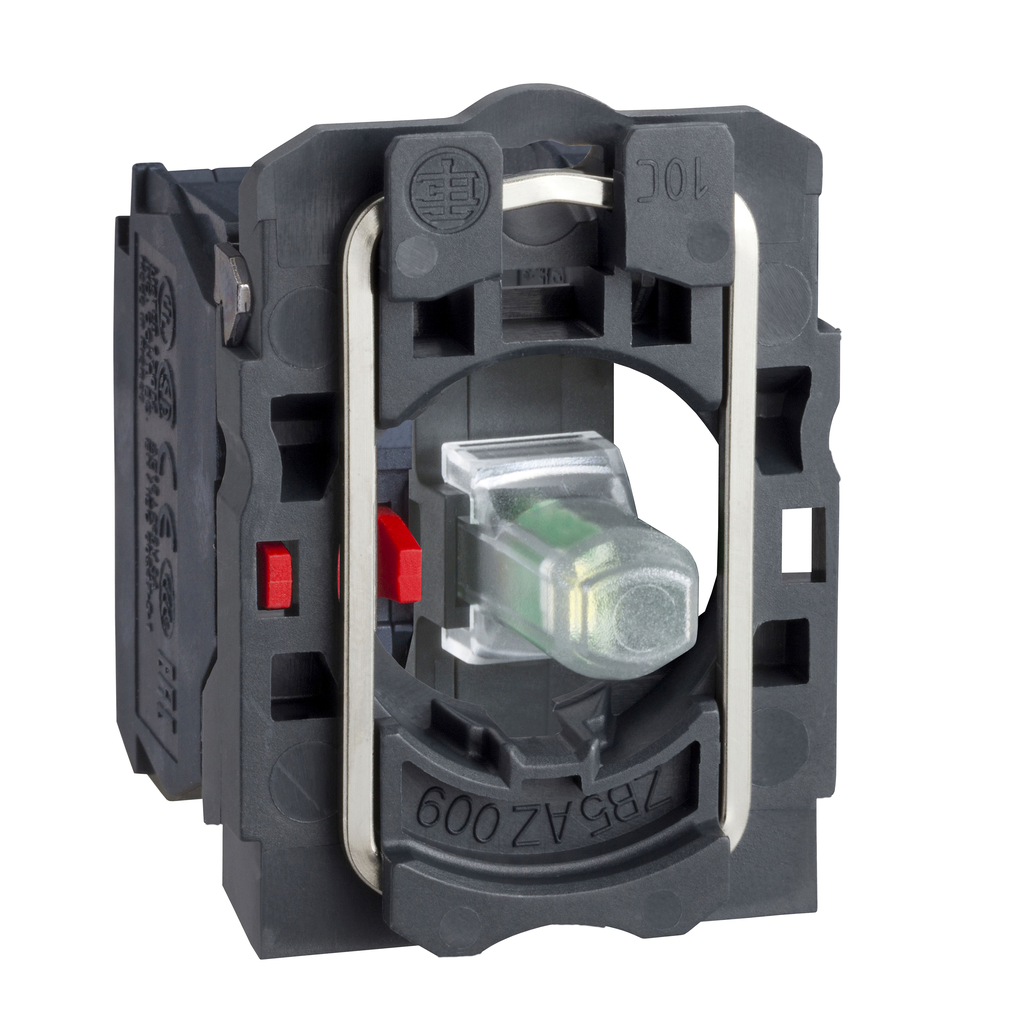

Schneider Electric Lamp Module and Contact Block 22mm 1NC
- Brand: Schneider Electric
- PartNumber: ZB5AW0G32
- Model: ZB5AW0G32
- PackageQuantity: 1
- Manufacturer: Schneider Electric
- Label: Schneider Electric
Attributes
| Key | Value |
|---|
| [Ie] Rated Operational . | 3 A 240 V, AC-15, A600 . |
| [Ith] Conventional Free. | 10 A EN/IEC 60947-5-1 |
| [Ui] Rated Insulation V. | 600 V 3)EN 60947-1 |
| [Uimp] Rated Impulse Wi. | 6 kV EN 60947-1 |
| [Us] Rated Supply Volta. | 110...120 V AC 50/60 Hz |
| Ambient Air Temperature. | -40-70 ?C |
| Ambient Air Temperature. | -40-70 ?C |
| Bulb Base | integral LED |
| Cad Overall Depth | 32 mm |
| Cad Overall Height | 42 mm |
| Cad Overall Width | 30 mm |
| California Proposition . | Lead and lead compounds. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Color | Green |
| Contact Form | 1NC |
| Contact Operation | slow-break |
| Contact Rating | 10A @ 600V AC/DC |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Type And Compo. | 1 NC |
| Contacts Usage | standard |
| Country of Origin (subj. | France |
| Current Consumption | 14 mA |
| Device Presentation | basic sub-assemblies |
| Device Short Name | ZB5 |
| Electrical Durability | 1000000 cycles, AC-15, . |
| Electrical Shock Protec. | class II IEC 60536 |
| Electromagnetic Emission | class B IEC 55011 |
| Environmental Disclosure | ENVPEP1710010EN |
| Eu Rohs Directive | Pro-active compliance (. |
| Fixing Collar Material | plastic |
| For Use With | Plastic, ZB5 Series |
| Head Type | standard |
| IP Rating | 66 |
| Item | Lamp Module and Contact. |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 110 to 120V AC |
| Lamp Type | Led |
| Lamp Voltage | 110 to 120V AC |
| Light Block Supply | direct |
| Light Source | protected LED |
| Light Source Colour | Green |
| Mechanical Durability | 5000000 cycles |
| Mercury Free | Yes |
| NEMA Contact Rating Des. | A600/Q600 |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Net Weight | 0.032 kg |
| Operating Force | 2 N NC changing electri. |
| Operating Travel | 1.5 mm NC changing elec. |
| Positive Opening | with EN/IEC 60947-5-1 a. |
| Product Certifications | GL || CSA || DNV || UL . |
| Product Or Component Ty. | complete body/contact a. |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Reach Free Of Svhc | Yes |
| Reach Regulation | Free of Substances of V. |
| Resistance To Electroma. | 10 V/m IEC 61000-4-3 |
| Resistance To Electrost. | 6 kV on contact (on met. |
| Resistance To Fast Tran. | 2 kV IEC 61000-4-4 |
| Rohs Exemption Informat. | Yes |
| Sale Per Indivisible Qu. | 1 |
| Service Life | 100000 h at rated volta. |
| Shape Of Screw Head | cross Philips no 1 || c. |
| Shock Resistance | 30 gn 18 ms) half sine . |
| Short-Circuit Protection | 10 A cartridge fuse gG . |
| Signalling Type | steady |
| Size | 22 mm |
| Standards | CE, CSA, UL, CSA C22.2 . |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Sustainable Offer Status | Green Premium product |
| Terminals Description I. | (11-12)NC |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068. |
| Warranty | 18 months |
| Weee | The product must be dis. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0465491 | 53.4 | 1 | In Stock | 26 | Schneider Electric | 0.1 | 53.4 @ 1 |
 | mostelectric.com | ZB5AW0G32 | 60.41 | 1 | In Stock | | SQUARE D/TELEMECANIQUE | | 60.41 @ 1 |
 | mayerelectric.com | SQDZB5AW0G32 | 63.9 | 1 | In Stock | | SQUARE D | 0.0704 | 63.9 @ 1 |
 | gordonelectricsupply.com | ZB5AW0G32 | 64.09 | 1 | In Stock | 10 | SQUARE D | | 64.09 @ 1 |
| us.rs-online.com | 72552203 | 88.53 | 1 | In Stock | | Schneider Electric | | 88.53 @ 1 |
 | sustainablesupply.com | C1211998 | 89.17 | 1 | In Stock | | Schneider Electric | 0.1 | 89.17 @ 1 |
