Simpson Electric 09760

B00HKJNDXU

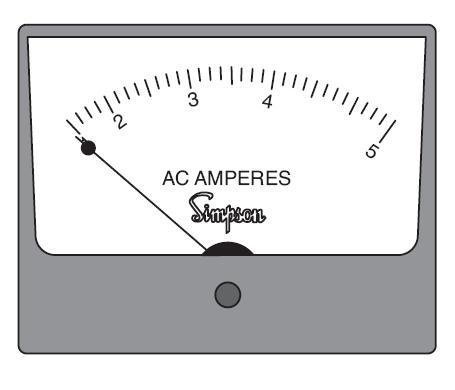

Simpson 09760 Panel Meter

Simpson 09760 Panel Meterzoom

Attributes

Key Value
Accuracy? 2% F.S. %, 2 %
ApprovalsRU
ASINB00HKJNDXU
Batteries Included?No
Batteries Required?No
Body Diameter2.73 in.
Case MaterialHigh Density Black Plas.
Casing MaterialPlastic
Connection TypeStud
Depth1.22 in
Dimensions3.25 L x 3.25 H in
Dimensions, Cutout, Inc.2.79 Dia. in
Display TypeAnalog
Family SeriesSimpson Electric Panel .
FunctionVoltmeter
Gross Weight1 lb
Impedance1000 Ohms?V
Input Signal25 VDC
ItemPanel Meter 1327A0-25 D.
Item model number09760
Item Number09760
Item Package Quantity1
ManufacturerSimpson Electric, Simps.
Manufacturer Part Number09760
Maximum Opening Tempera.+65 ?C
Measurement Range0 to 25 VDC
Measuring Range0 to 25 V
Minimum Operating Tempe.-20 ?C
Mounting Hole Diameter0.128 in.
MovementAnnular, Self-Shielding
Net Weight1 lb
Nominal Size3.5 "
Operating Temperature-4-149 ?F, -20 to +65 ?C
Panel Cut Out2.79 Dia. in.
Part Number09760
Pointer OriginZero Left
Power SourceCorded-electric
Primary TypeElectromechanical
Product HeaderWide-Vue Style Analog P.
Product SeriesWide-Vue
Repeatability0.02
Resistance0.15 Ohms
Response Time1.5 sec. (Max.)
Scale0-25
Scale LegendDC Volts
Scale Length3.14 in.
Series1327 Series
Special FeaturesExtended Operating Temp
StandardsUL Recognized
Temperature Range-20 to 65 C
TypeElectromechanical
UNSPSC Code46000000
UPC Code74591809760
Voltage Range0 to 25 V
Weight8 Oz.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1493716126.991In StockSimpson Electric1.0126.99 @ 1
AmazonSCB00HKJNDXU127.061In StockSimpson127.06 @ 1
thumbzoomGalco09760-SPSN133.441In StockSimpson Electric1.0133.44 @ 1
Newark27M2010139.331In StockSIMPSON139.33 @ 1
us.rs-online.com70209395155.841In StockSimpson0.5155.84 @ 1
