Schneider Electric HDA260202

B00CONIM2O

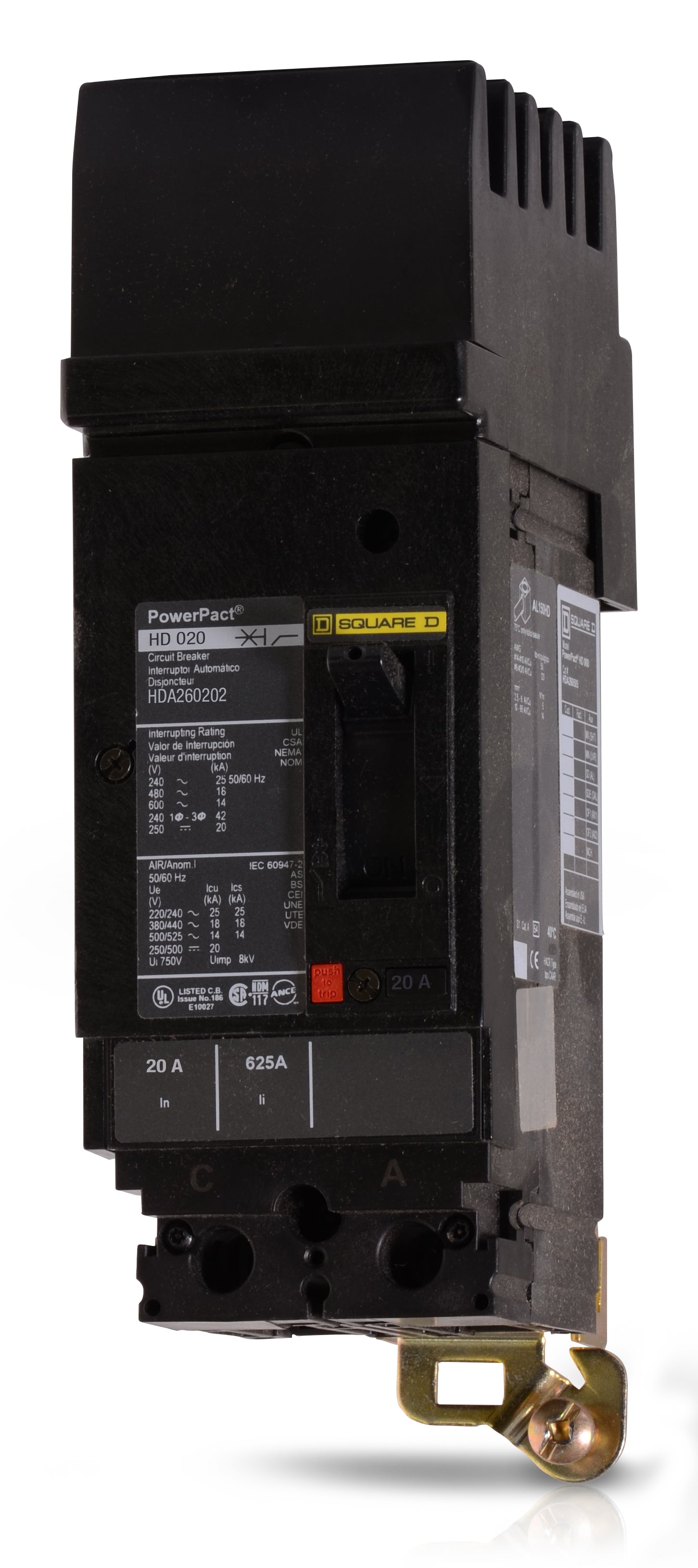

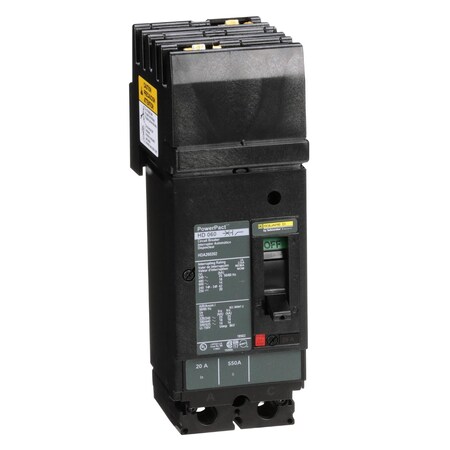

SCHNEIDER ELECTRIC 600-VOLT 20-AMP HDA260202 Molded CASE Circuit Breaker 600V 20A

SCHNEIDER ELECTRIC 600-VOLT 20-AMP HDA260202 Molded CASE Circuit Breaker 600V 20Azoom

Attributes

Key Value
AC Voltage Rating690V AC
Amperage20
Amperage Rating20
Amps20 A
ApplicationHACR rated Applications.
ApprovalUL
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Catalog NumberHDA260202
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
Color FamilyBlack
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Country of OriginUnited States, US - Uni.
Current Rating20-20A
Depth86 mm
DisplayHDA260202 Circuit break.
ECCNEAR99
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Frame TypeH
FunctionsLI - Long-Time and Inst.
Gtin785901416371
Height163 mm, 3 in., 6.42
High Amp Trip Setting750 A
Interrupt Rating25 kA at 220/240V AC, 1.
Interrupting Rating25kAIC at 240VAC, 18kAI.
ItemCircuit breaker,PowerPa.
Item TypeCIRCUIT BREAKER
Length16 mm, 4.8 IN
Made in USAYes
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
Mounting TypeI-Line
MpnHDA260202
No. of Poles2
Number of Poles2
Operating Temperature40 A Degrees C
Package Quantity1
Phase1
Phase ConnectionAC
Poles2
ProtectionThermal Magnetic
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesHDA
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL, CSA, NEMA, NOM, CE
Sub BrandPOWERPACT
Terminal ConnectionI-Line, Lug
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range20 A,350 A,750 A
Trip TypeTHERMAL-MAGNETIC, Therm.
UNSPSC39121616
UPC785901416371
Upc785901416371
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.comHDA260202422.991In StockSchneider Electric422.99 @ 1
standardelectricsupply.com2204773479.271In StockSquare D479.27 @ 1
thumbzoomRadwellHDA260202560.01In StockSCHNEIDER ELECTRIC SQUARE D560.0 @ 1
thumbzoomZoroG3978649638.991In Stock145Square D2.2638.99 @ 1
steinerelectric.com434735644.131In StockSquare D?644.13 @ 1
Newark19K9954649.031In StockSQUARE D BY SCHNEIDER ELECTRIC649.03 @ 1
Graybar25148864667.0832120Square D (Schneider Electric)667.0832 @ 1
thumbzoomsuperbreakers.comHDA260202957.28123Square D957.28 @ 1
thumbzoommostelectric.comHDA2602021052.911In StockSQUARE D/TELEMECANIQUE1052.91 @ 1
thumbzoomcrescentelectric.com1366201749.711In StockSquare D by Schneider Electric1749.71 @ 1
