TE Connectivity 1461247-3

B096N1QS54

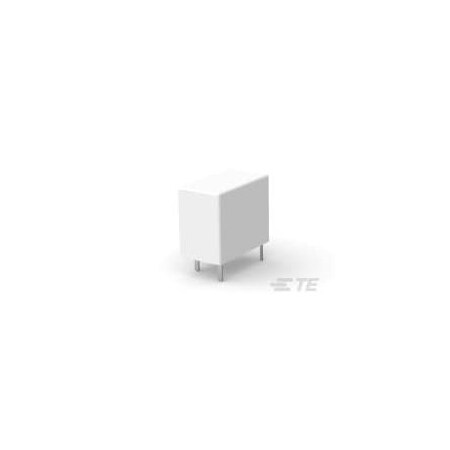

1461247-3, Power Relay 24VDC 8A SPST(18.2x10.2x14.9) mm THT (25 Items)

1461247-3, Power Relay 24VDC 8A SPST(18.2x10.2x14.9) mm THT (25 Items)zoom

Attributes

Key Value
Body Depth - Relay0.717 in
Body Height - Relay0.579 in
Body Width - Relay0.4 in
Coil Resistance2880 ?
Coil TypeMonostable, DC
Coil Volts24V DC
Contact Form - Relay1 Form A (NO)
Contact Limiting Breaki.8A
Contact Limiting Making.8A
Contact Limiting Short-.8A
Contact MaterialAgCdO
Contact Voltage Rating30 VDC, 250 VAC
Dielectric Voltage4000 Vrms Coil and Cont.
FeaturesSensitive Version, UL C.
Insulation Clearance.303 in
Insulation Creepage.37 in
Item - RelayStandard Power Relay
Mounting TypePrinted Circuit Board
Number of Poles1
Operating Temp. Range50 to 70?C
Power Consumption - Rel.200 mW
Protection CategoryRTIII
Switching Current100mA @ 5V
Terminal TypePCB-THT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future ElectronicsC0129301751.038200025TE Connectivity1.038 @ 2000
Newark11H51161.09200025OEG - TE CONNECTIVITY1.09 @ 1000
Allied ElectronicsE51701361.094200025TE Connectivity1.094 @ 2000
thumbzoomZoroG00101727192.95125Te Connectivity92.95 @ 25
