TE Connectivity / AMP 172023-1

B00FRC0BNM

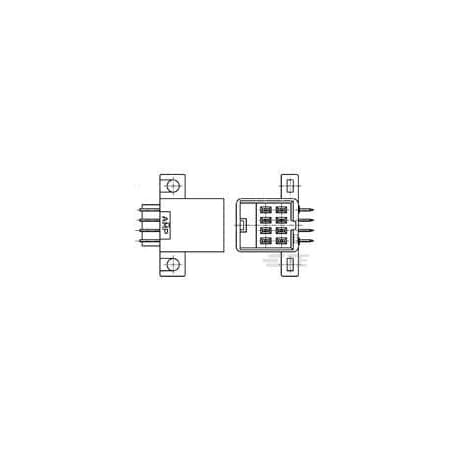

TE Connectivity / AMP Brand 172023-1 Connector Headers and PCB Receptacles

TE Connectivity / AMP Brand 172023-1 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
ApplicationsGeneral Purpose
Base Product Number172023
CategoryConnectors, Interconnec.
Connector Type-
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.335" (8.51mm)
Contact Length - Post0.157" (4.00mm)
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeMale Pin
Country of Origin (subj.Japan
Current Rating (Amps)5A
Fastening TypeLocking Ramp
FeaturesMounting Flange
Ingress Protection-
Insulation ColorBlack
Insulation Height0.713" (18.10mm)
Insulation MaterialPolyamide (PA66), Nylon.
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Positions36
Number of Positions Loa.All
Number of Rows2
Operating Temperature-30?C ~ 105?C
Overall Contact Length-
PackageTray
Part StatusActive
Pitch - Mating0.118" (3.00mm)
Row Spacing - Mating0.181" (4.60mm)
SeriesDLI (Dual Line Interloc.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating250VAC, 350VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key23108805.1294533333314402TE Connectivity AMP Connectors5.12945333333 @ 1440
Verical172023-15.2878TE Connectivity / AMP5.28 @ 7
Onlinecomponents.com172023-15.321141TE Connectivity / AMP Brand5.32 @ 2
HotendaH13545697.781480TE Connectivity AMP Connectors7.78 @ 2
Mouser571-172023-18.7611415TE Connectivity / AMP8.76 @ 2
Newark75AC58319.5414402AMP - TE CONNECTIVITY9.54 @ 1440
thumbzoomZoroG80106703210.9914402Te Connectivity10.99 @ 1440
