TE Connectivity 826631-3

B00KSVM5PE

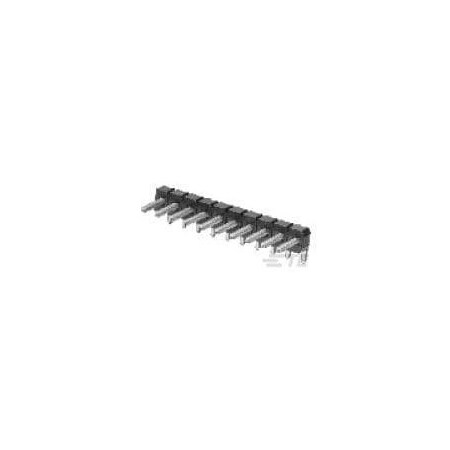

TE Connectivity Part Number 826631-3

TE Connectivity Part Number 826631-3zoom

Attributes

Key Value
Applications-
Base Product Number826631
CategoryConnectors, Interconnec.
Connector TypeHeader, Breakaway
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.3.90?in (0.099?m)
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Length - Mating0.264" (6.70mm)
Contact Length - Post0.126" (3.20mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.Poland
Current Rating (Amps)5A
DescriptionCONN HEADER R/A 3POS 2..
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA122656-ND
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorGreen
Insulation Height0.120" (3.05mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.826631-3
Manufacturer Standard L.24 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Positions3
Number of Positions Loa.All
Number of Rows1
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageBulk
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating-
SeriesAMPMODU Mod II
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 826631-30.22725010562TE CONNECTIVITY/AMP BRAND0.227 @ 250
Future ElectronicsC0129014340.230418000250TE Connectivity0.2304 @ 18000
us.rs-online.com720492790.2591518000250TE Connectivity0.25915 @ 18000
thumbzoomTME826631-30.2675250TE Connectivity0.267 @ 250
HotendaH13053440.311321250TE Connectivity AMP Connectors0.31132 @ 250
thumbzoomDigi-Key22761190.34825010562TE Connectivity AMP Connectors0.348 @ 250
thumbzoomZoroG7010451610.3718000250Te Connectivity0.37 @ 18000
Newark96Y48350.413110462AMP - TE CONNECTIVITY0.413 @ 250
