Texas Instruments BQ7694006DBT

B0137INOP4

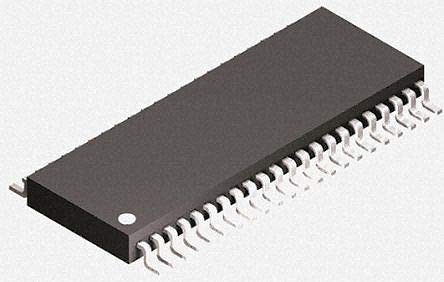

Texas Instruments BQ7694006DBT IC Batt MON Multi 9-15C 44TSSOP

Texas Instruments BQ7694006DBT IC Batt MON Multi 9-15C 44TSSOPzoom

Attributes

Key Value
Base Part NumberBQ7694
Base Product NumberBQ76940
Battery ChemistryMulti-Chemistry
Battery TypeLithium-Ion, Lithium-Ph.
BrandTexas Instruments
CaseTSSOP44
CategoryIntegrated Circuits (IC.
Dimensions7.9 x 4.5 x 1.05mm
Fault ProtectionOver Current, Over/Unde.
FunctionBattery Monitor
Height1.05mm
InterfaceI, I2C, I?C
Kind of integrated circ.Battery Monitor
Lead Free Status / RoHS.RoHS Compliant
Length7.9mm
ManufacturerTexas Instruments
Manufacturer Part NumberBQ7694006DBT
Maximum Operating Tempe.+85 ?C
Maximum Output Voltage3.6 V
MfrTexas Instruments
Minimum Operating Tempe.-40 ?C
Minimum Output Voltage0 V
MountingSMD
Mounting TypeSurface Mount
Number of Cells9 ~ 15
Number of rechargeable .9-15 x Li-FePO4,
Operating Temperature-40, -40?C ~ 85?C (TA)
Operating temperature-40...85?C
PackageTube
Package / Case44-TFSOP (0.173", 4.40m.
Package TypeTSSOP
PackagingTube
Pin Count44
Product StatusActive
Series-
Standard Package40
Supplier Device Package44-TSSOP
Type of integrated circ.Supervisor Integrated C.
Typical Operating Suppl.6 ? 25 V
Width4.5mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowBQ7694006DBT4.2612023Texas Instruments4.26 @ 120
thumbzoomRS Delivers162-81164.6264025Texas Instruments4.626 @ 40
Mouser595-BQ7694006DBT6.571274Texas Instruments6.57 @ 1
Digi-Key134334996.791In StockTexas Instruments6.79 @ 1
TMEBQ7694006DBT8.591In StockTEXAS INSTRUMENTS8.59 @ 1
HotendaH258494910.15132Texas Instruments10.15 @ 1
