Texas Instruments TPS71401DRVR

mpnTPS71401DRVR
brandname: Texas Instruments
manufacturername: Texas Instruments

TPS71401DRVR

TPS71401DRVR

zoom

Brand: Texas Instruments
PartNumber: TPS71401DRVR
Model: TPS71401DRVR
PackageQuantity: 1
Manufacturer: Texas Instruments
Label: Texas Instruments

Attributes

Key	Value
Alternate Part No.	595-TPS71401DRVR
Base Product Number	TPS71401, TPS714
Brand	Texas Instruments
Category	Integrated Circuits (IC.
Control Features	Current Limit
Current - Output	80mA
Current - Quiescent (Iq)	4.2?A, 4.2 ?A
Current - Supply (Max)	7.4 ?A, 7.4?A
Dropout Voltage - Max	1.3 V at 80 mA
Input Bias Current - Max	0.0032 mA
Input Voltage MAX	10 V
Input Voltage MIN	+ 2.5 V
Line Regulation	5 mV
Load Regulation	30 mV
Manufacturer	Texas Instruments
Manufacturer Part No.	TPS71401DRVR
Maximum Operating Tempe.	+ 125 C
Maximum Power Dissipati.	1.54 W
Mfr	Texas Instruments
Minimum Operating Tempe.	- 40 C
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of Outputs	1 Output
Number of Regulators	1
Operating Temperature	-40?C ~ 125?C
Output Configuration	Positive
Output Current	1.1 A
Output Type	Adjustable
Output Voltage	1.2 V to 8.8 V
Package	Tape & Reel (TR)

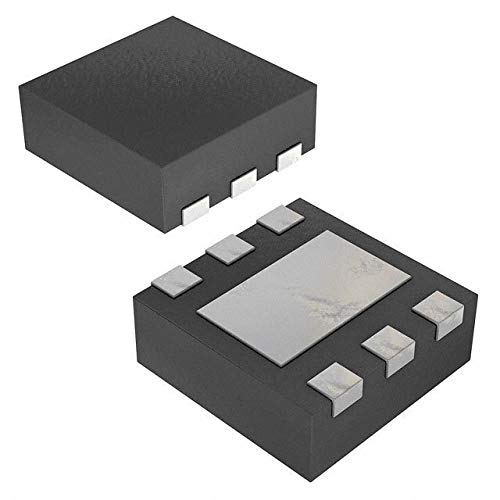

Package / Case	6-WDFN Exposed Pad
Package/Case	WSON-6
Packaging	Reel
Part Status	Active
Product Category	LDO Voltage Regulators
Product Status	Active
Protection Features	Over Current
PSRR	59dB ~ 54dB (120Hz)
Series	TPS71401, -
Supplier Device Package	6-WSON (2x2)
Unit Weight	9.700 mg
Voltage - Input (Max)	10V
Voltage - Output (Max)	8.8V
Voltage - Output (Min/F.	1.2V
Voltage Dropout (Max)	1.3V @ 80mA

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H2786359	0.2958	1	338		Texas Instruments		0.2958 @ 1
	Digi-Key	1986806	0.92	1	108		Texas Instruments		0.92 @ 1
	swatee.com	TPS71401DRVR	1.34	1	1808		Texas Instruments		1.34 @ 1
