- mpnEE609
- brandname: US Motors
- manufacturername: US Motors

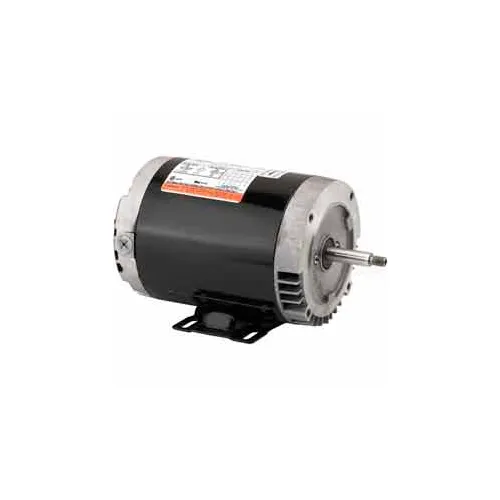

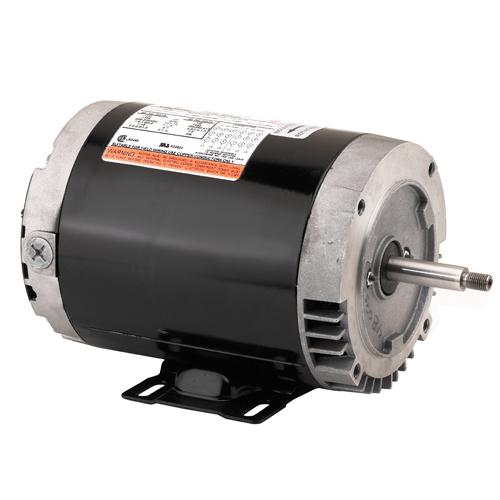

US Motors EE609
- PartNumber: EE609
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| AMP | 2.2, 4.3, 4.4 |
| Amps | 4.4-4.3/2.2 |
| Application | Commercial |
| Bearing Protection | Double Shield |
| Bearings | Ball |
| Body Dia. | 6.5 in |
| Bolt Circle Dia. | 5 7/8 in |
| CE Approved | No |
| Coating | Painted |
| Color Finish | Grey |
| Composition | Rolled Steel |
| Condensing | No |
| Conduit Box Location | Interior |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| CSA Certified | Yes |
| Diameter | 6-3/10 in |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 31.20 |
| Family Series | US Motors Motors |
| Fan Speeds | 1 |
| Finish | Not Found |
| FL Amps | 4.4-4.3/2.2 |
| FL Efficiency | 82.5 |
| For Pump Number | Not Found |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 4.4-4.3/2.2 |
| Gross Weight | 28.37 lbs |
| Height | 6 1/2 in, 19-1/2 in |
| Hertz | 50, 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1 1/2, 1-1/2 |
| Hz | 50/60, 60/50 |
| Indoor Outdoor | Indoor/Outdoor |
| Ins. Class | F |
| Installation Type | Flanged |
| Insulation Class | F |
| Inverter Rated | No |
| Inverter Rating | Blank |
| Item | Special Application Com. |
| Item Number | EE609 |
| Kilowatts | 1.1 kW |
| Length | 15-1/2 in |
| Length Less Shaft | 9 7/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | BK66 |
| Manufacturer Part Number | EE609 |
| Material | Steel |
| Max. Ambient Temp. | 104 Degrees F |
| Max. SF Amps | Not Found |
| Maximum Ambient Tempera. | 40? C |
| Model Number | BK66 |
| Motor Application | Commercial Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure | Open Drip Proof (ODP) |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Booster, Chiller, Conde. |
| Motor Thermal Protection | None |
| Mounting | Face, Footless |
| Mounting Type | Footless |
| Nameplate RPM | 3,520 |
| NEMA Design | C |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 82.5 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Origin | Global |
| Overall Box Size | 15-1/2 in x 12-1/2 in x. |
| Overall Length | 11 3/8 in |
| Part Number | EE609 |
| Phase | 3, Three, Three Phase |
| Power Source | Electric |
| Product Type | Motor, General Purpose,. |
| Rotation | Reversible |
| RPM | 3,520 RPM, 3450, 3520 |
| RPM Range | 1400 and Above, 3,001-3. |
| Service Factor | 1.00 |
| Service Factor @ 50Hz | 1 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 15/16 in, 2-3/50 in |
| Shaft Size | 5/8 in |
| Ship Weight | 28 lbs. |
| Speed (RPM) | 3450 |
| Temperature Range | -29 to 40 Deg C |
| Temperature Rating | 40 |
| Type | USMEE609 |
| UL Listed | No |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460, 190/380V. |
| Weight | 28.367, 28.4 lb |
| Width | 12-1/2 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1932641 | 389.0 | 1 | In Stock | | U.S. Motors | 28.5 | 389.0 @ 1 |
 | motorsandcontrol.com | EE609 | 452.73 | 1 | In Stock | | US Motors (Nidec) | 31.2 | 452.73 @ 1 |
 | Global Industrial | WBB466650 | 501.0 | 1 | In Stock | | US Motors | | 501.0 @ 1 |
 | emotorpro.com | EE609 | 504.38 | 1 | In Stock | | U.S. Motors | 28.0 | 504.38 @ 1 |
 | Galco | EE609-USM | 532.88 | 1 | In Stock | | US Motors | 28.37 | 532.88 @ 1 |
 | National Supply Network | B466650 | 542.61 | 1 | In Stock | | US MOTORS | | 542.61 @ 1 |
| motionindustries.com | 04385259 | 682.03 | 1 | In Stock | | US Motors (Nidec) | | 682.03 @ 1 |
| ferguson.com | 9581912 | 925.64 | 1 | In Stock | | US Motors | | 925.64 @ 1 |
