- mpnEE612
- brandname: US Motors
- manufacturername: US Motors

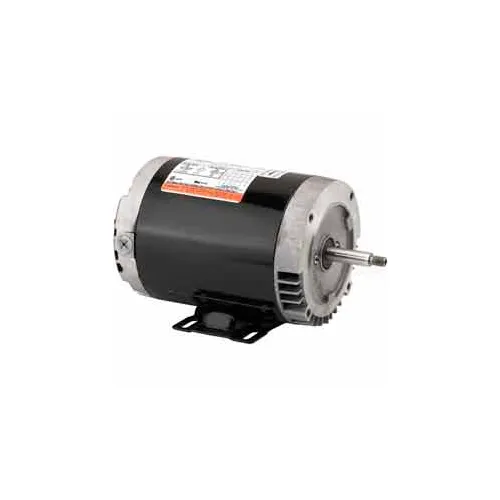

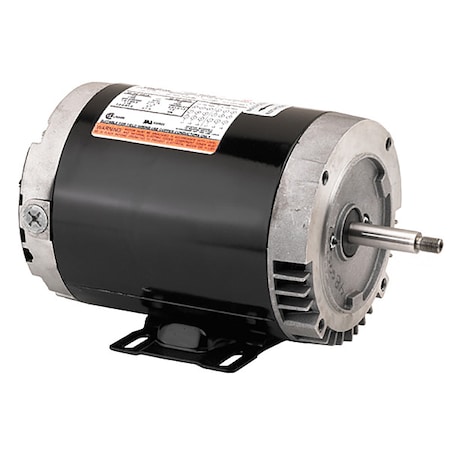

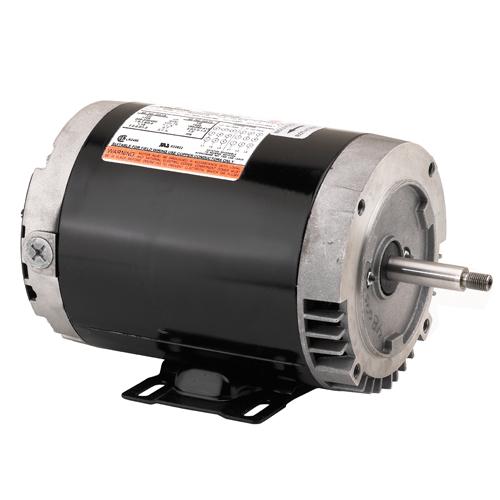

U.S. Motors US Motors Pump, 2 HP, 3-Phase, 3510 RPM Motor, EE612
- Brand: U.S. Motors
- PartNumber: EE612
- Binding: Misc.
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 5.5-5.1/2.5 |
| Bearing Protection | Double Shield |
| Bearings | Ball |
| Body Dia. | 6.5 in |
| Bolt Circle Dia. | 5 7/8 in |
| Composition | Rolled Steel |
| Conduit Box Location | Interior |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 102.71 |
| Family Series | US Motors Motors |
| Finish | Not Found |
| FL Amps | 5.5-5.1/2.5 |
| FL Efficiency | 85.5 |
| For Pump Number | Not Found |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 5.5-5.1/2.5 |
| Gross Weight | 93.37 lbs |
| Height | 6 1/2 in |
| Hertz | 50, 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| Inverter Rated | No |
| Inverter Rating | Blank |
| Item | Special Application Com. |
| Item Number | EE612 |
| Kilowatts | 1.5 kW |
| Length Less Shaft | 9 15/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | BK67 |
| Manufacturer Part Number | EE612 |
| Max. Ambient Temp. | 104 Degrees F |
| Max. SF Amps | Not Found |
| Maximum Ambient Tempera. | 40? C |
| Model Number | BK67 |
| Motor Application | Commercial Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Booster, Chiller, Conde. |
| Motor Thermal Protection | None |
| Mounting | Face, Footless |
| Mounting Type | Footless |
| Nameplate RPM | 3,510 |
| NEMA Design | C |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 85.5 % |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 11 7/8 in |
| Part Number | EE612 |
| Phase | 3, Three |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3510, 3,510 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.15 |
| Service Factor @ 50Hz | 1 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 15/16 in |
| Ship Weight | 93 lbs. |
| Speed (RPM) | 3450 |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
| Weight | 93.4 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1932921 | 444.0 | 1 | In Stock | | U.S. Motors | 93.5 | 444.0 @ 1 |
 | Global Industrial | WBB466651 | 591.0 | 1 | In Stock | 17 | US Motors | | 591.0 @ 1 |
 | motorsandcontrol.com | EE612 | 594.36 | 1 | In Stock | | US Motors (Nidec) | 102.71 | 594.36 @ 1 |
 | National Supply Network | B466651 | 660.09 | 1 | In Stock | | US MOTORS | | 660.09 @ 1 |
 | emotorpro.com | EE612 | 662.18 | 1 | In Stock | | U.S. Motors | 93.0 | 662.18 @ 1 |
 | Galco | EE612-USM | 699.58 | 1 | In Stock | | US Motors | 93.37 | 699.58 @ 1 |
| motionindustries.com | 04385260 | 895.4 | 1 | In Stock | | US Motors (Nidec) | | 895.4 @ 1 |
