- mpnUN12T2BC
- brandname: US Motors
- manufacturername: US Motors

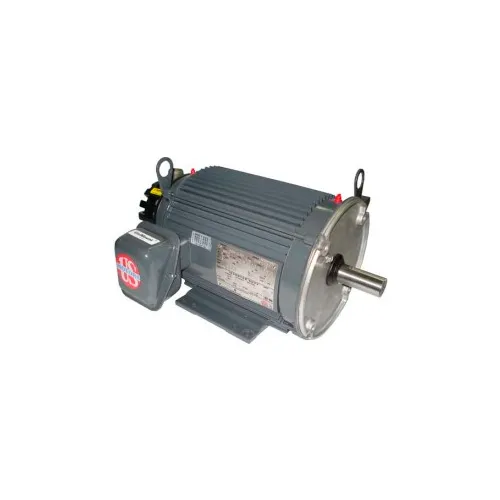

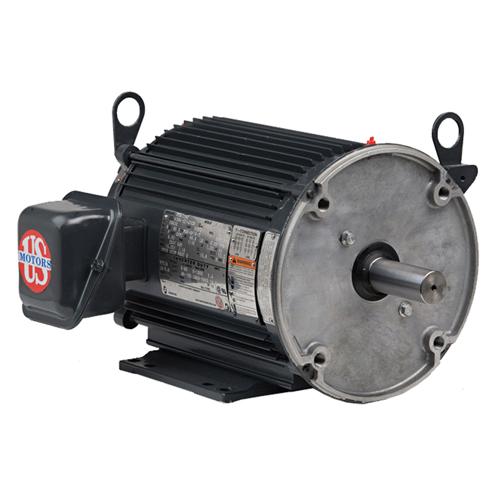

U.S. Motors US Motors ACCU-Torq Vector Duty, 0.5 HP, 3-Phase, 1750 RPM Motor, UN12T2BC
- Brand: U.S. Motors
- PartNumber: UN12T2BC
- Binding: Misc.
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 1.5/0.8 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 84% |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 49.50 |
| Family Series | US Motors Motors |
| FL Amps | 1.5/0.8 |
| FL Efficiency | 84 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 45 lbs |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,1/2HP,1800,23. |
| Item Number | UN12T2BC |
| Kilowatts | 0.4 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FD89 |
| Manufacturer Part Number | UN12T2BC |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FD89 |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Foot Mount |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | UN12T2BC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,750 RPM, 1750 |
| Service Factor | 1.00 |
| Ship Weight | 45 lbs. |
| Speed (RPM) | 1750 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467996 | 389.95 | 1 | In Stock | | US Motors | | 389.95 @ 1 |
 | emotorpro.com | UN12T2BC | 424.95 | 1 | In Stock | | U.S. Motors | 45.0 | 424.95 @ 1 |
 | Zoro | G0400511 | 436.49 | 1 | In Stock | | U.S. Motors | 45.0 | 436.49 @ 1 |
 | National Supply Network | B467996 | 440.04 | 1 | In Stock | | US MOTORS | | 440.04 @ 1 |
 | motorsandcontrol.com | UN12T2BC | 447.44 | 1 | In Stock | | US Motors (Nidec) | 49.5 | 447.44 @ 1 |
 | Galco | UN12T2BC-USM | 447.45 | 1 | In Stock | | US Motors | 45.0 | 447.45 @ 1 |
| Applied Industrial | 101546634 | 516.45 | 1 | In Stock | | U.S. Motors | | 516.45 @ 1 |
| motionindustries.com | 04030784 | 823.84 | 1 | In Stock | | US Motors (Nidec) | | 823.84 @ 1 |
