- mpnUN14T2BC
- brandname: US Motors
- manufacturername: US Motors

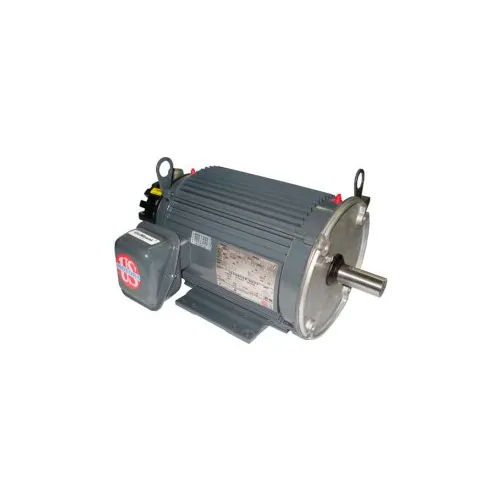

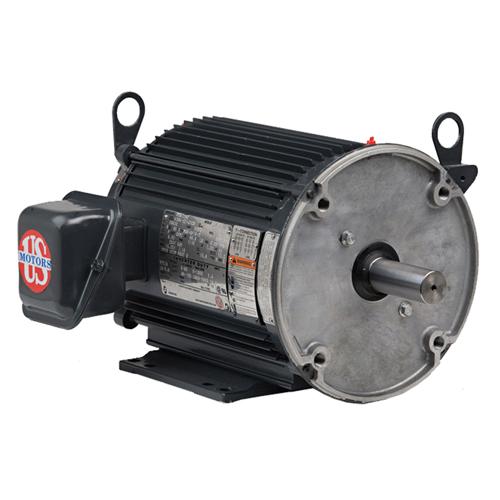

U.S. Motors US Motors ACCU-Torq Vector Duty, 0.25 HP, 3-Phase, 1765 RPM Motor, UN14T2BC
- Brand: U.S. Motors
- PartNumber: UN14T2BC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 1/0.5 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Efficiency | 77% |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 19.80 |
| Family Series | US Motors Motors |
| FL Amps | 1/0.5 |
| FL Efficiency | 77 |
| Frame | 56C, 56 |
| Frequency | 60 Hz |
| Gross Weight | 30 lbs |
| Hertz | 60 |
| Horsepower | 1/4 hp |
| HP | 0.25, 1/4 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| Item | Motor,3PH,1/4HP,1800,23. |
| Item Number | UN14T2BC |
| Kilowatts | 0.2 kW |
| Length Less Shaft | 12 9/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FD87 |
| Manufacturer Part Number | UN14T2BC |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FD87 |
| Motor Application | Cranes and Hoists, Indu. |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non-Ve. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Horizontal Footed |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Foot Mount |
| Nameplate RPM | 1,765 rpm |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 14 1/2 in |
| Part Number | UN14T2BC |
| Phase | 3, Three |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,765 rpm, 1765 |
| Service Factor | 1.00 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 15/16 in |
| Ship Weight | 30 lbs. |
| Speed (RPM) | 1765 |
| Standards | CSA Certified, UR |
| Voltage | 230V, 460V, 230/460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0400685 | 283.99 | 1 | In Stock | | U.S. Motors | 30.0 | 283.99 @ 1 |
 | Global Industrial | WBB468074 | 339.95 | 1 | In Stock | | US Motors | | 339.95 @ 1 |
 | emotorpro.com | UN14T2BC | 361.75 | 1 | In Stock | | U.S. Motors | 30.0 | 361.75 @ 1 |
 | Galco | UN14T2BC-USM | 369.08 | 1 | In Stock | | US Motors | 30.0 | 369.08 @ 1 |
 | motorsandcontrol.com | UN14T2BC | 369.08 | 1 | In Stock | | US Motors (Nidec) | 19.8 | 369.08 @ 1 |
 | National Supply Network | B468074 | 378.44 | 1 | In Stock | | US MOTORS | | 378.44 @ 1 |
| motionindustries.com | 04030779 | 679.57 | 1 | In Stock | | US Motors (Nidec) | | 679.57 @ 1 |
