- mpnUN1T2BC
- brandname: US Motors
- manufacturername: US Motors

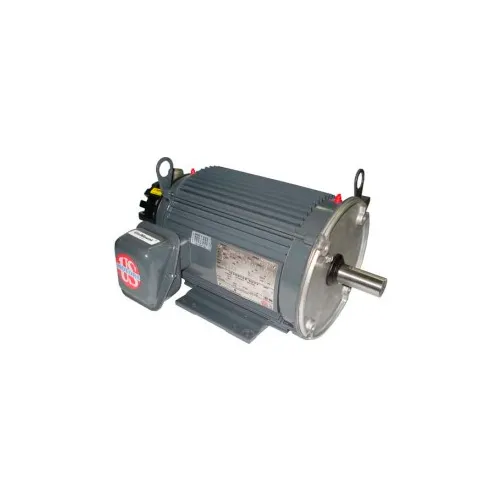

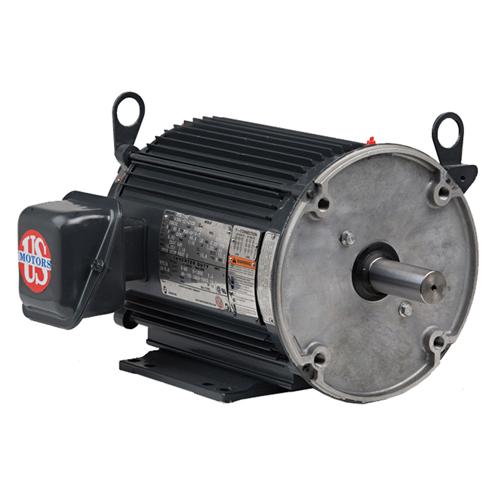

U.S. Motors US Motors ACCU-Torq Vector Duty, 1 HP, 3-Phase, 1755 RPM Motor, UN1T2BC
- Brand: U.S. Motors
- PartNumber: UN1T2BC
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 3.2/1.6 |
| Bearings | Ball |
| Composition | Aluminum |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 84% |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 28.60 |
| Family Series | US Motors Motors |
| FL Amps | 3.2/1.6 |
| FL Efficiency | 84 |
| Frame | 143TC |
| Frequency | 60 Hz |
| Gross Weight | 30 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,1HP,1800,230/. |
| Item Number | UN1T2BC |
| Kilowatts | 0.7 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FD93 |
| Manufacturer Part Number | UN1T2BC |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FD93 |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Foot Mount |
| NEMA Frame | 143TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | UN1T2BC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1755, 1,755 RPM |
| Service Factor | 1.00 |
| Ship Weight | 30 lbs. |
| Speed (RPM) | 1755 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0402499 | 399.0 | 1 | In Stock | | U.S. Motors | 30.0 | 399.0 @ 1 |
 | Global Industrial | WBB468075 | 465.95 | 1 | In Stock | 17 | US Motors | | 465.95 @ 1 |
 | emotorpro.com | UN1T2BC | 502.15 | 1 | In Stock | | U.S. Motors | 30.0 | 502.15 @ 1 |
 | National Supply Network | B468075 | 520.34 | 1 | In Stock | | US MOTORS | | 520.34 @ 1 |
 | Galco | UN1T2BC-USM | 528.72 | 1 | In Stock | | US Motors | 30.0 | 528.72 @ 1 |
 | motorsandcontrol.com | UN1T2BC | 528.72 | 1 | In Stock | | US Motors (Nidec) | 28.6 | 528.72 @ 1 |
| motionindustries.com | 04385824 | 973.51 | 1 | In Stock | | US Motors (Nidec) | | 973.51 @ 1 |
