- mpnC14858
- brandname: CLEVELAND
- manufacturername: CLEVELAND

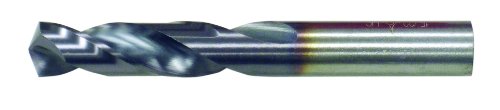

Cleveland C14858 M42 Cobalt Heavy Duty Screw Machine Length Drill Bit, TiCN Coated, Round Shank, Spiral Flute, 135 Degrees Split Point, 1/4" Size (Pack of 12)
- Brand: CLEVELAND
- PartNumber: C14858
- Model: C14858
- Size: 1/4 in
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries, Inc.
- Label: Greenfield Industries, Inc.
Attributes
| Key | Value |
|---|
| Applicable Materials | Carbon Steel, Cast Iron. |
| Application | For Drilling Carbon Ste. |
| Bit Dia. | 1/4"/E |
| Catalog Page | N/A |
| Construction | Heavy-Duty |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Depth | 1-3/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.2500, 0.2500" / 6.35mm |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter Wire | E |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | TiCN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 1/4 in |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0518 in |
| Drill Size - Decimal In. | 0.25 in |
| Drill Size - Letter | E |
| Drilling Length | 1-3/8" |
| Finish | TiCN Coated |
| Finish - Machining | TiCN |
| Flute Length | 1 3/8 in, 1-3/8 in |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 28 Degrees, 28 ? |
| Item | Screw Machine Drill Bit |
| Item? | 439X40 |
| Length of Flute | 1.3750" / 34.92mm |
| List Number | 2133-TC |
| List Style: | 2133-TC |
| Material | M42 HSS-Co 8, HSS-CO 8%. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 1 3/8 in, 1-3/8 in |
| Measurement System | Fractional Inch |
| Mfr. Model? | C14858 |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 2.5000" / 63.50mm, 2-1/. |
| Point | 135? Split |
| Point Angle | 135 deg |
| Point Type | Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P, K; M; N; P |
| Secondary Material Appl. | Nickel; Titanium, Nicke. |
| Secondary Material Appl. | S |
| Series | 2133-TC |
| Shank | Straight |
| Shank Dia. | 1/4 in |
| Shank Length | 1 1/8 in, 1-1/8 in |
| Shank Shape | Straight |
| Shank Size | 0.2500" / 6.35mm, 1/4 i. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | 1/4" |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M-1993 |
| Style | 2133-TC |
| Surface Condition | TiCN |
| Tool Size | 1/4"-E |
| Type | General Purpose Heavy D. |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6111137 | 7.82 | 5 | 12 | | Cleveland | | 7.82 @ 12 |
 | Megadepot | C14858 | 9.31 | 1 | 12 | | Cleveland | | 9.31 @ 12 |
 | sustainablesupply.com | C2974923 | 9.51 | 1 | 12 | | Cleveland | 0.01 | 9.51 @ 12 |
 | usmegastore.com | C14858 | 9.52 | 1 | 12 | | Cleveland | | 9.52 @ 12 |
 | Zoro | G3003353 | 10.5 | 12 | 12 | 8 | Cleveland | 0.01 | 10.5 @ 12 |
| Grainger | 439X40 | 12.33 | 1 | 12 | | CLEVELAND | | 12.33 @ 12 |
