Bussmann SD25-3R3-R

mpnSD25-3R3-R
brandname: EATON COILTRONICS
manufacturername: EATON COILTRONICS

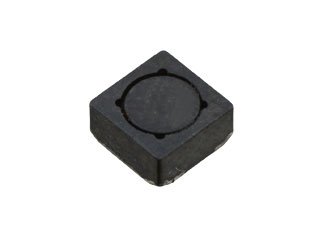

BUSSMANN SD25-3R3-R SD Series 3.3 uH ?20 % Tolerance 2.64 A Shielded SMT Low Profile Power Inductor - 2900 item(s)

zoom

Brand: Bussmann
PartNumber: SD25-3R3-R
Model: SD25-3R3-R
PackageQuantity: 1
Manufacturer: BUSSMANN
Label: BUSSMANN

Attributes

Key	Value
Alternate Part No.	704-SD25-3R3-R
Brand	Coiltronics / Eaton
Case Height	2.5 mm
Case Length	5.2 mm
Case Width	5.2 mm
Category	Inductors, Coils, Chokes
Current - Saturation	2.21A
Current - Saturation (I.	2.21A
Current Rating (Amps)	2.64 A, 2.64A
DC Resistance (DCR)	38.4mOhm
Frequency - Self Resona.	-
Height - Seated (Max)	0.098" (2.50mm)
Inductance	3.3 uH, 3.3 ?H, 3.3
Inductance Frequency - .	100kHz, 100 kHz
Lead Free Status / RoHS.	RoHS Compliant
Manufacturer	Eaton
Manufacturer Part No.	SD25-3R3-R
Manufacturer Part Number	SD25-3R3-R
Manufacturer Standard L.	14 Weeks
Material - Core	Ferrite
Maximum DC Current	2.21 A
Maximum DC Resistance	38.4 mOhms
Mfr	Eaton - Electronics Div.
Mounting Type	Surface Mount
Operating Temperature	-40?C ~ 85?C, -40
Package	Tape & Reel (TR)
Package / Case	Nonstandard
Packaging	Reel
Product Category	Fixed Inductors
Product Status	Active
Q @ Freq	-
Ratings	-
Series	SD
Shielding	Shielded
Size / Dimension	0.205" L x 0.205" W (5..
Standard Package	2,900
Supplier Device Package	-
Termination Style	SMD/SMT
Tolerance	?20%, 20 %
Type	Wirewound, Drum Core, W.
Unit Weight	453.592 mg

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H2146086	1.309	1	2900		Eaton (formerly Cooper Bussmann)		1.309 @ 2900
	Future Electronics	6957666	1.332	2900	2900		Eaton		1.332 @ 2900
	Digi-Key	3313788	1.3605	1	2900		Eaton - Electronics Division		1.3605 @ 2900
	Waldom	Eaton Electronics SD25-3R3-R	1.39	2900	2900		Eaton Electronics		1.39 @ 2900
	iodParts	SD25-3R3-R	1.418	2900	2900		Eaton		1.418 @ 2900
	Newark	52K7757	1.92	2900	2900		EATON COILTRONICS		1.92 @ 2900
	swatee.com	SD25-3R3-R	4.26	1	2900		Eaton		4.26 @ 2900
