Leeson 121881.00

B00EP3AEE0

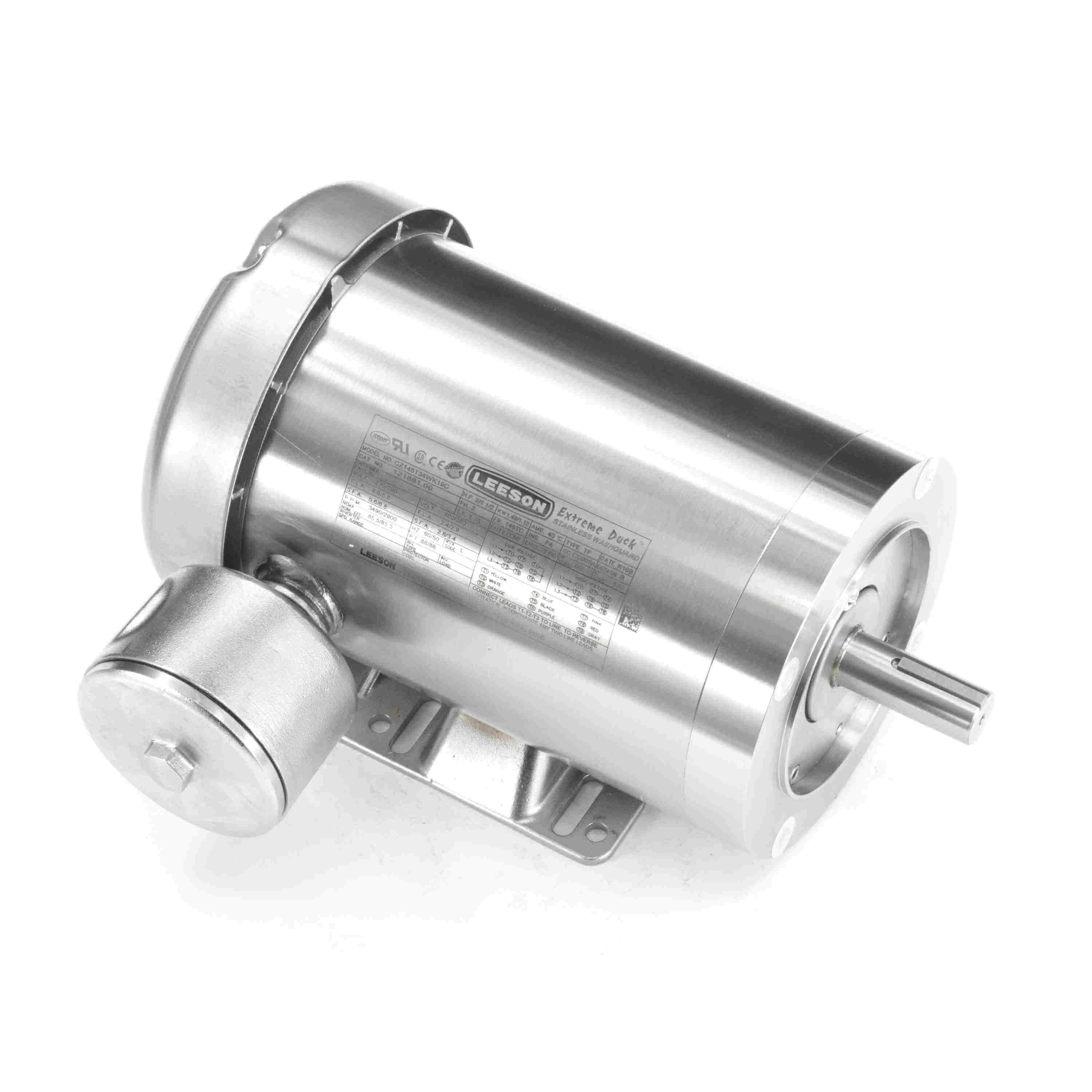

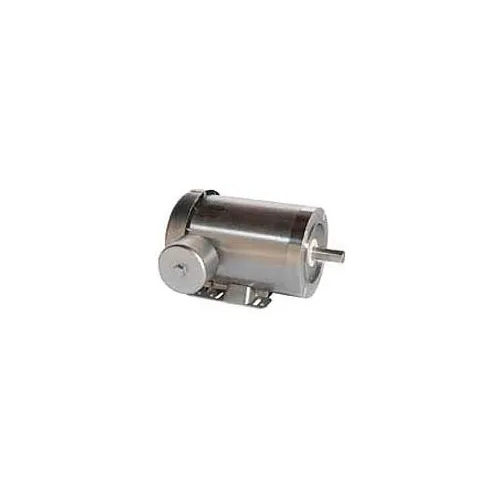

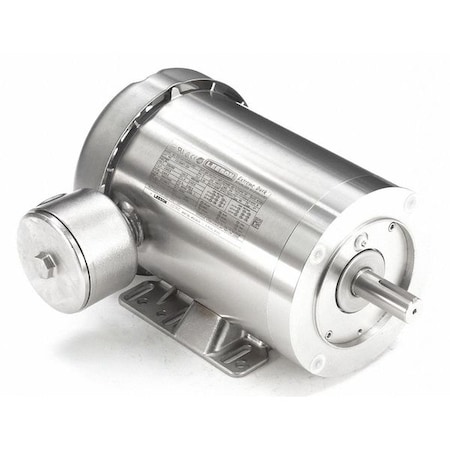

Leeson 121881.00 Extreme Duck Washguard Motor, 3 Phase, 145TC Frame, Rigid Mounting, 2HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 121881.00 Extreme Duck Washguard Motor, 3 Phase, 145TC Frame, Rigid Mounting, 2HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating4.8/2.4 A
ApprovalsCSA, UL
Bearing TypeDouble Sealed, Ball
Body Dia.6.56 in
Bolt Circle Dia.5 7/8 in
Class/GroupCZ145T34WK19
CompositionSteel
ConstructionRolled Steel
Description:..2HP..3490RPM.145.TEFC.
Dimensions12.75 in L x 7.15 in H
Drain PlugsNone
Drive End Flange TypeC-Face
DutyContinuous
Efficiency %85.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight56.00
Family SeriesLeeson Motors, Extreme .
FL Amps4.8/2.4&5.8/2.9
FL Efficiency85.5
Frame145TC
Frame MaterialStainless Steel
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz50, 60
Horsepower2 hp
HP2
Hz60
Insulation ClassClass F
Inverter RatedYes
ItemWashdown Motor
Item Number121881.00
Length Less Shaft10 3/4 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number121881.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
MFG Part #:121881.00
Model NumberCZ145T34WK19
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA DesignB
NEMA Frame145TC
Net Weight56 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles2
Number of Speeds1
Overall Length12.75 ", 12 3/4 in
Part Number121881.00
Phase3, Three, 3 ph
Product SeriesExtreme Duck
Product TypeWashdown Duty
RotationReversible
RPM3400 - 3600, 3,600 RPM
RPM Range3,001-3,600
Service Factor1.15
Shaft Dia.7/8 in
Shaft DiameterUL;CSA
Shaft Length2 1/4 in
Shaft Size0.88 in Dia x 2.25 in L
Speed3490 rpm
Speed (RPM)3490
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720989302
Voltage190V, 230V, 380V, 460V,.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com1218811007.01In StockLEESON1007.0 @ 1
thumbzoomZoroG21697271309.991In StockLeeson53.01309.99 @ 1
thumbzoomMRO Supply25262951370.431In StockLeeson1370.43 @ 1
AmazonTPB00EP3AEE01621.91In Stock30Leeson1621.9 @ 1
thumbzoommotorsandcontrol.comLE-121881.001773.5144Leeson Electric56.01773.5 @ 1
us.rs-online.com733968521787.431In StockLeeson1787.43 @ 1
thumbzoomGalco121881.00-LEES1787.431In StockLeeson56.01787.43 @ 1
kscdirect.comLEE 121881.001848.861In StockLEESON ELECTRIC CORPORATION1848.86 @ 1
thumbzoomWalker Industrial121881-002110.531In Stock17Leeson2110.53 @ 1
thumbzoomcbtcompany.com121881.002145.371In StockLeeson Electric2145.37 @ 1
thumbzoomGlobal IndustrialWBB5883632599.01In StockLeeson2599.0 @ 1
thumbzoomRaptor SuppliesAE7DYX3364.117381In StockLEESON3364.11738 @ 1
