MAGNECRAFT 788XBXRC1-120A

B076C8XP8Q

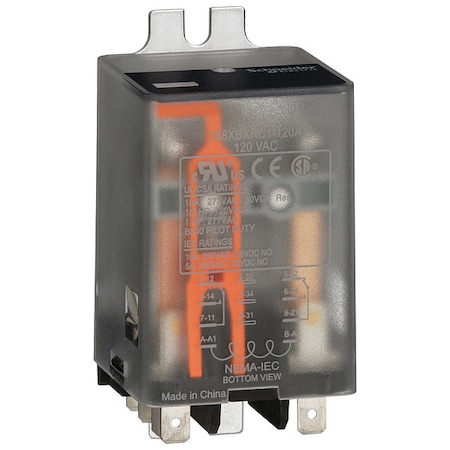

Relay, Side Flange, 3VA, DPDT, 120VAC

Relay, Side Flange, 3VA, DPDT, 120VACzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 277V, 10 A @ 277V
Body Depth1.9 in
Body Depth - Relay1.40 in, 1.4 in
Body Height1.4 in
Body Height - Relay2.75 in
Body Width1.38 in
Body Width - Relay1.37 in
BrandSchneider Electric
Coil Voltage120 VAC ; 110/115/120/1.
Coil Volts120V AC
Contact Current Rating10 A
Contact FormDPDT
Contact Form - RelayDPDT
Contact MaterialSilver Alloy
Contact Rating10A @ 277VAC/30VDC
Contact Voltage Rating300 VAC
Control Voltage120
Current Rating10 A
Current Stock9
DC Contact Rating - Rel.10 A @ 28V, 10A @ 28V
Electrical Connection0.187 in Quick Connect .
Family SeriesSchneider Electric
Flat Pin Width0.189 in
FunctionGeneral Purpose
Gross Weight0 lbs
HP @ 120V1/3 hp, 1/3
International ShippingNo
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
Item Number788XBXRC1-120A
Lead TimeExpected to ship in 1-2.
ManufacturerSchneider Electric
Manufacturer Part NumberC887488M
Mounting - RelaySide Flange
Mounting TypeSocket Mount
Mpn788XBXRC1-120A
Net Weight0 lbs
Number of Pins - Relay8
Overall Depth2.77 in
Overall Height - Relay2.75 in
Power Consumption - Rel.3.0 VA
Primary TypePower Relays
Product Header788 Series Side Flange .
Relay TypeElectromechanical
Series788R Series
SKUZO-G9784372
StandardsUL, CSA, CE Marked, UL .
Status IndicatorMechanical Flag
SubCategoryElectrical
TerminationQC Tabs
Voltage Rating300 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com788XBXRC1-120A12.391In StockMagnecraft / Schneider Electric12.39 @ 1
Grainger35KR5516.31160MAGNECRAFT16.31 @ 1
thumbzoomZoroG978437217.99140Schneider Electric0.1717.99 @ 1
thumbzoomGalco788XBXRC1-120A-MGCR20.5910In StockSchneider Electric20.59 @ 10
grainger.caWWG35KR5523.11692111In StockMAGNECRAFT0.1723.1169211 @ 1
thumbzoomNewark36X198225.2310In StockSCHNEIDER ELECTRIC/LEGACY RELAY25.23 @ 10
us.rs-online.com7036391926.64127Schneider Electric/Legacy Relays26.64 @ 1
thumbzoomsimsupply.comZO-G978437228.3319Schneider Electric28.33 @ 1
thumbzoomRaptor SuppliesAH4TNC33.19646851In StockSCHNEIDER ELECTRIC33.1964685 @ 1
