Molex 43045-0820

mpn0430450820
brandname: Molex
manufacturername: Molex

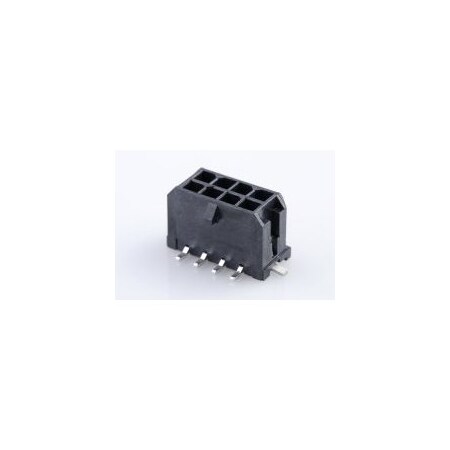

Molex Connector, Header, 8Pos, 2Row, 3Mm - 43045-0820

Brand: Molex
PartNumber: 43045-0820
PackageQuantity: 1
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Alternate Mfr Part Numb.	43045-0820
Applications	Automotive, General Pur.
Base Product Number	043045
Category	Connectors, Interconnec.
Color	Black
Connector	socket
Connector pinout layout	2x4
Connector series	Micro-Fit 3.0
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	-
Contact Material	Brass Alloy
Contact Plating Thickne.	0.762 ?m
Contact Shape	Square
Contact Type	Male Pin
Contacts pitch	3mm
Current Rating	8.5 A
Current Rating (Amps)	Varies by Wire Gauge
Description	CONN HEADER SMD 8POS 3MM
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	23-0430450820TR-ND - Ta.
Family Name	Micro-Fit 3.0
Fastening Type	Locking Ramp
Features	Glow-Wire Capable, Sold.
Flammability Rating	UL 94V-0
Hole Center to Center	3 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.390" (9.91mm)
Insulation Material	Liquid Crystal Polymer .
Kind of connector	male
Locking system	for latch
Manufacturer	MOLEX
Manufacturer Product Nu.	0430450820
Manufacturer Standard L.	19 Weeks
Mated Stacking Heights	-
Material	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	600V
Mfr	MOLEX
Mounting Type	Surface Mount
Number of Circuits	8
Number of Contacts	8
Number of pins	8
Number of Positions	8
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40?C ~ 105?C
Orientation	Vertical
Overall Contact Length	-
Package	Tape & Reel (TR)
Package Quantity	1
Pitch	3.00 mm (0.118")
Pitch - Mating	0.118" (3.00mm)
Plating Material	Gold
Primary Type	Soft Shell
Product Status	Active
Row Spacing - Mating	0.118" (3.00mm)
Series	Micro-Fit 3.0 43045, 43.
Shrouding	Shrouded - 4 Wall
Special Features	Low-Halogen
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Solder, Surface Mount
Type	Vertical Header
Type of connector	wire-board
UPC Code	800754372084
Voltage Rating	600V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Newark	99Y4484	0.608	1	2		MOLEX	0.608 @ 1
Waldom	MOLEX 43045-0820	1.97	1400	7000		MOLEX	1.97 @ 1400
jensentools.com	10189304	2.63	1	7000		Molex	2.63 @ 1
NEP Electronics	43045-0820	2.7353	1400	7000		Molex	2.7353 @ 1400
us.rs-online.com	70091037	3.75	1	26		Molex Incorporated	3.75 @ 1
TME	MX-43045-0820	3.86	1	26		MOLEX	3.86 @ 1
Digi-Key	1835492	4.7	1	6361		Molex	4.7 @ 1
Radwell	43045-0820	5.0	200	26		MOLEX	5.0 @ 200
RS Delivers	670-1976P	5.3604	1	885		Molex	5.3604 @ 1
AmazonTP	B00DWIF4HG	7.12	1	26	2	MOLEX	7.12 @ 1
Zoro	G4035461	3990.0	1400	In Stock		Molex	3990.0 @ 1400
