NTN UELPL-1.3/4M

B017UJUFLM

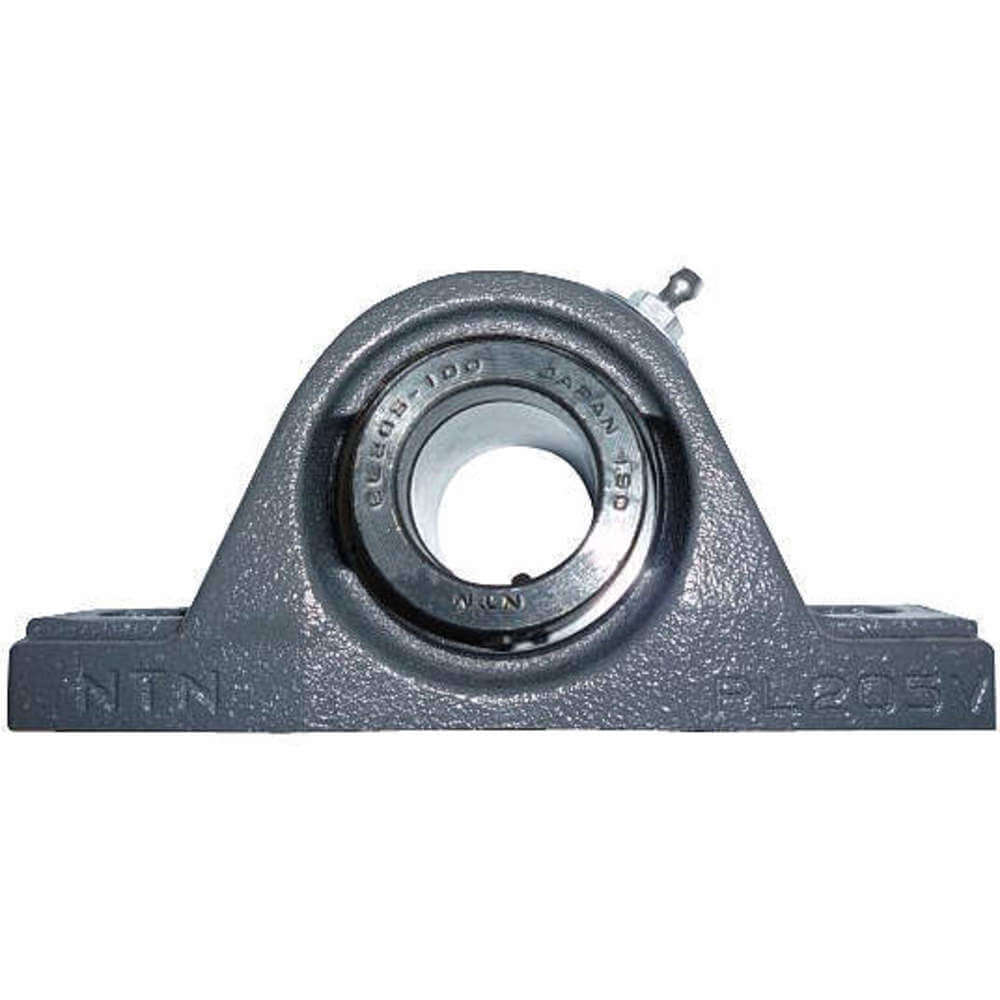

Pillow Block Bearing, Ball, 1-3/4" Bore

Pillow Block Bearing, Ball, 1-3/4" Borezoom

Attributes

Key Value
Base Height0.779 in
Base Width2.126 in
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Chrome Steel
Bearing Insert TypeBall
Bearing LubricationShell Alvania #3 or NLG.
Bearing Material Grade52100
Bolt Hole Center-to-Cen.5 7/8 in
Bolt Size1/2 in
Bore Dia.1 3/4 in
Bore Diameter1 3/4 in
Bore TypeCylindrical
Center Height2.062 in
ClosureOpen
Country of Origin (subj.Japan
Dimension A2 1/8 in
Dimension B2 7/32 in
Dimension D1 3/4 in
Dimension E117 mm
Dimension H2 1/16 in
Dimension H125/32 in
Dimension H24 3/32 in
Dimension J5 7/8 in
Dimension L7 15/32 in
Dimension N9/16 in
Dimension S27/32 in
Dynamic Load Capacity7,350 lb
Dynamic Radial Load Cap.7,306 lbf
FeaturesLight Duty
FinishPainted
Housing MaterialCast Iron
Housing Material FinishBlack Oxide
ItemPillow Block Bearing
Locking TypeEccentric Locking Collar
Lubricant MaterialNLGI #3 Equivalent
Maximum Speed3,500 RPM
Maximum Temperature250 Degrees F
Minimum Temperature-40 Degrees F
Mount Hole Center-to-Ce.5.874 in
Mount Hole Size0.563 in x 1.126 in
Mount TypeBolt-Through
Mounting Bolt Size1/2 in
Mounting Surface to Sha.2 1/8 in
Number of Bolts2
Number of Mount Holes2
Overall Height4 3/32 in
Overall Length7 15/32 in
Overall Width2 1/8 in
Seal MaterialNitrile Rubber
Seal TypeContact
SeriesStandard Duty
Shaft Locking TypeEccentric Collar
Static Load Capacity4,600 lb
Static Radial Load Capa.4,586 lbf
System of MeasurementInch
Temp. Range-20 Degrees to 250 Deg.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3053617134.531In Stock26Ntn5.75134.53 @ 1
thumbzoomRaptor SuppliesAE6HQE190.1282761In StockNTN190.128276 @ 1
