Panduit LCAXN750-12-3

B00B5O8IC2

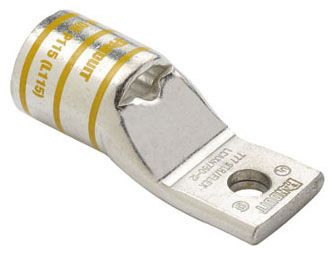

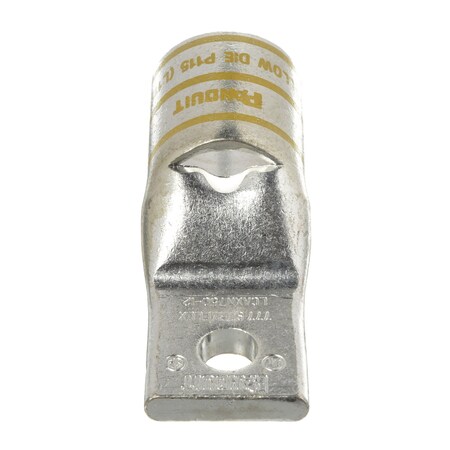

Panduit LCAXN750-12-3 Flex Conductor Lug, One Hole, Standard Barrel With Window, Narrow Tongue, 777.7 kcmil Diesel Locomotive Flex Conductor Lug Size, 1/2" Stud Hole Size, Yellow, 1-3/4" Wire Strip Length, 0.33" Tongue Thickness, 1.50" Tongue Width, 1.66" Neck Length, 3.94" Overall Length

Panduit LCAXN750-12-3 Flex Conductor Lug, One Hole, Standard Barrel With Window, Narrow Tongue, 777.7 kcmil Diesel Locomotive Flex Conductor Lug Size, 1/2" Stud Hole Size, Yellow, 1-3/4" Wire Strip Length, 0.33" Tongue Thickness, 1.50" Tongue Width, 1.66" Neck Length, 3.94" Overall Lengthzoom

Attributes

Key Value
Allowable Gauge Range750
ApprovalsCSA, UL
Base Product NumberLCAX
CategoryConnectors, Interconnec.
ColorYellow
Color CodeYellow
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
Diameter - Barrel ID1.170" (29.72mm)
Diameter - Barrel OD1.500" (38.10mm)
Diameter - Ring ID0.530" (13.46mm)
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight2.4 lbs
InsulationNon-Insulated
Item NumberLCAXN750-12-3
Length - Overall3.940" (100.08mm)
ManufacturerPanduit
Manufacturer Part NumberLCAXN750-12-3
MaterialCopper
Material/CompositionCopper
Max Conductor Range777.7 kcmil
MfrPanduit Corp
Min Conductor Range777.7 kcmil
Mounting1-Hole
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
Number of Conductors1
Number of Holes1
PackageBulk
Product SeriesPan-Lug Compression
Product StatusActive
RoHS CompliantYes
SeriesPan-Lug?
Stud Size1/2 in
Stud/Tab Size1/2 Stud
Tab Thickness0.330" (8.38mm)
Terminal StyleSingle Stud Hole
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Width - Outer Edges1.500" (38.10mm)
Wire Gauge750MCM (kcmil)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCAXN750-12-332.251In StockPANDUIT32.25 @ 1
Digi-Key456501954.966673In Stock33Panduit Corp54.96667 @ 3
Onlinecomponents.comLCAXN750-12-356.11In StockPanduit56.1 @ 1
Newark72P179667.391In StockPANDUIT67.39 @ 1
thumbzoomZoroG275598975.241In Stock210Panduit75.24 @ 1
thumbzoomPlatt.com068723076.231In StockPanduit76.23 @ 1
thumbzoomGalcoLCAXN750-12-3-PNDT78.813In StockPanduit2.478.81 @ 3
Airline HydraulicsPANDUIT LCAXN750-12-386.351In StockPanduit Corp86.35 @ 1
thumbzoomgordonelectricsupply.comLCAXN750-12-3225.751In Stock12PANDUIT225.75 @ 1
