Potter & Brumfield D634596-KRPA-14DG-48

mpnKRPA-14DG-48
brandname: POTTER BRUMFIELD
manufacturername: POTTER BRUMFIELD

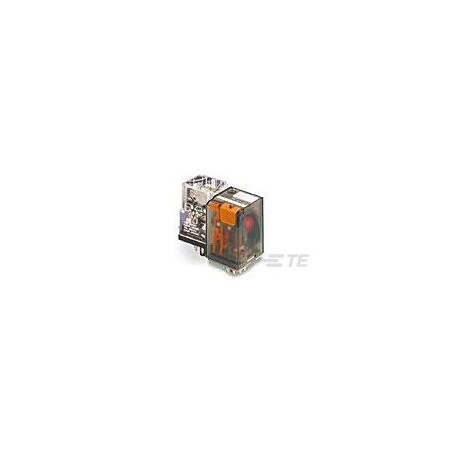

POTTER BRUMFIELD KRPA-14DG-48 Relay 48V-DC D634596

Brand: Potter & Brumfield
PartNumber: D634596-KRPA-14DG-48
PackageQuantity: 1
Manufacturer: POTTER BRUMFIELD
Label: POTTER BRUMFIELD

Attributes

Key	Value
Alternate Mfr Part Numb.	KRPA-14DG-48
Alternate Part No.	655-KRPA-14DG-48
Body Depth - Relay	1.406 in
Body Height - Relay	2 in
Body Width - Relay	1.405 in
Brand	TE Connectivity / P&B
Coil Current	26.6 mA, 26.7 mA
Coil Insulation	Class B
Coil Resistance	1.8 kOhms, 1800 Ohms, 1.
Coil Termination	Plug Pin
Coil Type	Non-Latching, Non Latch.
Coil Voltage	48VDC, 48 VDC
Coil Volts	48V DC
Connector Type	Connector Assembly
Contact Current Rating	3 A, 10 A
Contact Form	3PDT (3 Form C)
Contact Form - Relay	3 Form C (CO)
Contact Limiting Breaki.	10A
Contact Limiting Contin.	10A
Contact Limiting Making.	10A
Contact Limiting Short-.	10A
Contact Material	Silver Cadmium Oxide (A.
Contact Rating	10A
Contact Rating (Current)	10 A
Contact Shape	Square
Contact Termination	Plug In
Contact Type	Pin
Contact Voltage Rating	300, 240V AC
Current Rating	10 A
Dielectric Voltage	1000 Vrms Adjacent Cont.
Features	-, UL Coil Insulation C.
Gasket	Without
Header Type	Shrouded
Height	34.9 mm
Housing Style	4-Sided
Item - Relay	KRPA Series Panel Plug-.
Length	48.8 mm
Manufacturer	TE Connectivity
Manufacturer Part No.	KRPA-14DG-48
Maximum Switching Curre.	10 A
Mfr	TE Connectivity Potter .
Mounting Style	Socket
Mounting Type	Socketable, Socket, DIN.
Must Operate Voltage	36 VDC
Must Release Voltage	-
Number of Poles	3
Number of Positions	6
Number of Rows	1
Operating Temp. Range	50 to 70?C
Operating Temperature	-45?C ~ 70?C
Package Type	Tube
Part # Aliases	8-1393104-5
Part Status	Active
Power Consumption	1.2 W
Power Consumption - Rel.	1300 mW
Primary Type	Standard Circular
Product	Power Relays
Product Category	General Purpose Relays
Product Type	Connector
Profile	Standard
Protection Category	RTI
Relay Type	General Purpose
Seal Rating	-
Series	KRPA
Strain Relief	Without
Switching Current	300mA @ 12V
Switching Voltage	240VAC - Max, 240 VAC
Terminal Type	Plug-In
Termination Style	Plug Pin, Plug In, 11 P.
Type	Cube Style
Width	37.3 mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Onlinecomponents.com	8-1393104-5	26.39	1	20	TE Connectivity / AMP Brand	26.39 @ 1
Component Electronics	710-48V-58	26.92	1	2	Potter & Brumfield	26.92 @ 1
NRI Industrial	D634596	29.94	1	In Stock	POTTER BRUMFIELD	29.94 @ 1
Waldom	TE CONNECTIVITY POTTER-BRUMFIELD KRPA-14DG-48	31.54	34	76	TE CONNECTIVITY / POTTER-BRUMFIELD	31.54 @ 2
TTI	KRPA-14DG-48	32.46	100	In Stock	TE Connectivity	32.46 @ 100
Newark	17M0210	38.19	1	26	POTTER&BRUMFIELD - TE CONNECTIVITY	38.19 @ 1
Digi-Key	PB1453-ND	39.82	1	In Stock	TE Connectivity Potter & Brumfield Relays	39.82 @ 1
us.rs-online.com	71210828	40.96	1	150	TE Connectivity	40.96 @ 1
swatee.com	KRPA-14DG-48	42.28	1	2	TE Connectivity	42.28 @ 1
Zoro	G005866752	82.38	1	In Stock	Potter-Brumfield	82.38 @ 1
