Ruland FSR12-3-3-SS

B0060LU77E

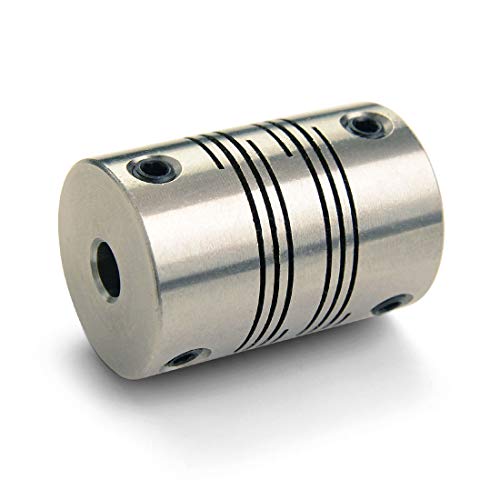

Ruland FSR12-3-3-SS Set Screw Beam Coupling, Stainless Steel, Inch, 3/16" Bore A Diameter, 3/16" Bore B Diameter, 3/4" OD, 1-1/4" Length, 41 lb-in Nominal Torque

Ruland FSR12-3-3-SS Set Screw Beam Coupling, Stainless Steel, Inch, 3/16" Bore A Diameter, 3/16" Bore B Diameter, 3/4" OD, 1-1/4" Length, 41 lb-in Nominal Torquezoom

Attributes

Key Value
Angular Misalignment3?
Axial Motion0.005 in
B1 Max Shaft Penetration0.607 in
B2 Max Shaft Penetration0.607 in
Bore (B1)0.1875 in
bore - side 1:0.1875 in
bore - side 2:0.1875 in
Bore Dia.3/16 in x 3/16 in
Bore Tolerance+0.001 in / -0.000 in
bore tolerance:+.001 / -.000 in
CategoryHardware, Fasteners, Ac.
Clearance Dia. (In.)0.879 in
Clearance Dia. (mm)22.33
Country of OriginUSA
Country of Origin (subj.United States
Description3/16"X3/16" STAINLESS B.
Digi-Key Part Number3188-FSR12-3-3-SS-ND
Dynamic Torque Non-Reve.20.5 lb-in
Dynamic Torque Reversing10.25 lb-in
FinishBright
Finish SpecificationBright, No Plating
Forged Set ScrewM4
Full Bearing Support Re.Yes
harmonization code:8483608000
Hex Wrench Size2.0 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)1.250 in
Length through Bore0.593 in
Length through Bore (In.0.593
Length through Bore (mm)15.06
ManufacturerRuland Manufacturing
Manufacturer Product Nu.FSR12-3-3-SS
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
material:303 Stainless Steel
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.005
Max. Bore (In.)0.188 in
Max. Parallel Misalignm.0.008 in
Max. RPM6,000 RPM
Max. Temp.350 Degrees F
Max. Temp. Range (F)350 Degrees
maximum angular misalig.3
maximum parallel misali.0.008 in
maximum rpm:6000 rpm
Maximum Speed6,000 RPM
MfrRuland Manufacturing
Min. Bore (In.)0.188 in
Moment of Inertia0.0100 lb-in
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
number of beams:Six Beam
Number of Screws2 ea
operating temperature:-40 to +350
Outer Diameter (OD)0.750 in
Outside Dia.0.75 in
Outside Dia. (In.)0.75
Outside Dia. (mm)19.1
outside diameter:0.7500 in
Overall Length1.25 in
Overall Length (In.)1.25
Overall Length (mm)31.8
overall length:1.2500 in
PackageBag
Parallel Misalignment0.008 in
Product StatusActive
Rated Torque41 in-lb
Recommended Shaft Toler.+0.0000 in / -0.0005 in
screw clamp type:Set Screw Type
Screw FinishBlack Oxide
Screw MaterialAlloy Steel
Screw SizeM4
Screw Size (mm)M4
screw thread size:M4
Screw TypeSet Screw
Seating Torque1.76 Nm
Series-
Setscrew Location2 (120 Degrees )
Shaft Locking Type - Co.1 Piece Set Screw
SizeFSR12
Small Bore (B2)0.1875 in
Specifications0.750" (19.05mm) Outer .
Static Torque41 lb-in
Style6-Beam Set Screw
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Torque (In.-Lbs.)41
Torsional Stiffness0.079 Deg/lb-in
Torsional Stiffness (De.0.079
torsional stiffness:0.079 in-lb/deg
TypeBeam Coupling
UNSPC31163003
UPC634529046968
Weight (lbs)0.130300
weight:0.245 lb
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG833463693.01In Stock10Ruland0.0993.0 @ 1
thumbzoomcbtcompany.comFSR12-3-3-SS102.41In StockRULAND MANUFACTURING102.4 @ 1
thumbzoommotionindustries.com02336738102.841In StockRuland Manufacturing Co Inc102.84 @ 1
thumbzoomRulandFSR12-3-3-SS117.51In StockRuland0.1303117.5 @ 1
thumbzoomsustainablesupply.comC1645129119.341In StockRuland Manufacturing0.09119.34 @ 1
Grainger30UW90136.51In Stock15RULAND MANUFACTURING136.5 @ 1
thumbzoomDigi-Key13600003160.35110Ruland Manufacturing160.35 @ 1
thumbzoomRaptor SuppliesAF9UXP198.72069751In StockRULAND MANUFACTURING198.7206975 @ 1
