Schneider Electric XB4BT842

B011OLLCMI

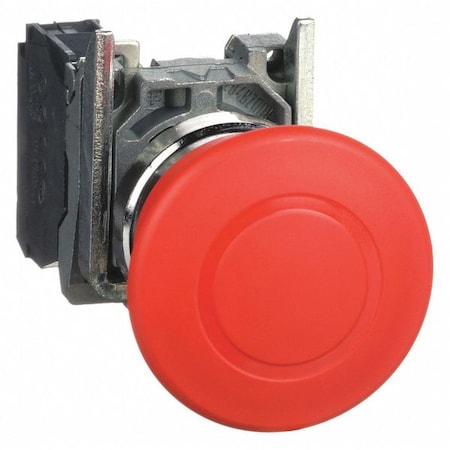

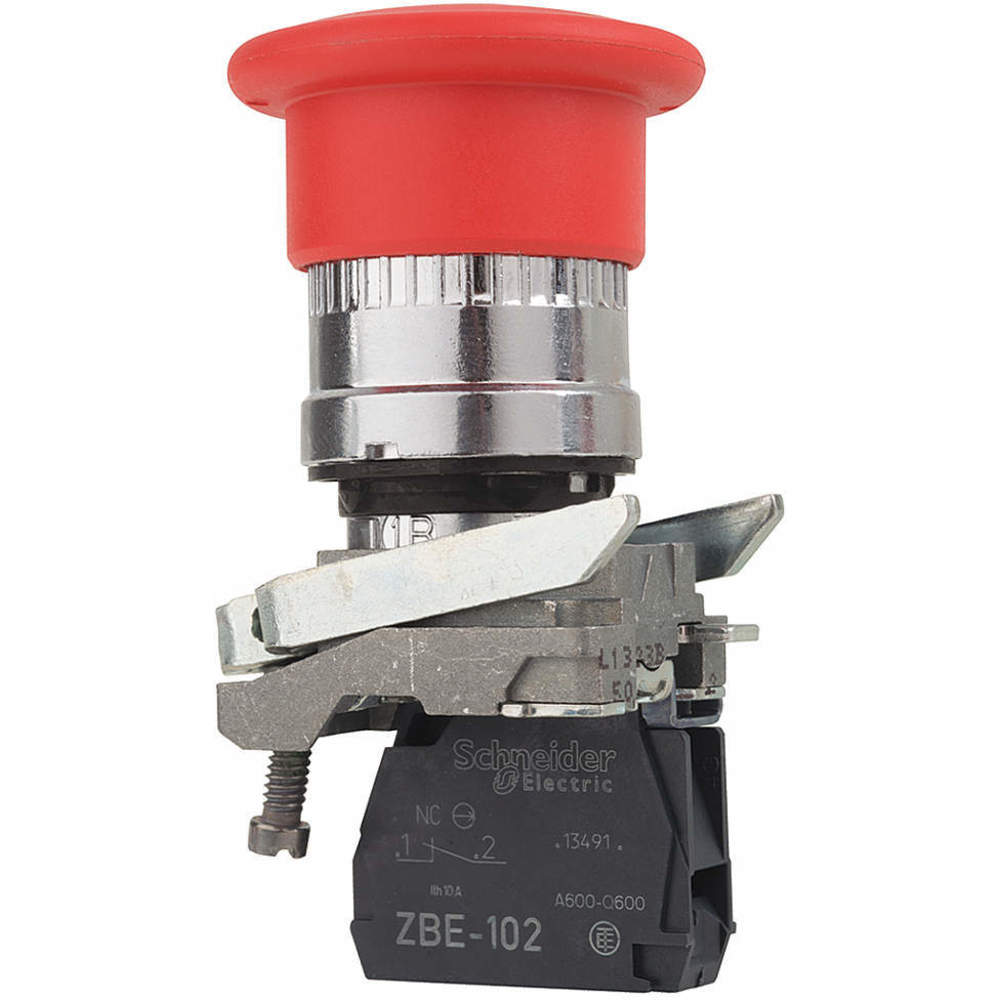

Schneider Electric Emergency Stop Push Button, Red

Schneider Electric Emergency Stop Push Button, Redzoom

Attributes

Key Value
[Ie] Rated Operational .3 A 240 V, AC-15, A600 .
[Ith] Conventional Free.10 A EN/IEC 60947-5-1
[Ui] Rated Insulation V.600 V 3)EN 60947-1
[Uimp] Rated Impulse Wi.6 kV EN 60947-1
ActionMaintained Push / Maint.
Actuator TypeMushroom 40mm
Ambient Air Temperature.-40-70 ?C
Ambient Air Temperature.-40-70 ?C
ApplicationXB4
ApprovalsBV, CSA, GL, RINA, UL
Basic MaterialMetal
BezelChrome Plated Zinc Die .
Bezel Materialchromium plated metal
BrandSchneider Electric
California Proposition .Di-isodecyl phthalate (.
Catalog NumberXB4BT842
CategorySwitches
China Rohs RegulationX
CircuitSPST-NC
Circularity ProfileENVEOLI2201004EN
ColorRed
Color FamilyRed
ConnectionScrew clamp terminals,
Contact Configuration1 NC
Contact Form1 NC, 1NC
Contact Operationslow-break
Contact Rating10A @ 600V AC, slow-bre.
Contacts1NC
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Country of OriginCzech Republic, CZ - Cz.
Current Rating10 A
Current Rating (Amps)6A (AC), 550mA (DC)
Current Stock397
Depth82 mm
DescriptionTRIGGER ACTIONPUSH PULL.
Device Presentationcomplete product
Device Short NameXB4
Digi-Key Part Number4008-XB4BT842-ND
ECCNEAR99
Electrical Durability1000000 cycles, AC-15, .
Electrical Shock Protec.class I IEC 60536
Environmental ConditionsNEMA 13-NEMA 4X
Environmental DisclosureENVPEP2201004EN
Eu Rohs DirectivePro-active compliance (.
Family NameHarmony XB4 Family
Family SeriesSquare D Switches, Harm.
FeaturesPanel Mounting, -
Finishchromium plated metal
Fixing Collar Materialzamak
Gross Weight0.3 lbs
Head MaterialPlastic
Head Typestandard
Height47 mm
Ik Degree Of ProtectionIK06 IEC 50102
IlluminationRed LED
Illumination Voltage (N.-
Includes-
Ingress ProtectionIP66/IP67/IP69/IP69K - .
International ShippingNo
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 .
IP Rating66
ItemEmergency Stop Push But.
Item NumberXB4BT842
Item Typetrigger action and mech.
Lead TimeExpected to ship in 1-2.
LegendNo legend
Lens/Button ColorRed
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number464552
Manufacturer Product Nu.XB4BT842
Manufacturer Standard L.1 Weeks
MaterialMetal
Mechanical Durability3000000 cycles
Mercury FreeYes
MfrSchneider Electric
Mounting Diameter22 mm
Mounting Hole Size22 mm
Mounting TypePanel Mount, Front
MpnXB4BT842
NEMA Contact Rating Des.A600/Q600
Nema Degree Of Protecti.NEMA 13 || NEMA 4X
NEMA Rating1, 12, 13, 2, 3, 4, 4X,.
Net Weight0.0624 lbs, 0.125 kg
Nominal Mounting Size22 mm
Number of Operators1
Operating Temperature-40-70 A Degrees C, -40.
Operating Travel1.5 mm NC changing elec.
OperationPush-Pull
Operator Profilered mushroom ? 40 mm, u.
Operator Size (mm)40 mm
PackageBox
Panel Cutout DimensionsCircular - 22.00mm Dia
Positive Openingwith EN/IEC 60947-5-1 a.
Product CertificationsDNV || GL || LROS (Lloy.
Product Or Component Ty.emergency stop push-but.
Product SeriesHarmony XB4
Product StatusActive
Protective TreatmentTH
Range Of ProductHarmony XB4
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
ResetPush-Pull
Reset OperationPull
Resistance To High Pres.7000000 Pa 55 ?C 0.1 m
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.1
SeriesHarmony XB4, Harmony XB.
ShapeRound;Red mushroom ? 40.
Shape Of Screw Headcross Philips no 1 || c.
Shape Of Signaling Unit.round
Shock Resistance30 gn 18 ms) half sine .
Short-Circuit Protection10 A cartridge fuse gG .
Size3.23, 22 mm
SKUZO-G8581431
Special FeaturesIP67-IP66 CONFORMING TO.
Standard30 GN 18 MS) HALF SINE .
StandardsEN/IEC 60947-5-1 || EN/.
Sub BrandXB4
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Switch FunctionOn-Off
Terminal ConnectionScrew Clamp
Terminal TypeScrew
Terminals Description I.(21-22)NC
TerminationScrew Clamp
Termination StyleScrew Terminal
Tightening Torque0.8-1.2 N.m EN 60947-1
Toxic Heavy Metal FreeYes
Type Of Operatortrigger action and mech.
Type of Operator40mm Mushroom Head
UNSPSC39121534
UPC785901978848
UPC Code785901978848
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Voltage Rating24 V
Voltage Rating - AC120 V
Voltage Rating - DC125 V
WeeeThe product must be dis.
Width40 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEXB4BT84234.1716SCHNEIDER ELECTRIC34.17 @ 1
RS Delivers795-131841.82166Schneider Electric41.82 @ 1
thumbzoomkempstoncontrols.co.ukXB4BT84242.07940116Schneider42.079401 @ 1
Graybar2564066950.0752141Square D (Schneider Electric)50.0752 @ 1
thumbzoommostelectric.comXB4BT84252.791In StockSQUARE D/TELEMECANIQUE52.79 @ 1
thumbzoomDigi-Key1717777863.651In StockSchneider Electric63.65 @ 1
thumbzoomZoroG858143165.091505Schneider Electric0.2565.09 @ 1
thumbzoomblackhawksupply.comXB4BT84270.411In StockSquare D70.41 @ 1
thumbzoomGalcoXB4BT842-SQD72.9811Square D0.372.98 @ 1
us.rs-online.com7060485874.081In StockSchneider Electric74.08 @ 1
thumbzoomsimsupply.comZO-G858143177.141397Schneider Electric77.14 @ 1
thumbzoommayerelectric.comSQDXB4BT84277.381In StockSQUARE D0.27577.38 @ 1
thumbzoomRadwellXB4BT84280.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE80.0 @ 1
AmazonTPB0137HPFPW87.491In Stock5Schneider Electric / Square D87.49 @ 1
thumbzoomcrescentelectric.com19906192.671In StockSchneider Electric92.67 @ 1
thumbzoomNewark68X100995.221In StockSCHNEIDER ELECTRIC95.22 @ 1
thumbzoomNational Supply Network4826026997.561In StockSchneider Electric97.56 @ 1
thumbzoommidwestapplianceparts.comXB4BT842-SQ-P98.21In StockSquared98.2 @ 1
thumbzoomsustainablesupply.comC1190287105.591In StockSchneider Electric0.25105.59 @ 1
thumbzoomRaptor SuppliesAG3FDW120.77436151In StockSCHNEIDER ELECTRIC120.7743615 @ 1
