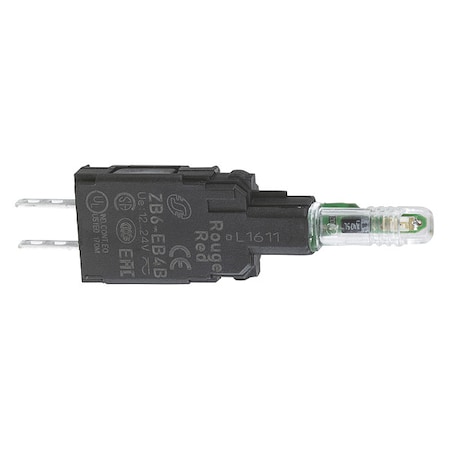

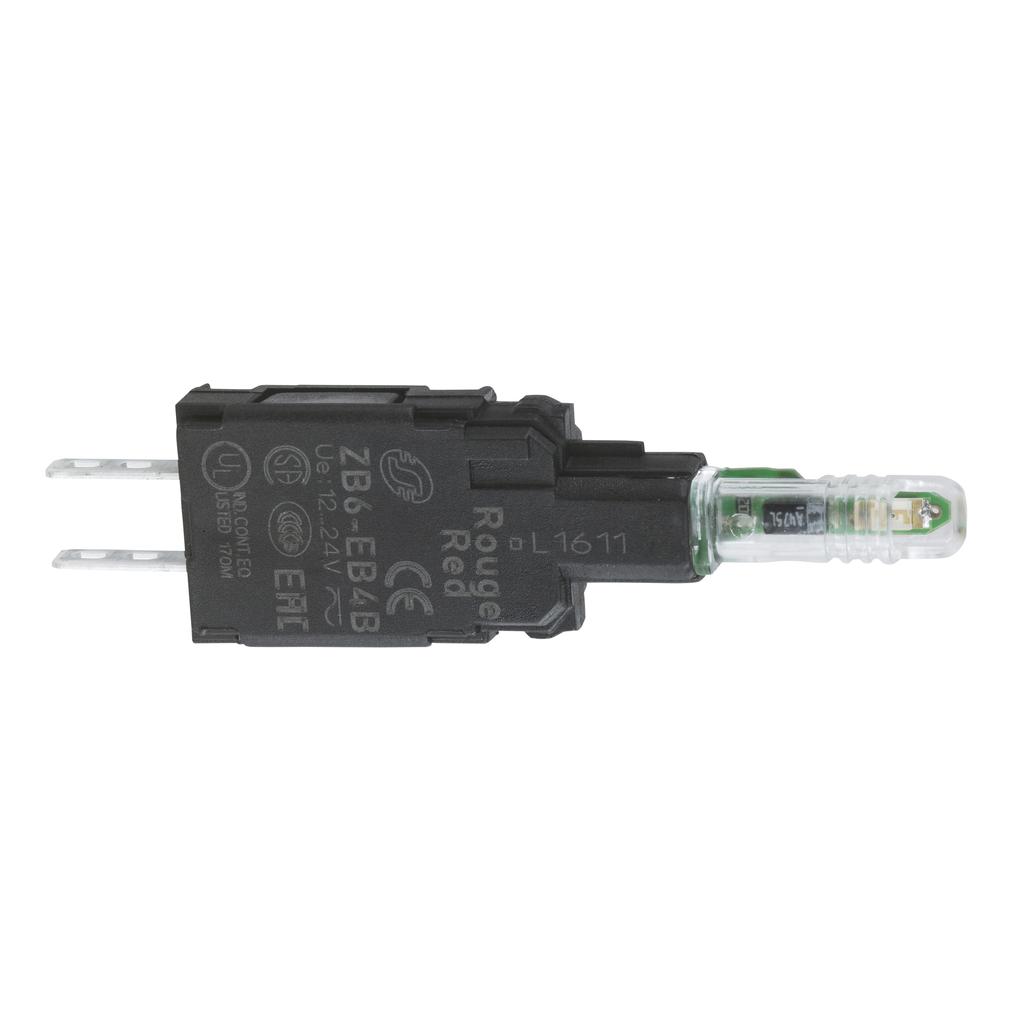

Square D ZB6EG3B

B00CONA7NG

Square D Zb6Eg3B 16Mm Lt Mod

Square D Zb6Eg3B 16Mm Lt Modzoom

Attributes

Key Value
[Ui] Rated Insulation V.250 V 3)EN/IEC 60947-1
[Uimp] Rated Impulse Wi.4 kV EN 60947-1
[Us] Rated Supply Volta.48...120 V AC
Alternate Part No.996-ZB6EG3B
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
BrandSCHNEIDER ELECTRIC
Bulb Baseintegral LED
Cad Overall Depth58 mm
Cad Overall Height14 mm
California Proposition .Lead and lead compounds.
Catalog NumberZB6EG3B
CategoryOptoelectronics
China Rohs RegulationX
Circularity ProfileENVEOLI1710010EN
Colorgreen
ConnectionFaston connectors 2.8 x.
Connections - TerminalsFaston connectors 2.8 x.
Contact Form(X1-X2)PL
Country of OriginMexico
Current-
DescriptionCOMPLETE BODY FOR PILOT.
Detailed DescriptionLED Panel Indicator Gre.
Device Short NameZB6
Digi-Key Part Number4008-ZB6EG3B-ND
Electrical Shock Protec.class II IEC 61140
Electromagnetic Emissionclass B IEC 55011
Environmental DisclosureENVPEP1710010EN
Eu Rohs DirectivePro-active compliance (.
Features-
For Use WithXB6 Series
Gross Weight0 lbs
IlluminationLED
IndicatorLED,GREEN,INTEGRAL LED
Ingress Protection-
Insulation250 V 3)EN/IEC 60947-1
IP RatingIP65
Item16Mm Protected Led 4812.
Item Typecomplete body for pilot.
Lamp Colorgreen
Lamp Module TypeFull Voltage
Lamp Module Voltage40 to 132V AC
Lamp TypeLED
Lamp Voltage48 to 120V AC
Leadsconnectors
LED colourgreen
Lens Color-
Lens Size-
Lens StyleRound with Flat Top
Lens Transparency-
Light Block Supplydirect
Light SourceLED
Light Source Colourgreen
Made in USANo
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Part No.ZB6EG3B
Manufacturer Product Nu.ZB6EG3B
Manufacturer seriesHarmony XB6
Manufacturer Standard L.4 Weeks
Mercury FreeYes
MfrSCHNEIDER ELECTRIC
Millicandela Rating-
Mountingfront
Mounting Hole Size16
Net Weight0.003 kg
Operating Positionany position
Operating temperature-40...70?C
Operating Temperature-25-70 A Degrees C
Operating Voltage120 V
PackageBox
Package Quantity1
Panel Cutout Dimensions-
Panel Cutout Shape-
ProductIndicators
Product CategoryIndustrial Panel Mount .
Product CertificationsUL || GOST || CSA || CCC
Product Or Component Ty.complete body for pilot.
Product StatusActive
Product Type16Mm Protected Led 4812.
Protective TreatmentTC
Range Of ProductHarmony XB6
RatingsAC
Reach RegulationReference contains Subs.
Resistance To Electroma.10 V/m IEC 61000-4-3
Resistance To Electrost.6 kV on contact (on met.
Resistance To Fast Tran.2 kV IEC 61000-4-4
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.5
SeriesHarmony ZB6, Harmony XB.
Shock Resistance30 gn 18 ms) half sine .
Signalling Typesteady
Size14 mm, 14 MM,58 MM
Special Featurescomplete body for pilot.
Standard+/- 3 MM 2-500 HZ)IEC 6.
StandardsJIS C 4520 || EN/IEC 60.
Sub BrandZB6
Supply Voltage48-120 VAC
Supply Voltage Limits40-132 V AC
Surge Withstand1 kV in contact IEC 610.
Sustainable Offer StatusGreen Premium product
Switch standard16mm
Terminal ConnectionFaston Connector
Terminals Description I.(X1-X2)PL
Termination StyleQuick Connect - 0.110" .
TypeSteady Signal, LED
Type of switch accessor.illuminating unit
UPC785901430476
UPC Code785901430476
Vibration Resistance+/- 3 mm 2-500 Hz)IEC 6.
Viewing Angle-
Voltage48V ~ 120V, 48 to 120V .
Voltage Rating120 V, 48...120 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wavelength - Peak-
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com22008658.41In StockSchneider Electric8.4 @ 1
thumbzoommayerelectric.comSQDZB6EG3B8.451In StockSQUARE D0.00668.45 @ 1
thumbzoomgordonelectricsupply.comZB6EG3B8.491In Stock10SQUARE D8.49 @ 1
steinerelectric.com57050510.551In StockSquare D?10.55 @ 1
us.rs-online.com7033763213.7212Schneider Electric13.72 @ 1
thumbzoomGalcoZB6EG3B-SQD13.871In StockSquare D13.87 @ 1
thumbzoomZoroG312539813.891In StockSchneider Electric0.0113.89 @ 1
thumbzoommostelectric.comZB6EG3B15.991In StockSQUARE D/TELEMECANIQUE15.99 @ 1
thumbzoomkempstoncontrols.co.ukZB6EG3B17.95581451In StockSchneider17.9558145 @ 1
RS Delivers401-36518.165615Schneider Electric18.1656 @ 1
Future Electronics502843918.2165In StockSchneider Electric18.216 @ 5
thumbzoomTMEZB6EG3B20.91In StockSCHNEIDER ELECTRIC20.9 @ 1
thumbzoomDigi-Key1661294521.191In StockSchneider Electric21.19 @ 1
thumbzoomblackhawksupply.comZB6EG3B22.181In StockSquare D22.18 @ 1
thumbzoomNewark13M361423.141In StockSCHNEIDER ELECTRIC23.14 @ 1
thumbzoomcrescentelectric.com14113825.611In StockSchneider Electric25.61 @ 1
thumbzoomNational Supply Network6967502331.751In StockSchneider Electric31.75 @ 1
swatee.comZB6EG3B43.0112Schneider Electric43.01 @ 1
industrialrefrigerationparts.comZB6EG3B159.091In StockSchneider Electric159.09 @ 1
