- mpnSDN20-24-480CC
- brandname: Sola/Hevi-Duty
- manufacturername: Sola/Hevi-Duty

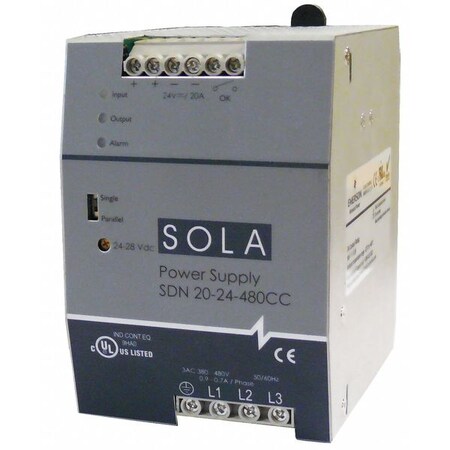

Sola/Hevi-Duty SDN20-24-480CC DC Power Supply, 24 VDC, 20 Amp, 47-63 Hz
- Brand: SOLA-HD
- PartNumber: SDN20-24-480CC
- Model: SOLSDN2024480CC
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Sola/Hevi-Duty
- Label: Sola/Hevi-Duty
Attributes
| Key | Value |
|---|
| Alternate Part No. | 663-SDN20-24-480CC |
| Brand | Sola / Hevi-Duty |
| Case Material | Metal Case |
| Commercial/Medical | Commercial |
| Configuration | Enclosed |
| Country of Origin (subj. | Philippines |
| Depth | 4.98" (127mm), 4.68" |
| Dimensions | 118.8 mm L x 85 mm W |
| Features | Compact Packaging To Sa. |
| Frequency | 47-63 Hz |
| Height | 4.85", 4.85" (123.2mm) |
| Hold Up Time | Greater Than 28 msec |
| Hz | 47 to 63 |
| In-stock | 12 |
| Input Type | 3-Phase / Three Phase |
| Input Voltage | 380 to 480VAC, 380 VAC . |
| Input Voltage Range | 320-540 VAC 3Ph |
| Item | Dc Power Supply |
| Manufacturer | Sola/Hevi-Duty |
| Manufacturer Part No. | SDN20-24-480CC |
| Maximum Operating Tempe. | +60 ?C |
| Minimum Operating Tempe. | -40 ?C |
| Mounting | Din Rail |
| Mounting Style | DIN Rail, Panel, Din Ra. |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 Output, 1 |
| Open Frame/Enclosed | Enclosed |
| Operating Temp. Range | -25 Degrees to 60 Degr. |
| Operation | PFC |
| Output Amps | 20 |
| Output Current | 20 A |
| Output Current (Channel. | 20 A |
| Output Current-Channel 1 | 20 A |
| Output Noise | Less Than 100mV |
| Output Power | 480 W |
| Output Power Rating | 480 W |
| Output Voltage | 24VDC, 24 VDC |
| Output Voltage (Channel. | 24 V |
| Output Voltage-Channel 1 | 24 V |
| Peak Amps | 25 |
| Phase - Electrical | 3 |
| Power Rating | 480W |
| Primary Type | AC-DC |
| Product | Linear Supplies |
| Product Categories | Power Supplies |
| Product Category | DIN Rail Power Supplies |
| RoHs Status | Rohs |
| Series | SDN-C Series, SDN-C |
| Special Features | Parallelable ; DC OK Si. |
| Standards | cUL us E61379, cRUus E1. |
| Status Indicator | Green/Yellow/Red LED |
| Style | Switching |
| Type | Industrial |
| Width | 3.35", 3.35" (85.1mm) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hawk Electronics | SDN2024480CC | 403.5 | 1 | In Stock | | Sola HD | | 403.5 @ 1 |
 | Zoro | G4141557 | 456.03 | 1 | In Stock | 26 | Sola/Hevi-Duty | | 456.03 @ 1 |
| Onlinecomponents.com | SDN20-24-480CC | 504.41 | 1 | 2 | | SOLA | | 504.41 @ 1 |
| us.rs-online.com | 70211531 | 508.1 | 1 | In Stock | | SolaHD | | 508.1 @ 1 |
 | MRO Supply | 1238703 | 543.6 | 1 | In Stock | 9 | SolaHD | | 543.6 @ 1 |
 | Carlton Bates Company | 78347200454 | 560.45 | 1 | In Stock | | SOLAHD | | 560.45 @ 1 |
| kirbyrisk.com | 2402193 | 560.45 | 1 | In Stock | | Solahd | | 560.45 @ 1 |
 | swatee.com | SDN20-24-480CC | 905.17 | 1 | 2 | | Sola/Hevi-Duty | | 905.17 @ 1 |
