Schneider Electric HDA260201

B00CONIYJA

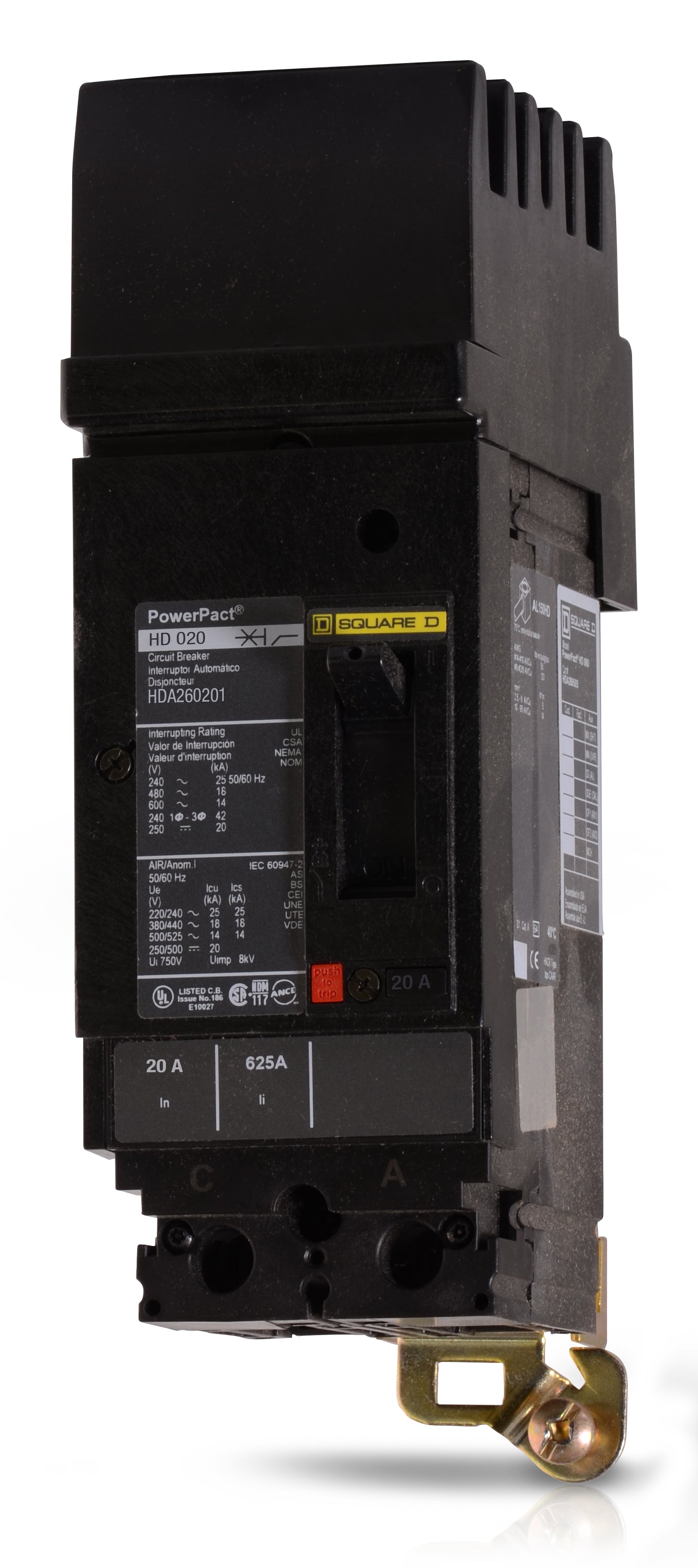

SCHNEIDER ELECTRIC 600-VOLT 20-AMP HDA260201 Molded CASE Circuit Breaker 600V 20A

SCHNEIDER ELECTRIC 600-VOLT 20-AMP HDA260201 Molded CASE Circuit Breaker 600V 20Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating690V AC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage20
Amperage Rating20
Amps20 A
ApplicationHACR rated Applications.
ApprovalsCE, CSA, IEC, UL
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDA260201
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206027EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConditionNew
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States, US - Uni.
Current Rating20-20A
Depth86 mm
Device Applicationdistribution
DisplayHDA260201 Circuit break.
ECCNEAR99
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
Family SeriesSquare D Circuit Breake.
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Frame TypeH
FunctionsLI - Long-Time and Inst.
Gross Weight1 lb
Gtin785901418993
Height163 mm, 3 in.
High Amp Trip Setting750 A
Interrupt Rating14 kA, 25 kA at 220/240.
Interrupting Rating25kAIC at 240VAC, 18kAI.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Item NumberHDA260201
Item Typecircuit breaker
Length16 mm, 4.8 IN
Line Rated Current20-20 A
Local Signallingswitched off (OFF) 1 tr.
Made in USAYes
Magnetic Hold Current350 A
Magnetic Tripping Curre.750-750 A
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberHDA260201
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting TypeI-Line
MpnHDA260201
Net Weight2.2 kg, 0 lbs
Network Frequency50/60 Hz
No. of Poles2
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionAB
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesPowerPact, HDA
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Terminals IncludedLine and Load
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range20 A,350 A,750 A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
UNSPSC39121616
Upc785901418993
UPC785901418993
Utilisation Categorycategory A
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width104 mm
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comHDA260201515.01In Stock10SQUARE D515.0 @ 1
thumbzoommayerelectric.comSQDHDA260201532.251In StockSQUARE D4.84532.25 @ 1
thumbzoomblackhawksupply.comHDA260201557.211In StockSquare D557.21 @ 1
thumbzoomRadwellHDA260201560.012SCHNEIDER ELECTRIC SQUARE D560.0 @ 1
simplybreakers.comHDA260201583.991In StockSchneider Electric583.99 @ 1
Newark19K9953588.741In StockSQUARE D BY SCHNEIDER ELECTRIC588.74 @ 1
thumbzoomindustrialrefrigerationparts.comHDA260201592.871In StockSquare D2.0592.87 @ 1
thumbzoomZoroG3979373598.991In StockSquare D10.0598.99 @ 1
thumbzoomGalcoHDA260201-SQD634.091In StockSquare D1.0634.09 @ 1
Graybar25148185667.08321In StockSquare D (Schneider Electric)667.0832 @ 1
thumbzoommidwestapplianceparts.comHDA260201-SQ-P726.551In StockSquared726.55 @ 1
thumbzoomsuperbreakers.comHDA260201957.2815Square D957.28 @ 1
thumbzoomcrescentelectric.com1317871749.711In StockSquare D by Schneider Electric1749.71 @ 1
