Schneider Electric HDA260204

B00CONIOSG

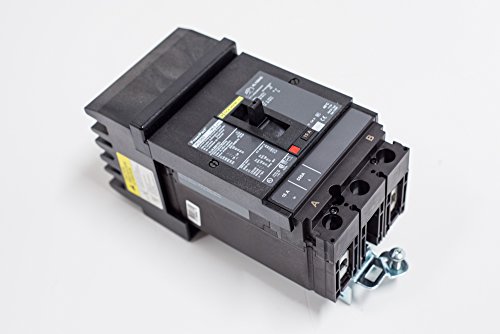

SCHNEIDER ELECTRIC 600-VOLT 20-AMP HDA260204 Molded CASE Circuit Breaker 600V 20A

SCHNEIDER ELECTRIC 600-VOLT 20-AMP HDA260204 Molded CASE Circuit Breaker 600V 20Azoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating690V AC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage20
Amperage Rating20
Amps20 A
ApplicationHACR rated Applications.
ApprovalCSA, UL, CE, IEC
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDA260204
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI1311006EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginUnited States, US - Uni.
Current Rating20-20A, 20 A
Depth86 mm
Device Applicationdistribution
DisplayHDA260204 Circuit break.
ECCNEAR99
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP1311006EN
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
FeaturesMercury Free; PVC Free
For Use WithReverse Fed Applications
FrameD
Frame SizeH
Frame TypeH Frame, HAD
FunctionsLI - Long-Time and Inst.
Gtin785901416388
Height163 mm, 3 in., 6.42
Height (in)9.73
High Amp Trip Setting750 A
Interrupt Rating14 kA, 25kA@240VAC ; 18.
Interrupting Rating25 kA 240 V AC, 18 kA 4.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Item Typecircuit breaker
Length16 mm, 4.8 IN
Length (in)4.8
Line Rated Current20-20 A
Local Signallingswitched off (OFF) 1 tr.
Made in USAYes
Magnetic Hold Current350 A
Magnetic Tripping Curre.750-750 A
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting TypeI-Line
MpnHDA260204
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2-Pole
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionBC
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesPowerPact, PowerPact H-.
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Temperature Rating104 ?F (40 ?C)
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range20 A,350 A,750 A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic
UNSPSC39121616
Upc785901416388
UPC785901416388
UPC Code785901416388
Utilisation Categorycategory A
Voltage600
Voltage Rating250 V DC-600 V AC, 600 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width4.09, 104 mm, 104 in.
Width (in)2.94
Wire GaugeAWG 14, AWG 3/0 Alumini.
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00CONIOSG360.421In Stock1SCHNEIDER ELECTRIC360.42 @ 1
thumbzoomgordonelectricsupply.comHDA260204515.01In Stock10SQUARE D515.0 @ 1
thumbzoommayerelectric.comSQDHDA260204532.251In StockSQUARE D4.84532.25 @ 1
thumbzoomZoroG3980143584.661In Stock25Square D10.0584.66 @ 1
Newark19K9955649.031In StockSQUARE D BY SCHNEIDER ELECTRIC649.03 @ 1
thumbzoomsuperbreakers.comHDA260204957.2813Square D957.28 @ 1
us.rs-online.com70952855987.341In StockSquare D987.34 @ 1
Graybar251488651353.69921In StockSquare D (Schneider Electric)1353.6992 @ 1
thumbzoomcrescentelectric.com2860451749.711In StockSquare D by Schneider Electric1749.71 @ 1
simplybreakers.comHDA2602041766.991In StockSchneider Electric1766.99 @ 1
