HDA261502

mpnHDA261502
brandname: Square D
manufacturername: Square D

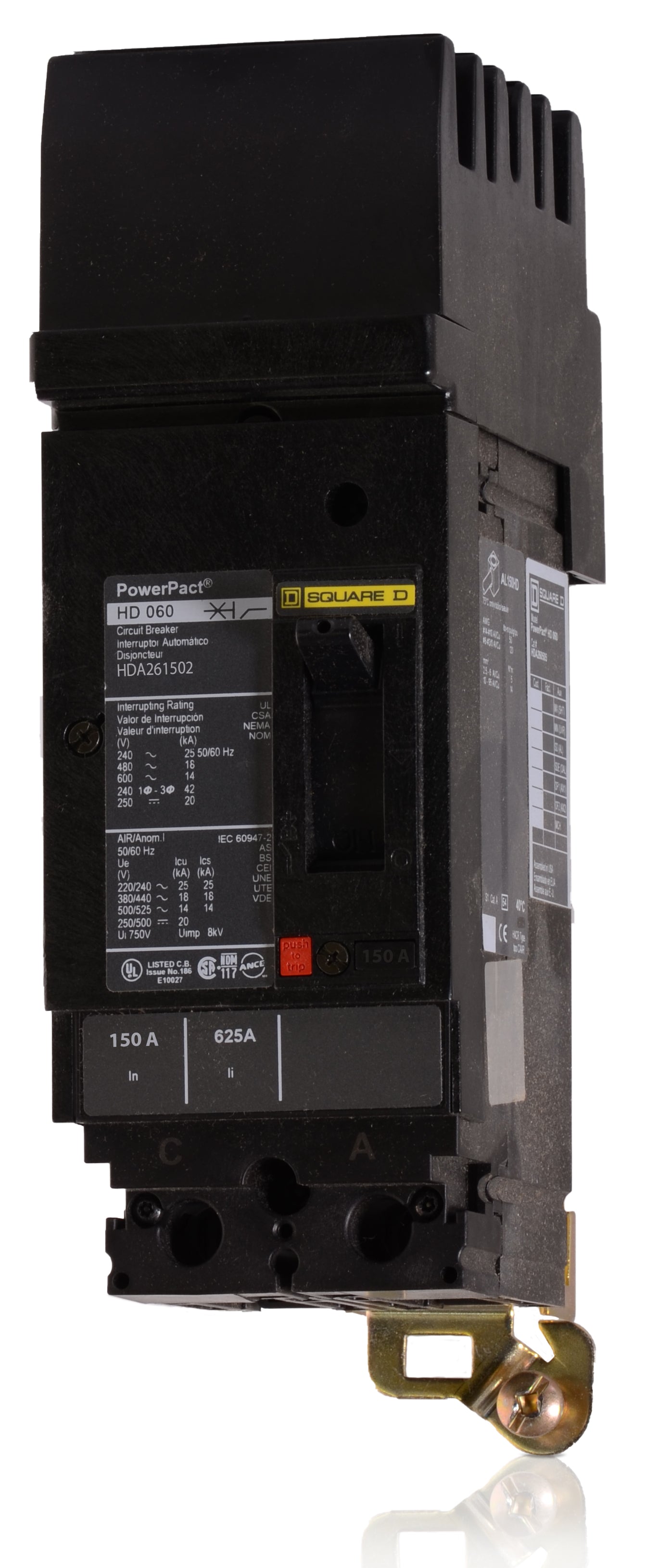

Square D I-Line HDA261502 HD 150 Amp PowerPact Circuit Breaker HD150 150A HACR

Square D I-Line HDA261502 HD 150 Amp PowerPact Circuit Breaker HD150 150A HACR

zoom

PartNumber: HDA261502
PackageQuantity: 1
Manufacturer: Square D I-Line
Label: Square D I-Line

Attributes

Key	Value
AC Voltage Rating	690V AC
Amperage	150
Amperage Rating	150
Amps	150 A
Application	HACR rated Applications.
Approval	UL
AWG Range	AWG 14...AWG 3/0 alumin.
Brand	Square D, Square D by S.
Catalog Number	HDA261502
Circuit Breaker Actuator	toggle
Circuit Breaker Mountin.	I-Line Bracket
Color	Black
Color Family	Black
Connection	AWG 14...AWG 3/0 ALUMIN.
Connection Type	I-Line Style Plug-In
Contactor Type	Magnetic
Country of Origin	United States, US - Uni.
Current Rating	150-150A
Depth	86 mm
Display	HDA261502 Circuit break.
ECCN	EAR99
Features	Mercury Free; PVC Free
Frame	D
Frame Size	H
Frame Type	H
Functions	LI - Long-Time and Inst.
Gtin	785901754459
Height	163 mm, 3 in., 6.42
High Amp Trip Setting	1700 A
Interrupt Rating	14kA, 25 kA at 220/240V.
Interrupting Rating	18kAIC at 480V
Item	Circuit breaker,PowerPa.
Item Type	CIRCUIT BREAKER
Length	16 mm, 4.8 IN
Made in USA	Yes
Manufacturer	Schneider Electric
Max. AIR Rating	25 kA
Max. Wire Size	3/0 AWG (Cu/Al)
Min. Wire Size	14 AWG (Cu/Al)
Mounting Type	I-Line
Mpn	HDA261502
No. of Poles	2
Number of Poles	2
Operating Temperature	40 A Degrees C
Phase	1
Phase Connection	AC
Poles	2
Protection	Thermal Magnetic
Rated Voltage	690V AC 50/60 Hz IEC 60.
Series	HDA
Special Features	I-Line
Standard	UL \|\| CSA \|\| NEMA \|\| NO.
Standards	UL, CSA, NEMA, NOM, CE
Sub Brand	POWERPACT
Terminal Connection	I-Line, Lug
Torque	5-5 N.m 2.5-6 mm? (AWG .
Trip Range	150 A,1700 A,900 A
Trip Type	THERMAL-MAGNETIC, Therm.
UNSPSC	39121616
UPC	785901754459
Upc	785901754459
Voltage	600
Voltage Rating	250 V DC-600 V AC
Warranty Description	Contractual Warranty:18.
Width	104 mm, 4.09

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Raptor Supplies	AG8NZZ	1.4860755	1	67		SQUARE D		1.4860755 @ 1
	simplybreakers.com	HDA261502	935.99	1	In Stock		Schneider Electric		935.99 @ 1
	superbreakers.com	HDA261502	1307.45	1	10		Square D		1307.45 @ 1
	Zoro	G3979568	1427.5	1	67	10	Square D	2.2	1427.5 @ 1
	Newark	19K9999	1480.74	1	In Stock		SQUARE D BY SCHNEIDER ELECTRIC		1480.74 @ 1
	Graybar	25147100	1547.5376	1	In Stock		Square D (Schneider Electric)		1547.5376 @ 1
	crescentelectric.com	35035	4272.14	1	67		Square D by Schneider Electric		4272.14 @ 1
