Sumida CDRH127/LDNP-5R8NC

B08158PVV5

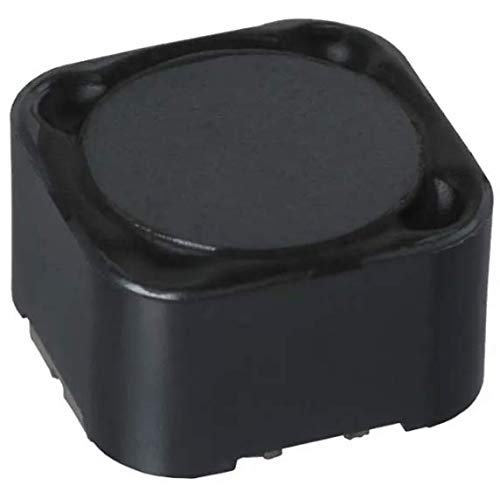

Sumida CDRH127/LDNP-5R8NC Inductor New Lot Quantity-50

Sumida CDRH127/LDNP-5R8NC Inductor New Lot Quantity-50zoom

Attributes

Key Value
Alternate Part No.851-CDRH127LDNP5R8NC
BrandSumida
Case Height8 mm
Case Length12.3 mm
Case Width12.3 mm
CategoryInductors, Coils, Chokes
Current - Saturation (I.-
Current Rating (Amps)8.6 A
DC Resistance (DCR)16.2mOhm Max
Frequency - Self Resona.-
Height - Seated (Max)0.315" (8.00mm)
Inductance5.8 ?H, 5.8 uH
Inductance Frequency - .100 kHz
ManufacturerSumida
Manufacturer Part No.CDRH127/LDNP-5R8NC
Material - CoreFerrite
Maximum DC Current8.6 A
Maximum DC Resistance16.2 mOhms
MfrSumida America Componen.
Mounting TypeSurface Mount
Operating Temperature-40?C ~ 100?C
PackageTape & Reel (TR)
Package / CaseNonstandard
PackagingReel
Part StatusActive
ProductSMD Power Inductors
Product CategoryFixed Inductors
Q @ Freq-
Ratings-
SeriesCDRH127/LD, CDRH
ShieldingShielded
Size / Dimension0.472" L x 0.472" W (12.
Supplier Device Package-
Termination StyleSMD/SMT
Tolerance30 %, ?30%
Type-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key10007930.79239610000126Sumida America Components Inc.0.792396 @ 10000
thumbzoomswatee.comCDRH127/LDNP-5R8NC2.761244Sumida2.76 @ 1
